Product Details
＋

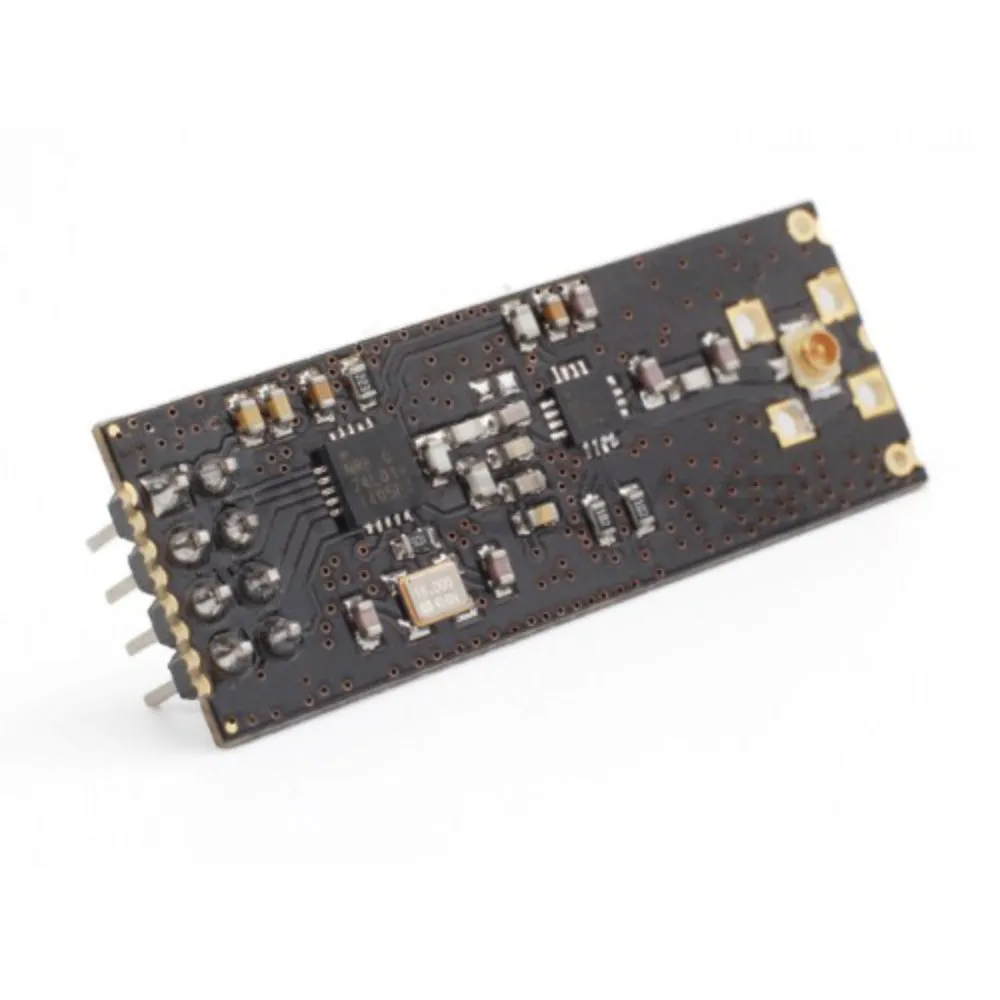

NRF24L01 2.4G Module
The NRF24L01 2.4GHz Wireless Module with Antenna and Soft Serial Feeder is a popular module used for wireless communication and data transmission between devices.Technical Details
- Operates in the 2400MHz ~ 2524MHz ISM radio wave range
- Antenna sensitivity: -95dBm
- Receive 6 channels simultaneously
- Transmission distance: up to 1100m
- Up to 125 channels
- Up to 2Mb upload speed
- Automatic signal transmission and correction
- FM modulation: GMSK
- Power (PA) and low noise (LNA) amplifiers are installed
- Operating current: 45-115mA
- Logic signal voltage: 2.7-3.6V, also supports 5V, making it suitable for Arduino
- Control interface: SPI and others, making it perfect for Arduino
- Operating temperature: -45 - 85 ° C
- Dimensions: only 45.54mm x 16.46mm
- The set includes an FM antenna
Applications :
- Long-Range Wireless Communication: Perfect for applications requiring communication over longer distances than the standard NRF24L01 module, such as remote control systems, wireless sensor networks, and more.
- Wireless Sensor Networks (WSN): Ideal for creating wireless sensor networks in large areas, such as in smart cities, environmental monitoring, and agriculture, where sensors send data wirelessly over large distances.
- IoT (Internet of Things): This can be used in IoT systems where communication needs to cover a larger area, like in smart homes, smart buildings, and industrial automation.
- Robotic Communication: Used for wireless communication between robots, whether they are part of a swarm or a single robot system with multiple communication needs.
Physical Attributes
- Length * Width * Height (mm) : 40 * 15 * 2.5 mm
- Weight (gm) : 18
Package Includes

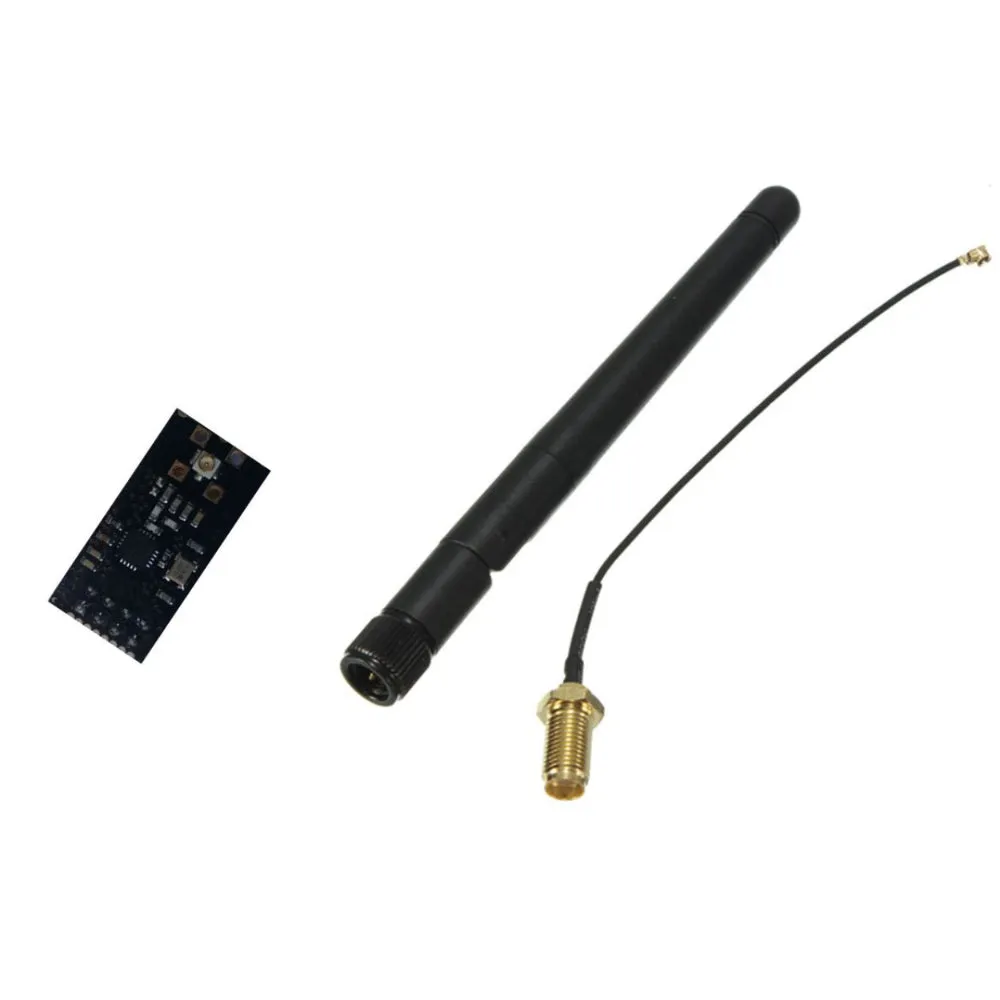

- 1 x NRF24L01 2.4G with SMA antenna & Soft feeder Wireless Module
