Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Connection to Host | Backplane |
| Connection Type | Terminal Strip |
| Depth | 0.197" (5mm) |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| For Use With | SNAP PAC Brain ; R-Series Controllers |
| Input Current | 170 mA |
| Input Type | Analog |
| Length | 3.25" (82.55mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Input |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 8 |
| Number of I/O Ports | 8 |
| Primary Type | Control |
| Series | |
| Special Features | Optical Isolation ; Transformer Isolation |
| Standards | CE Marked, RoHS Compliant, DFARS |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Type | Analog Input |
| Width | 0.72" (18.29mm) |
Overview

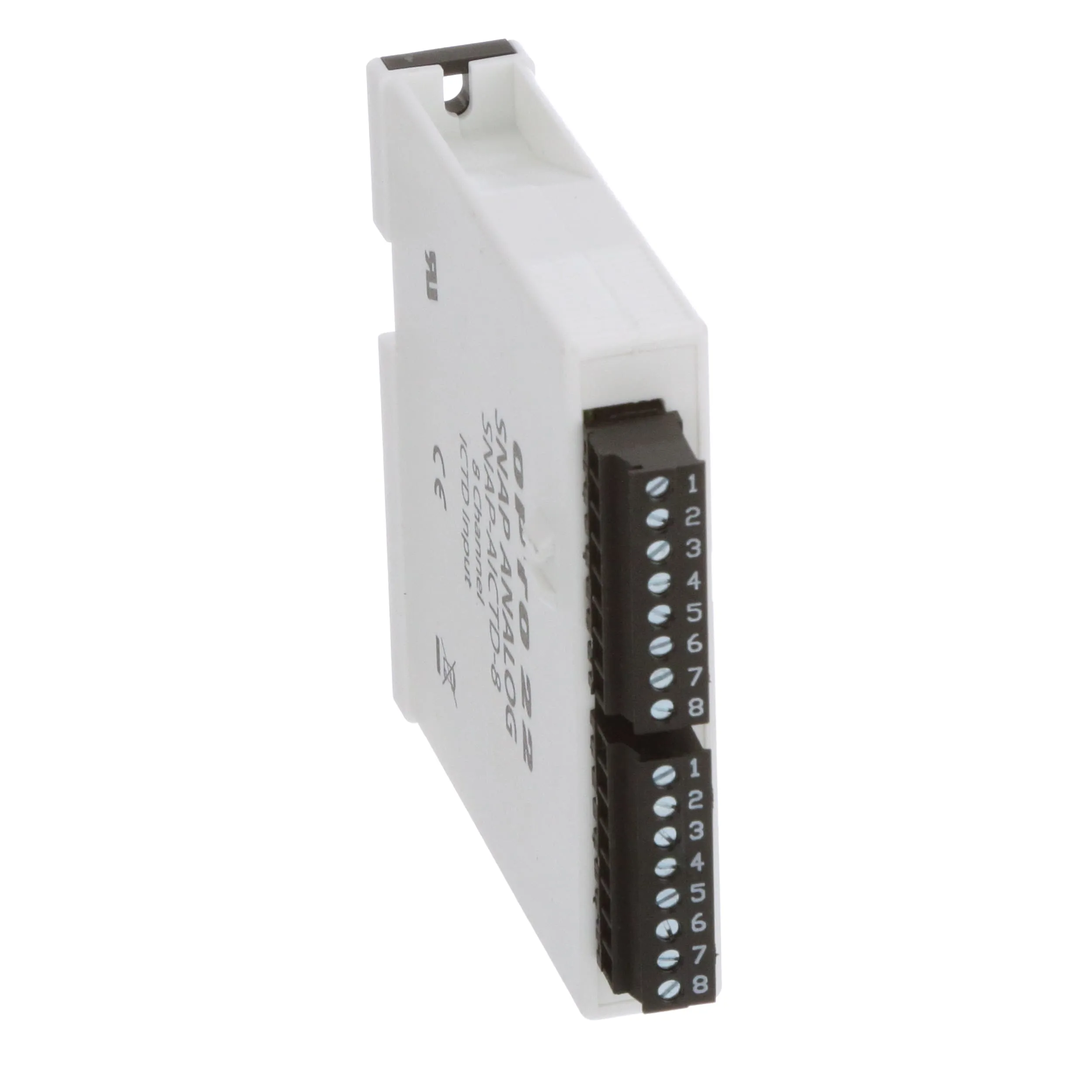

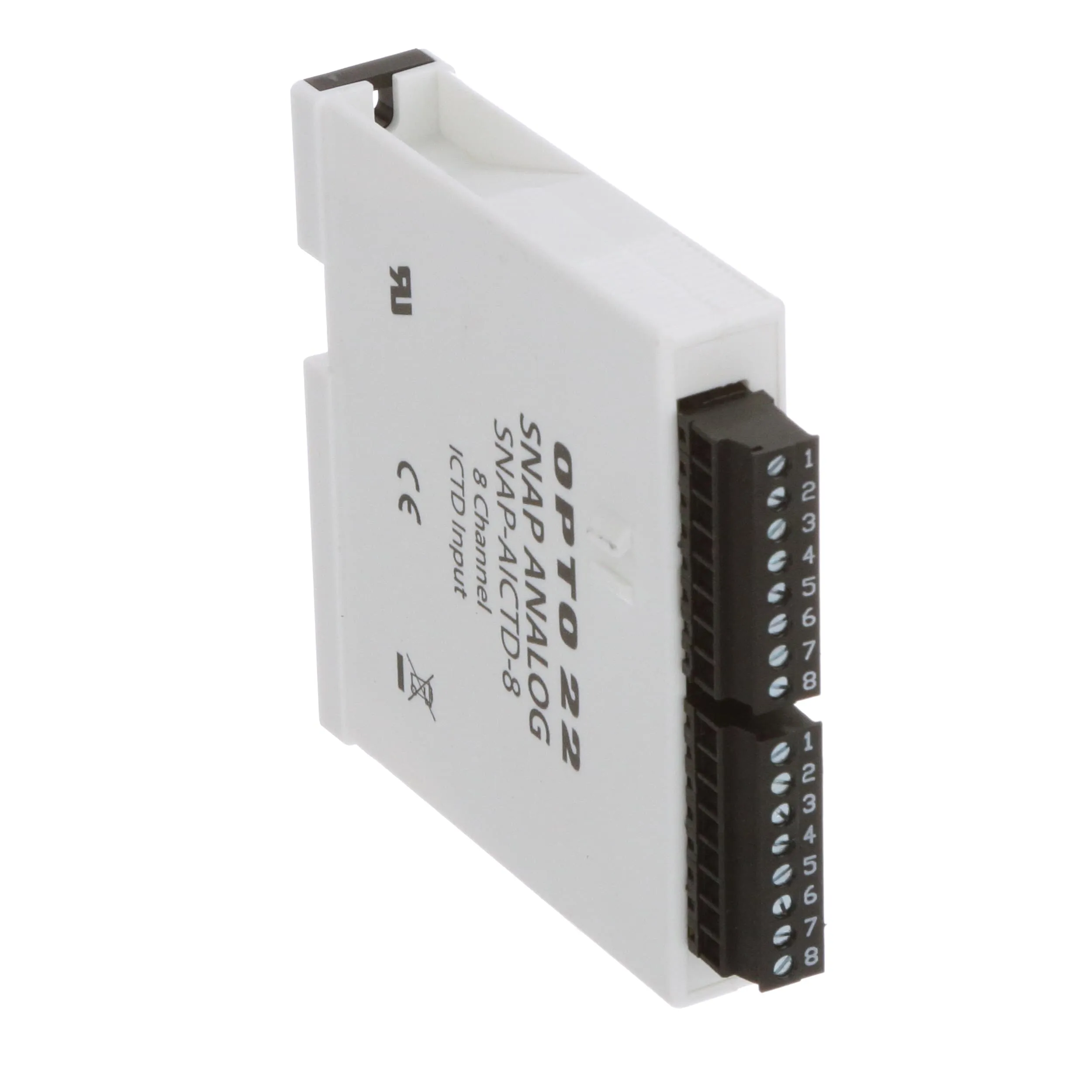

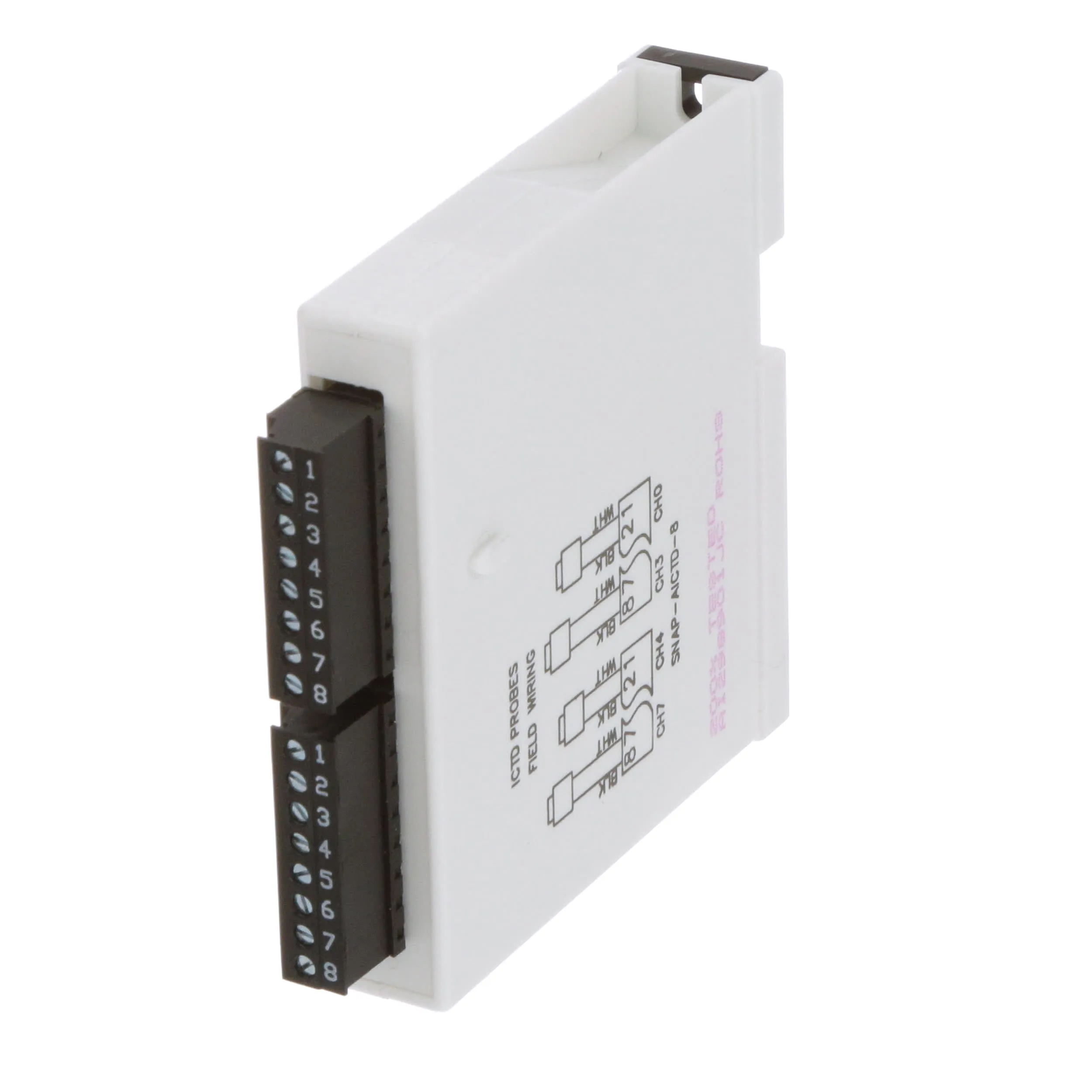

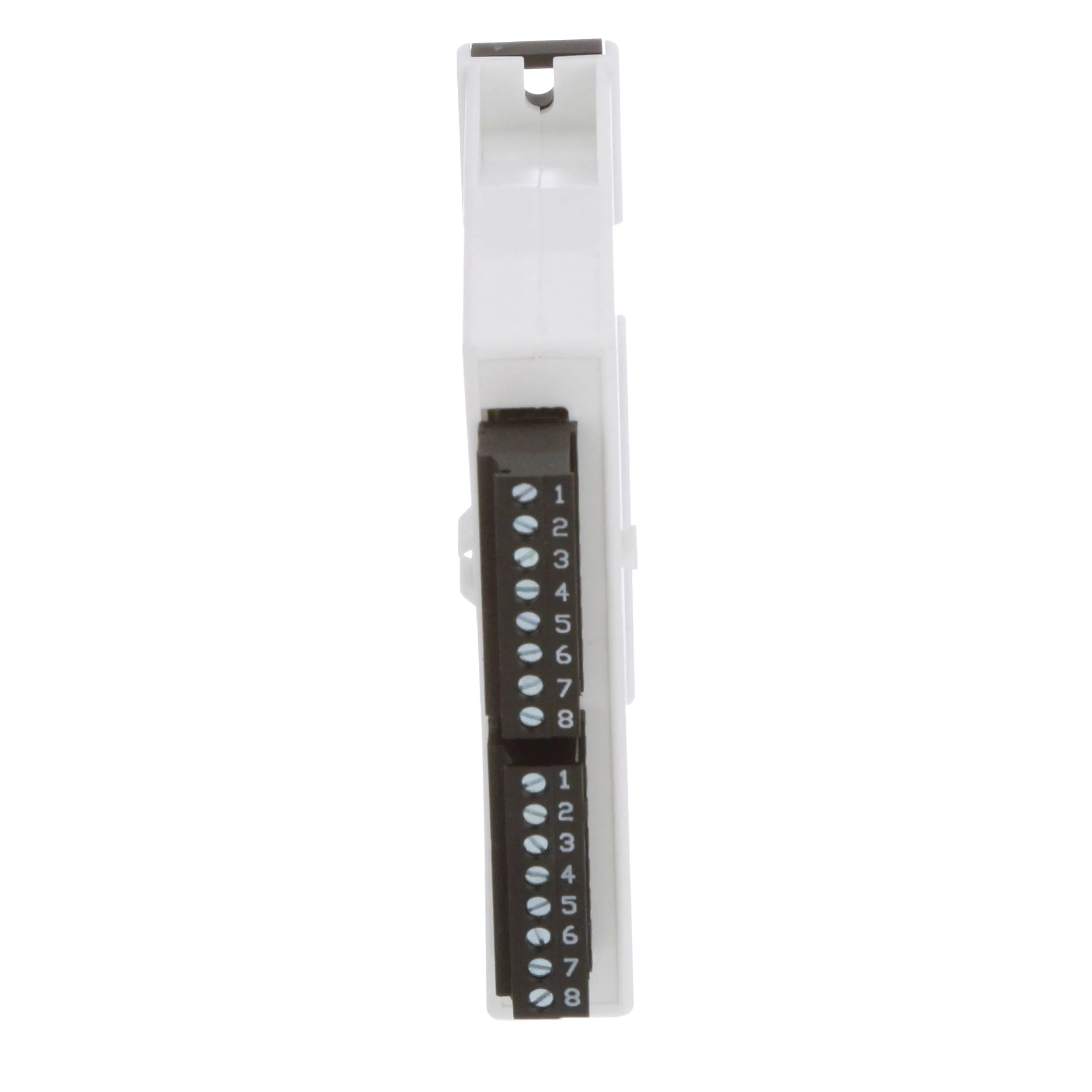

The SNAP-AICTD-8 module provides temperature input data from any industry standard Integrated Circuit Temperature Device (ICTD). It has eight channels of input. The SNAP-AICTD-8 can be used only with SNAP PAC brains and rack-mounted controllers (standard wired and Wired Wireless models).
Features:
