Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPDT |
| Current Rating | 0.2 A |
| Current, Switching | 0.2 A |
| Function | Proximity |
| Height | 0.75" (19.1mm) |
| Length | 1.125" (28.575mm) |
| Measurement Range | 22.86 mm |
| Mounting Type | Flange |
| Operating Temperature | -40 to 105 °C |
| Output | SPDT-CO |
| Power Rating | 3 W |
| Primary Type | Proximity |
| Resistance, Initial | 0.2 Ohms |
| Series | |
| Standards | UL Listed |
| Technology | Reed |
| Termination | Leadwires |
| Type | Reed |
| Voltage Rating | 100 VDC |
| Voltage, Switching | 100 VDC |
| Width | 0.25 |
| Wire Size | 24 AWG |
Overview
CHERRY switches and sensors are now ZF Electronics switches and sensors.

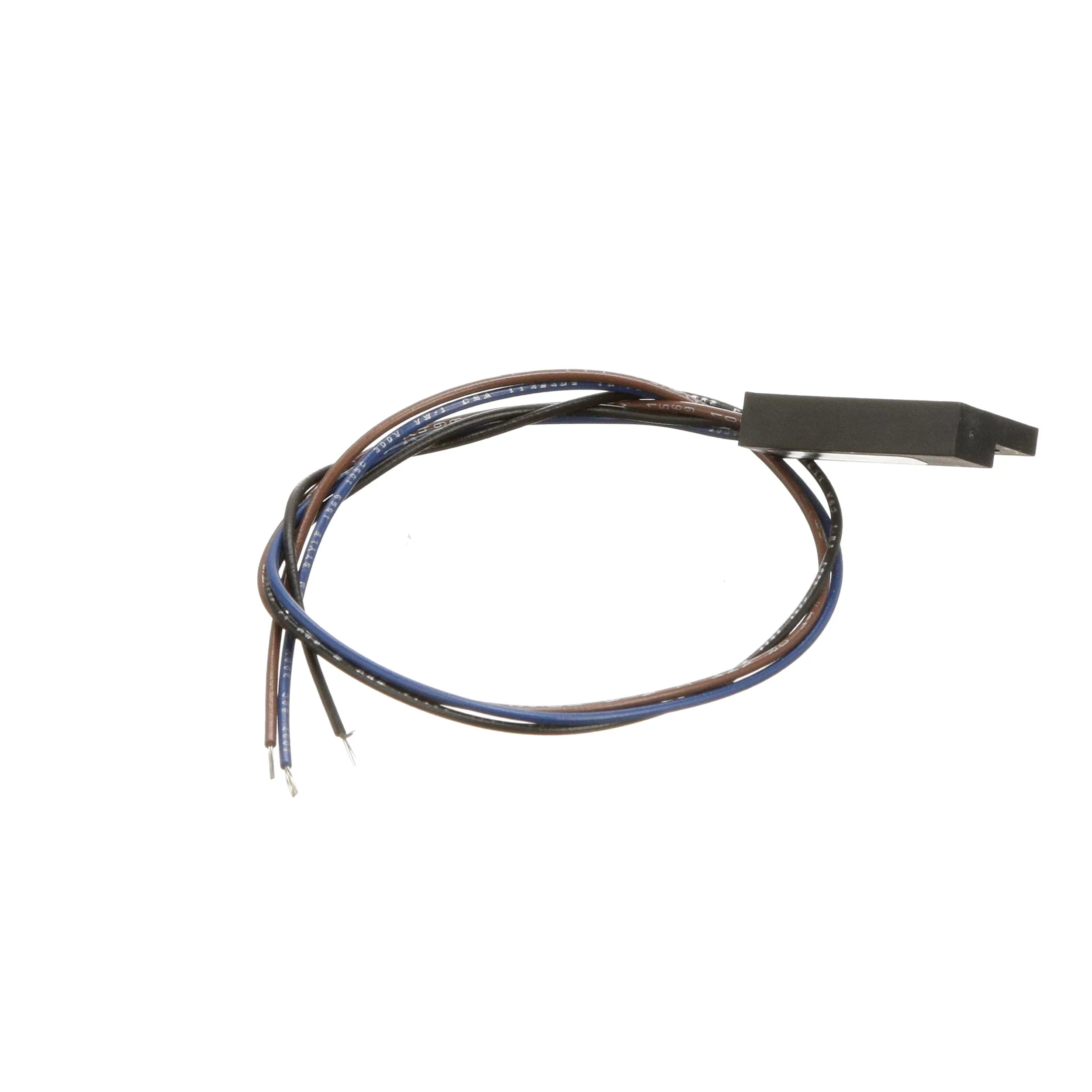

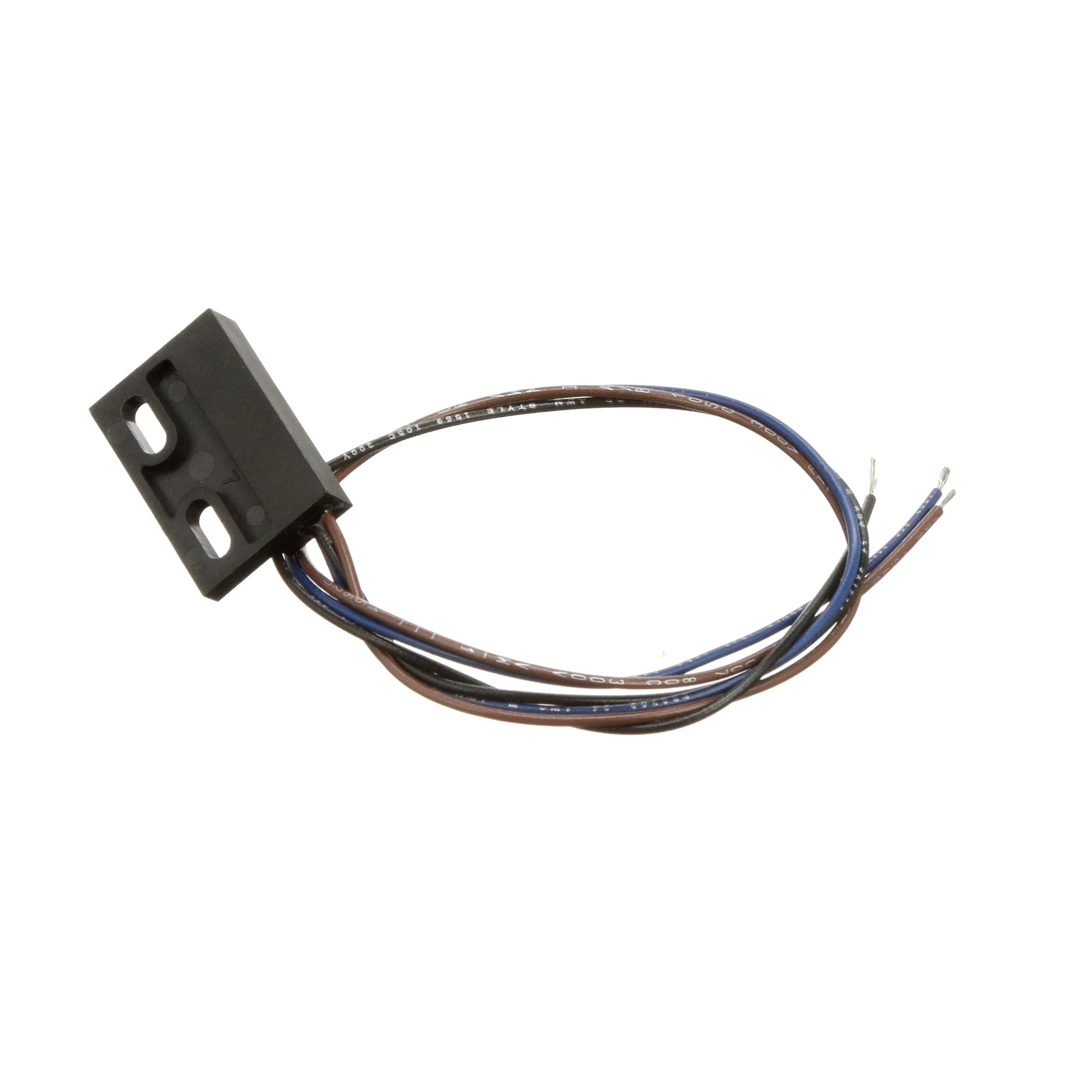

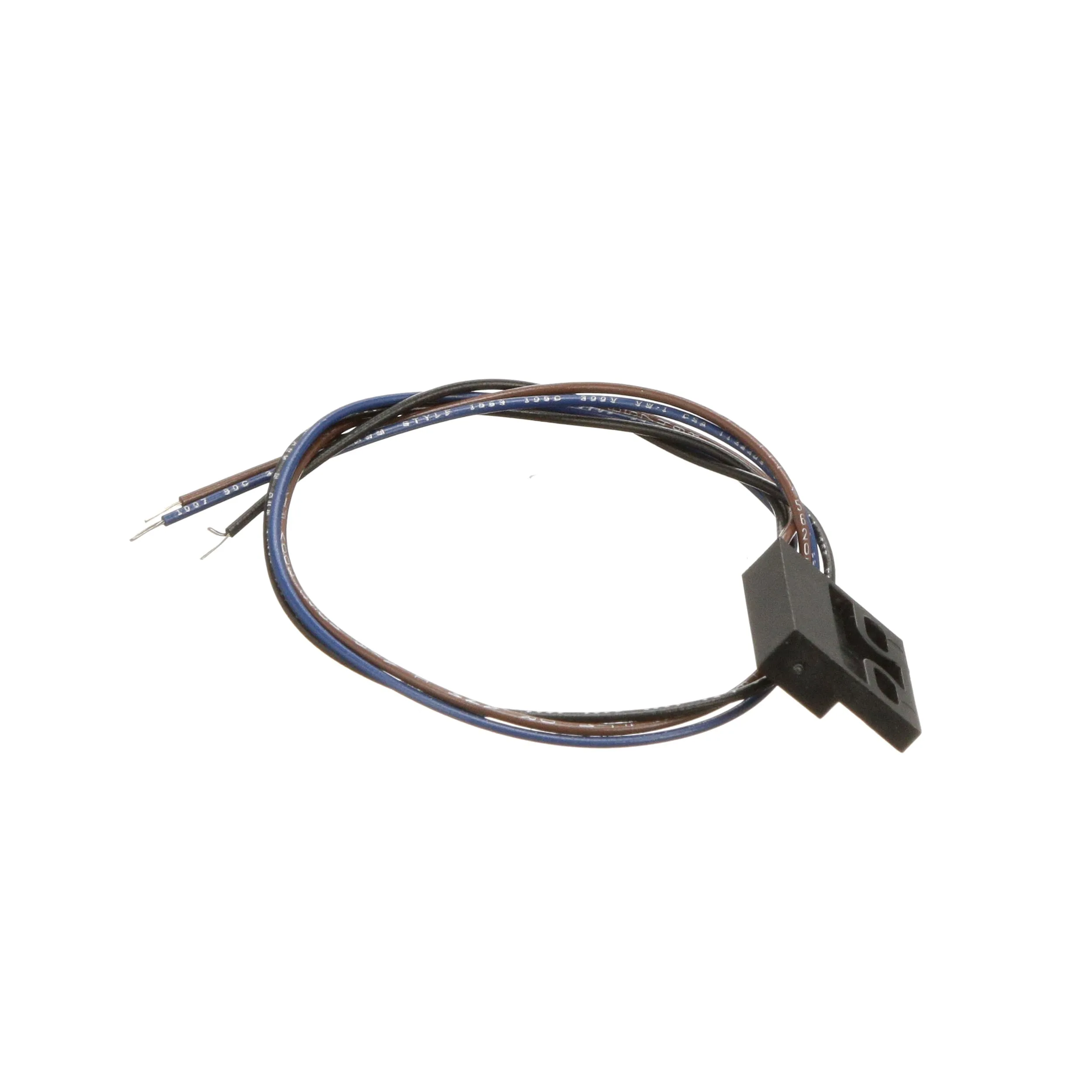

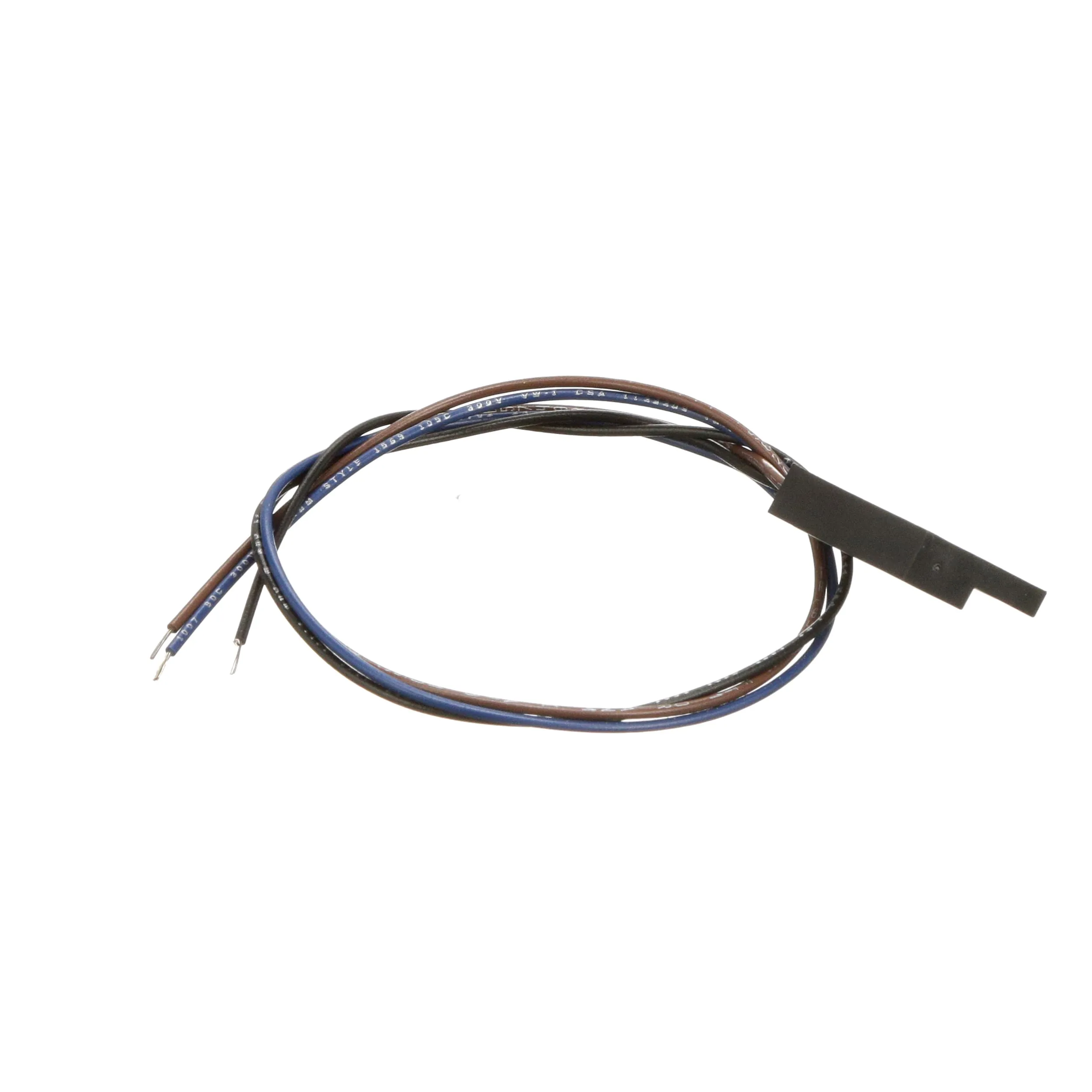

MP2017 Series reed sensor is an omnipolar, magnetically activated switch. These sensors consume zero power and are hermetically sealed for resistance against moisture and dirt. All sensors include 12" PVC-insulated flying leads. Operating Temperature Range: –40°C to 105°C.Features:
