Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Communication |
| Communication Port Type | Ethernet |
| Controller Type | Logic |
| Depth | 0.079" (2mm) |
| Dimensions | 90 x 71.2 x 84 mm |
| Display | Yes |
| Enclosure Rating | IP40 (Front Panel), IP20 (Terminal) |
| Family Name | Zelio Logic Family |
| For Use With | Zelio 2 |
| Function | Programmable |
| Input Type | Analog ; Discrete |
| Length | 3.543" (90mm) |
| Maximum Operating Temperature | 55 C |
| Minimum Operating Temperature | -20 C |

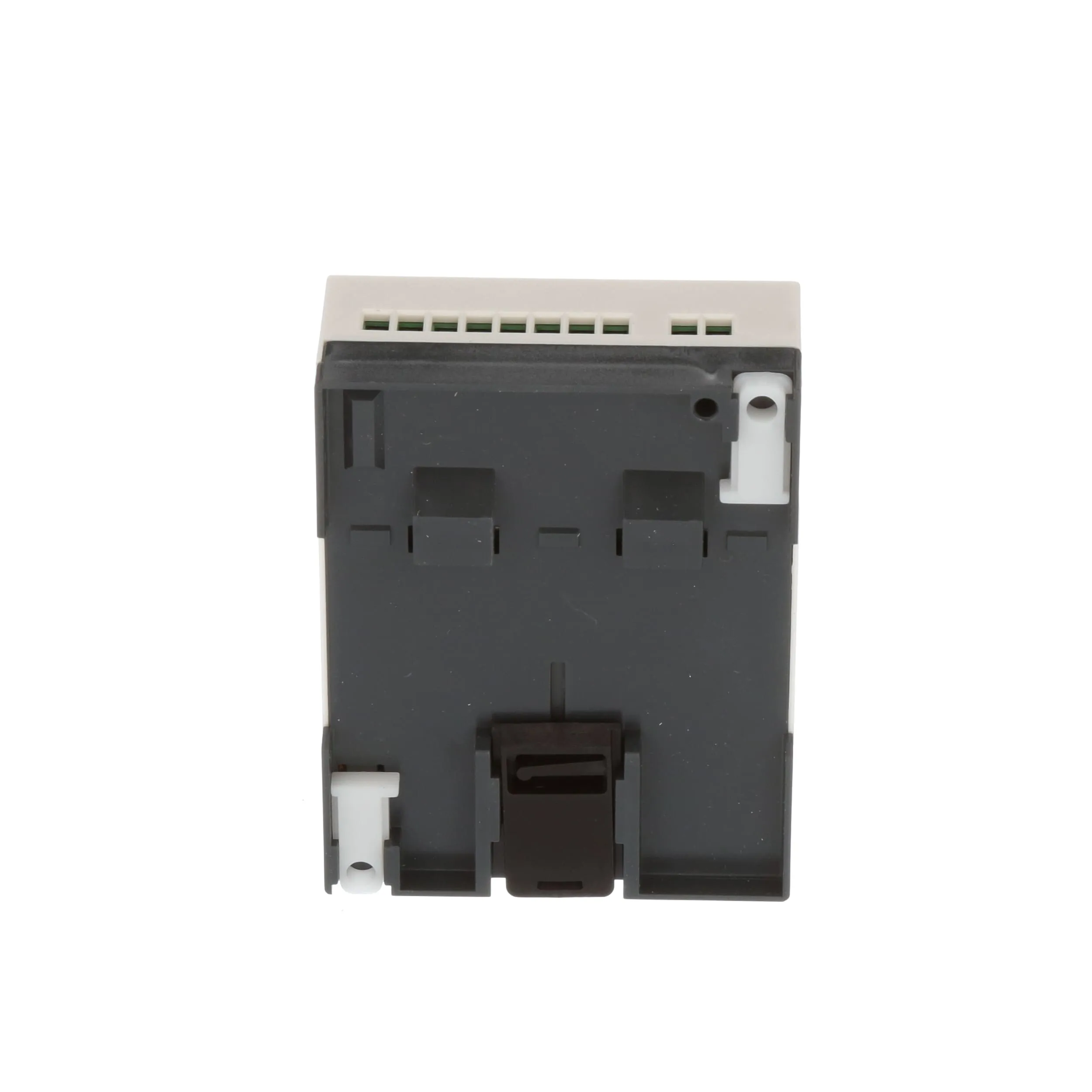

| Mounting Type | DIN Rail |
| Number of I/O Ports | 12 |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Number of Ports | 12 |
| Output Current | 8 A |
| Output Type | Relay |
| Product Description | Zelio Logic smart relays are designed for use in small automated systems. They are used in both industrial and commercial applications. For industry: automation of small finishing, production, assembly or packaging machines, decentralised automation of ancillary equipment of large and medium-sized machines in the textile, plastics and materials processing sectors, automated systems for agricultural machinery. For the commercial⁄building sectors: automation of barriers, roller shutters, access control, automation of lighting installations, automation of compressors and air conditioning systems. Their compact size and ease of setting-up make them a competitive alternative to solutions based on cabled logic or specific cards. Simple programming, ensured by the universal nature of LADDER and function block diagram FBD languages, meets all automation requirements and also the needs of the electrician. Compact smart relays are suitable for simple automated systems, up to 20 I⁄O. |

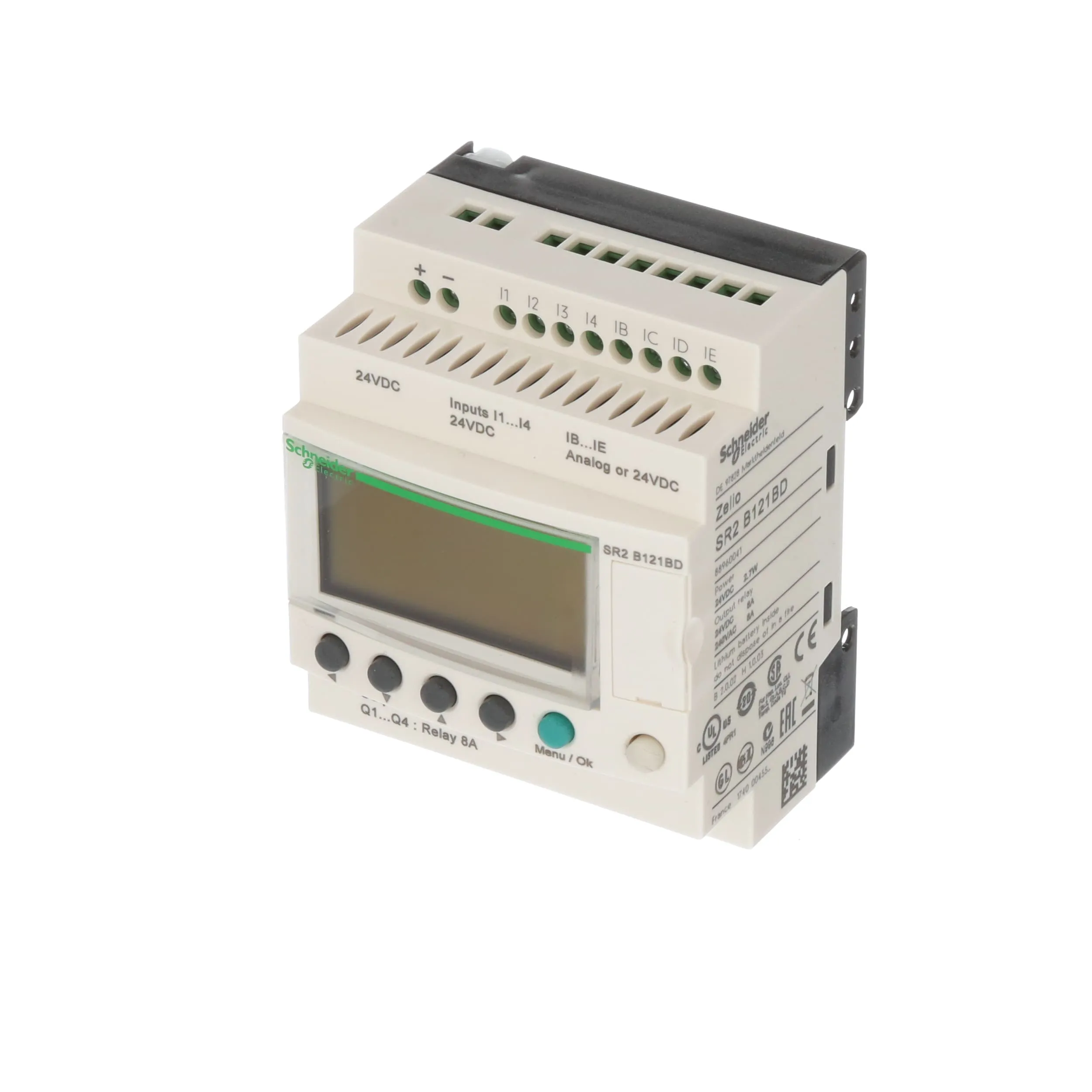

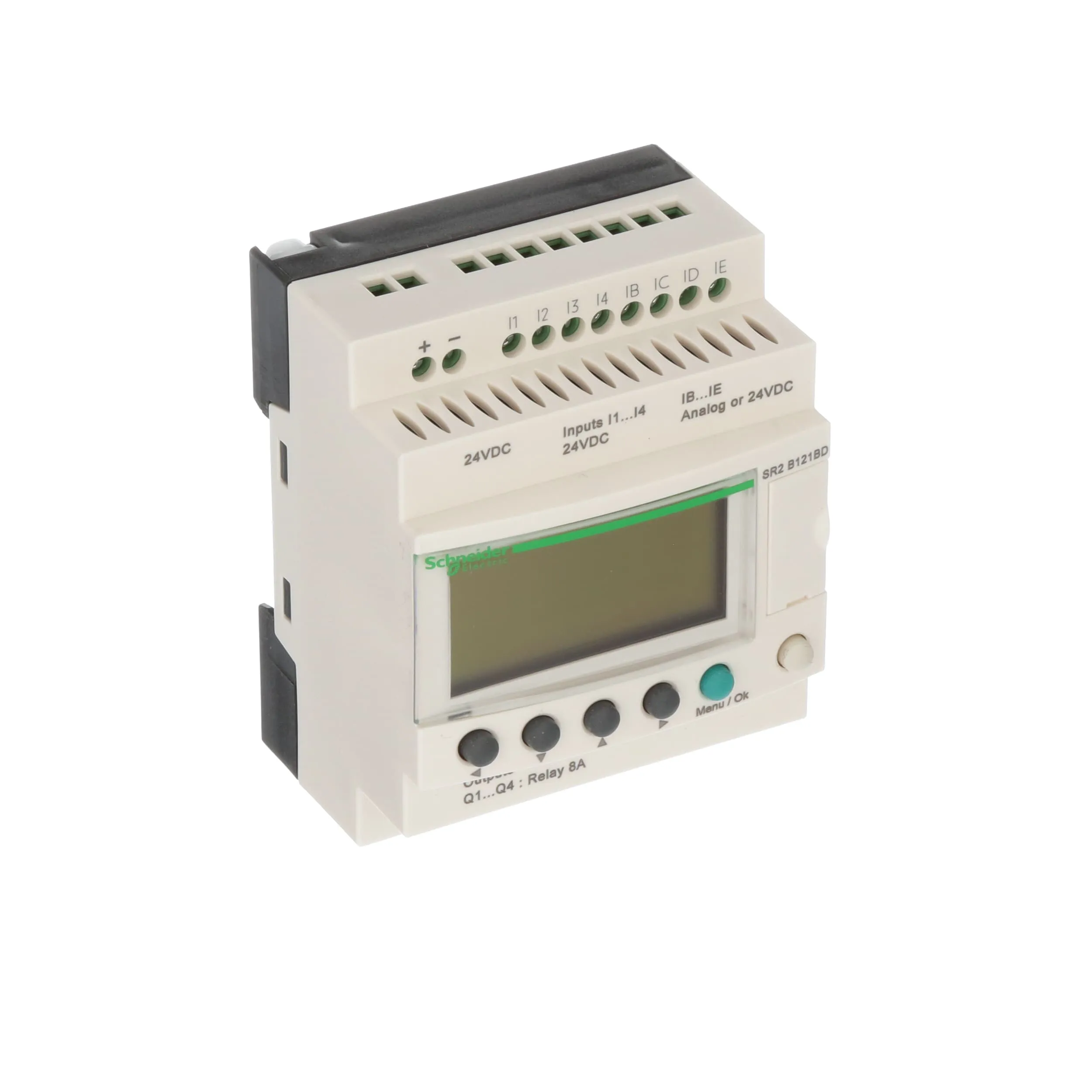

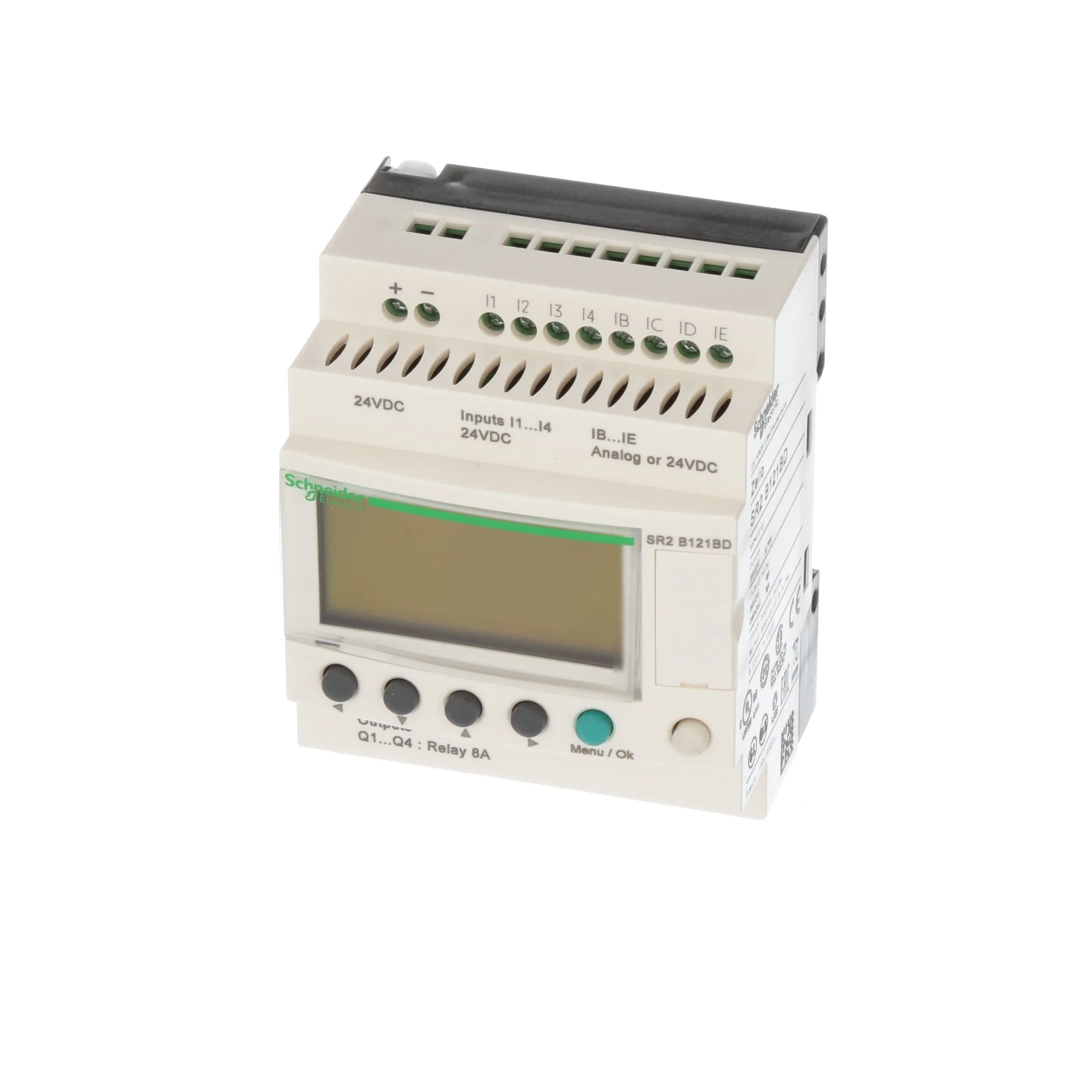

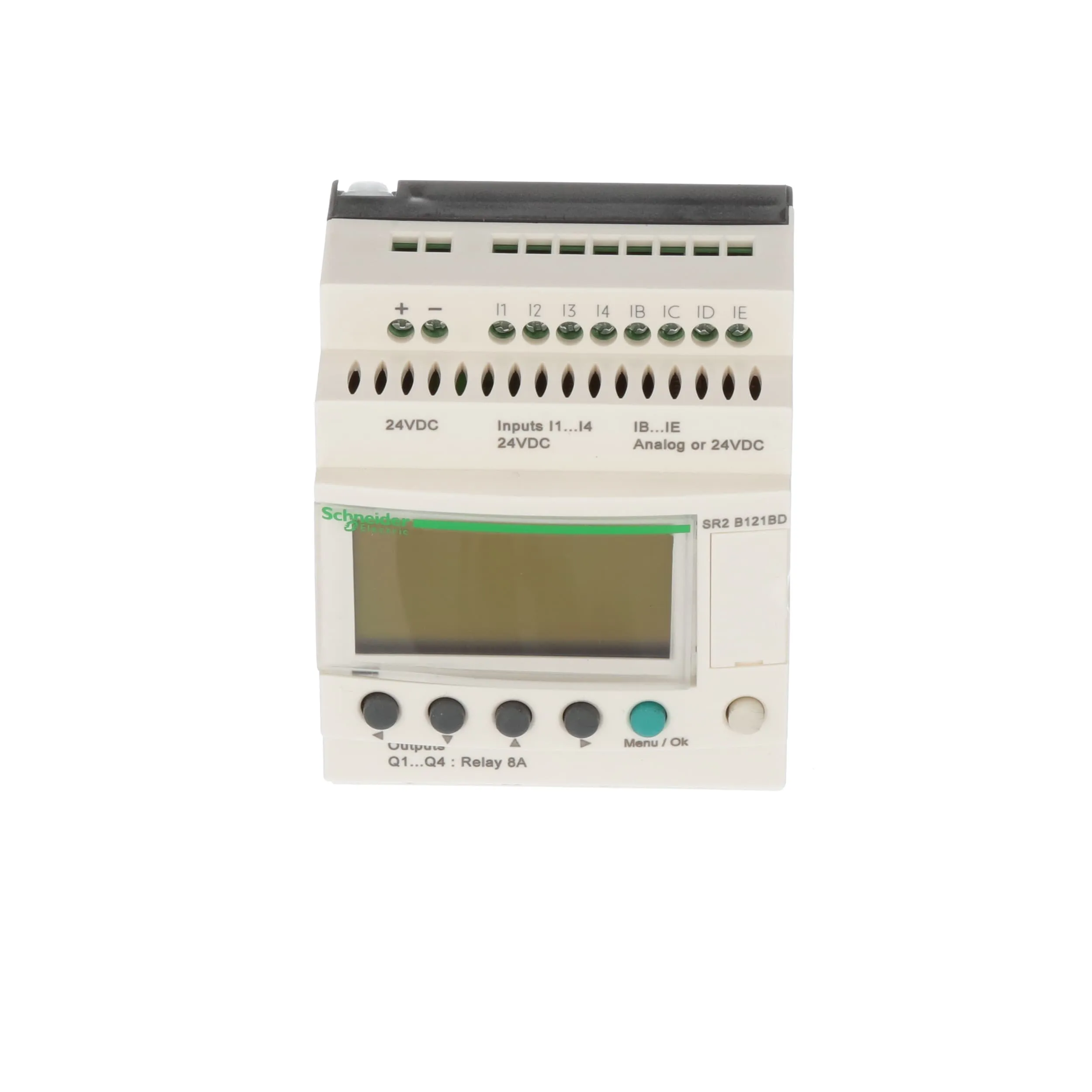

| Product Header | Zelio Logic Compact Smart Relay |
| Relay Type | Solid State |
| Scan Rate | 5, 10 ms |
| Series | |
| Special Features | Ethernet |
| Supply Voltage | 24VDC VDC |
| Temperature Operating Range | -20 to 55 C |
| Termination | Screw |
| Type | Process Controller |
| UPC Code | 785901693864 |
| Voltage Rating | 24 VDC |
| Voltage, Control | 24 VDC |
| Width | 2.803" (71.2mm) |
Overview
Schneider Electric Zelio Logic SR2 / SR3 Series — Smart Relays | For Simple Automation Systems up to 40 I/O's:
Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards..
Features:
Applications:
