| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Ethernet Switch |
| Current, Supply | 330 mA |
| Family Name | N-TRON Industrial Networking Family |
| For Use With | Ethernet I/O Modules |

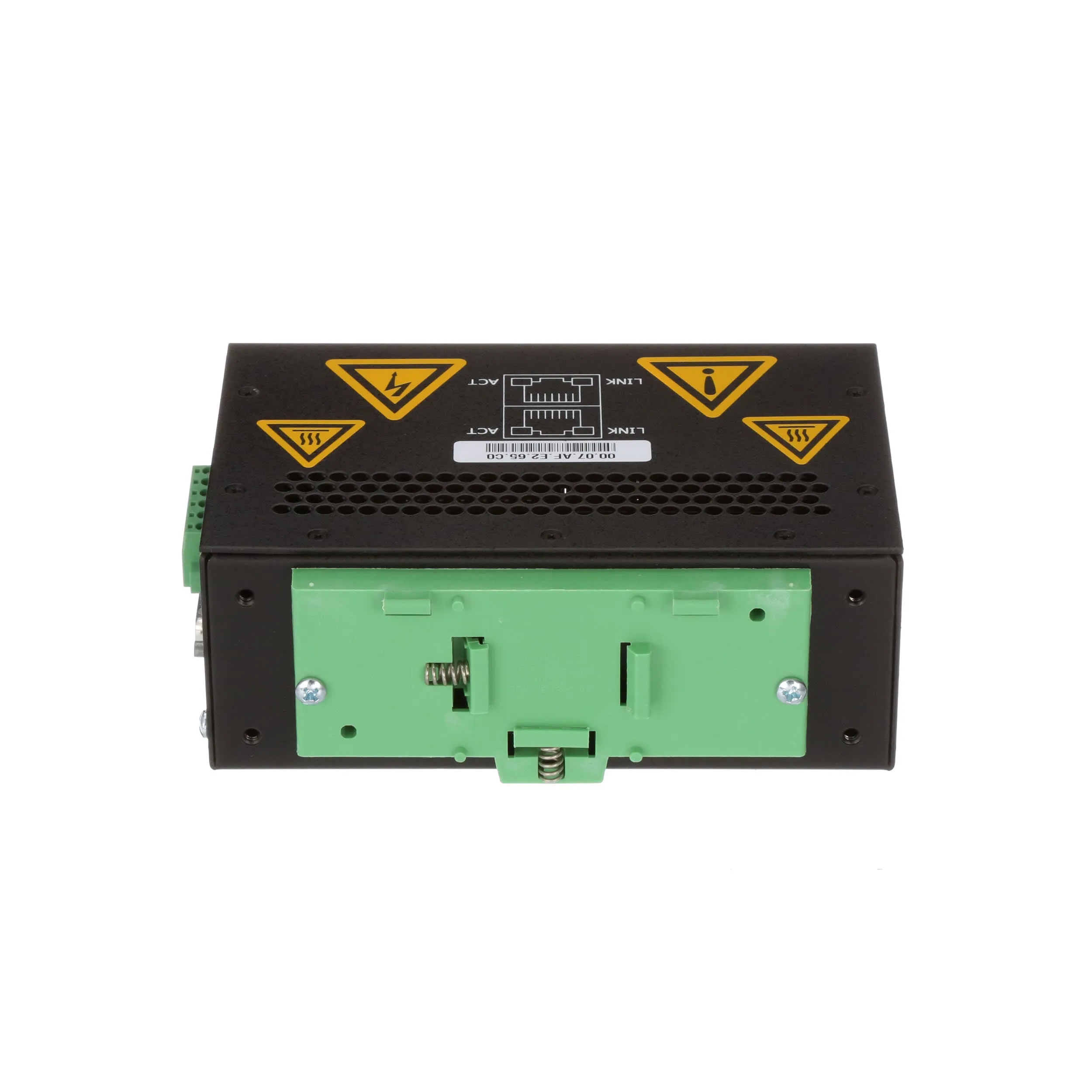

| Mounting Type | DIN Rail |
| Number of Ports | 8 Port |
| Port, Type | (6) x RJ45, (2) x Fiber ST |
| Primary Type | Ethernet Switch |
| Protocol Type | 10/100 Mbit/s (RJ45), 100 Mbit/s (Fiber) |
| Series | |
| Special Features | Auto-Sensing, ESD and Surge Protection Diode on All Port, Configurable Alarm Contact, Store and Forward Technology |
| Supply Voltage | 10 to 30 VDC |
| Type | Managed Switch |
Overview

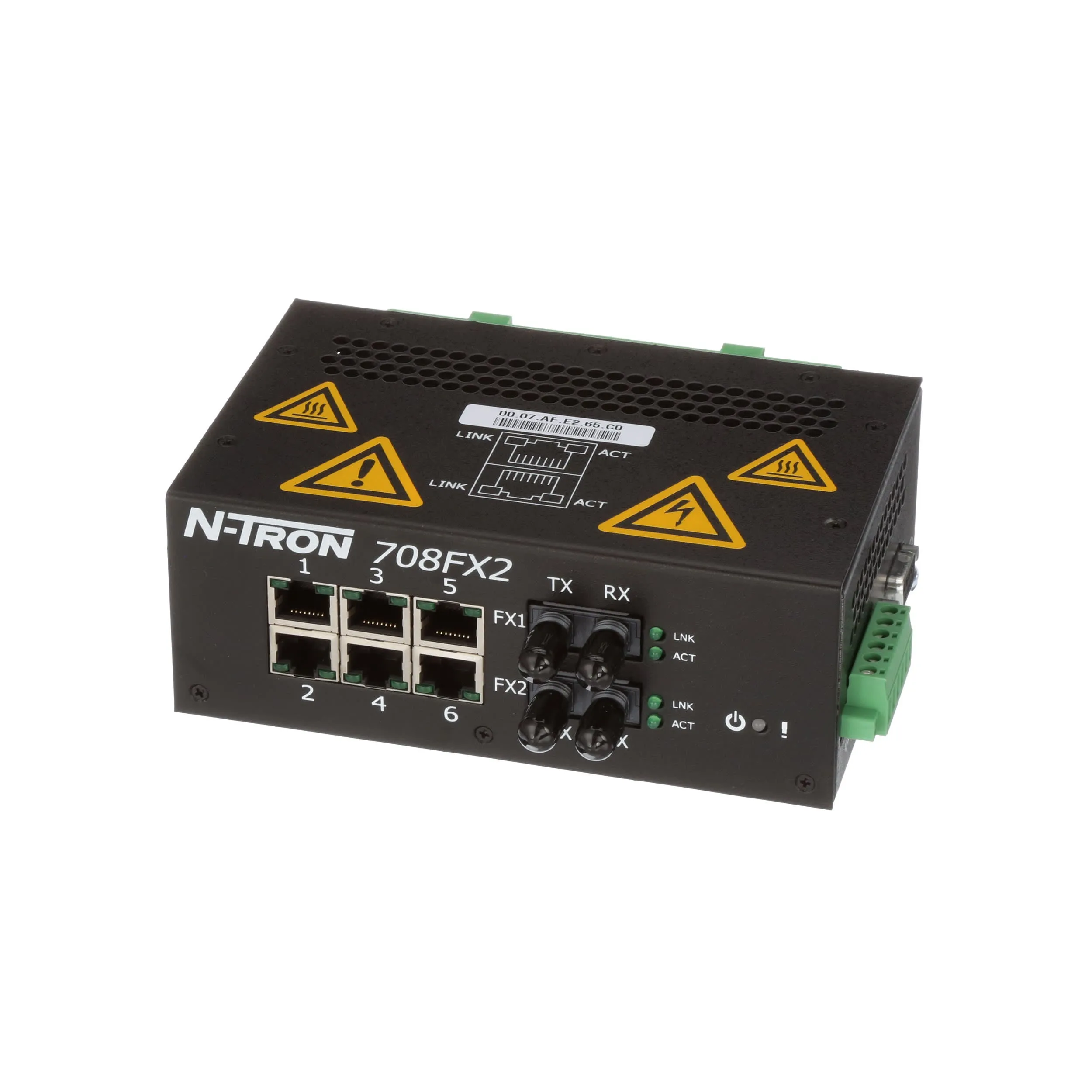

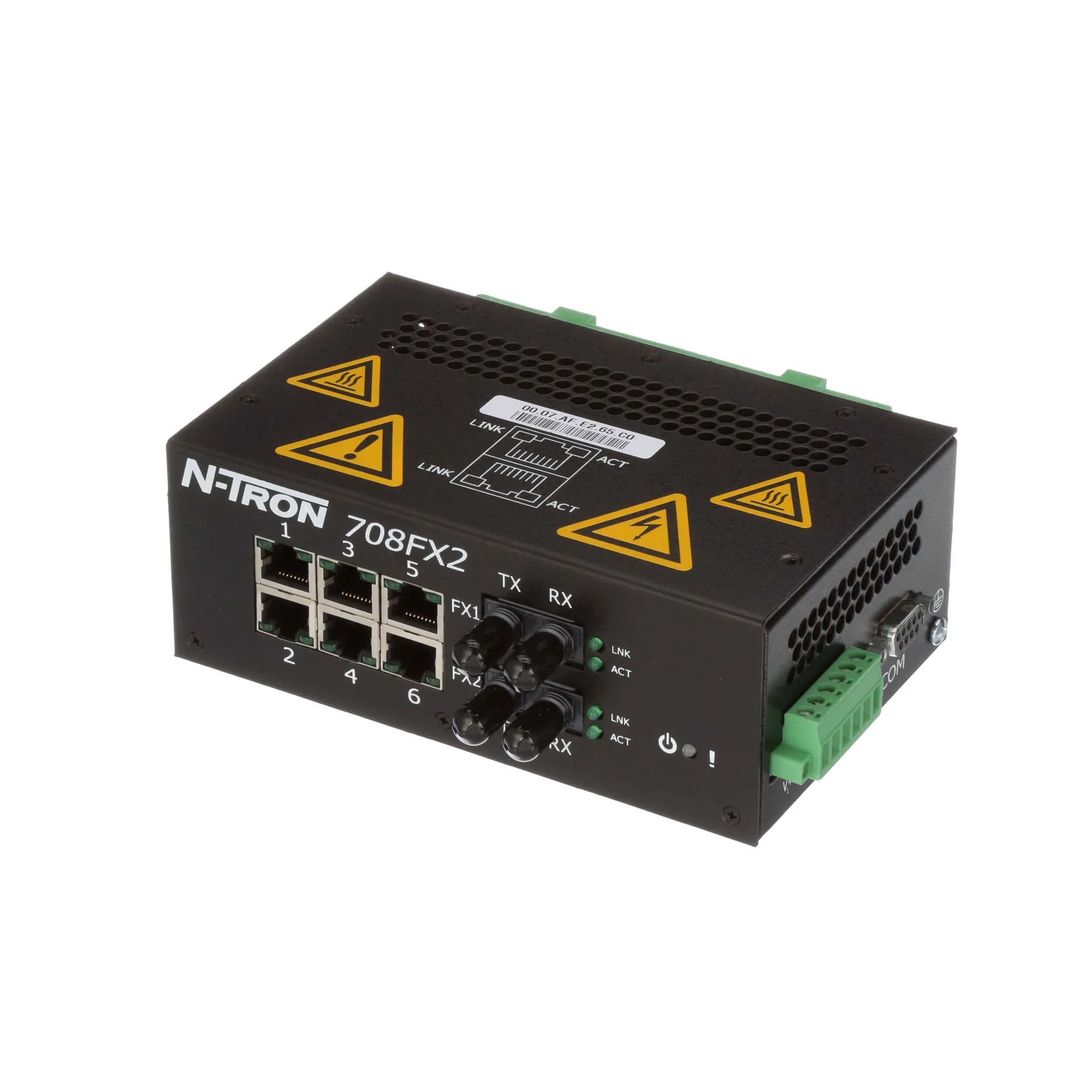

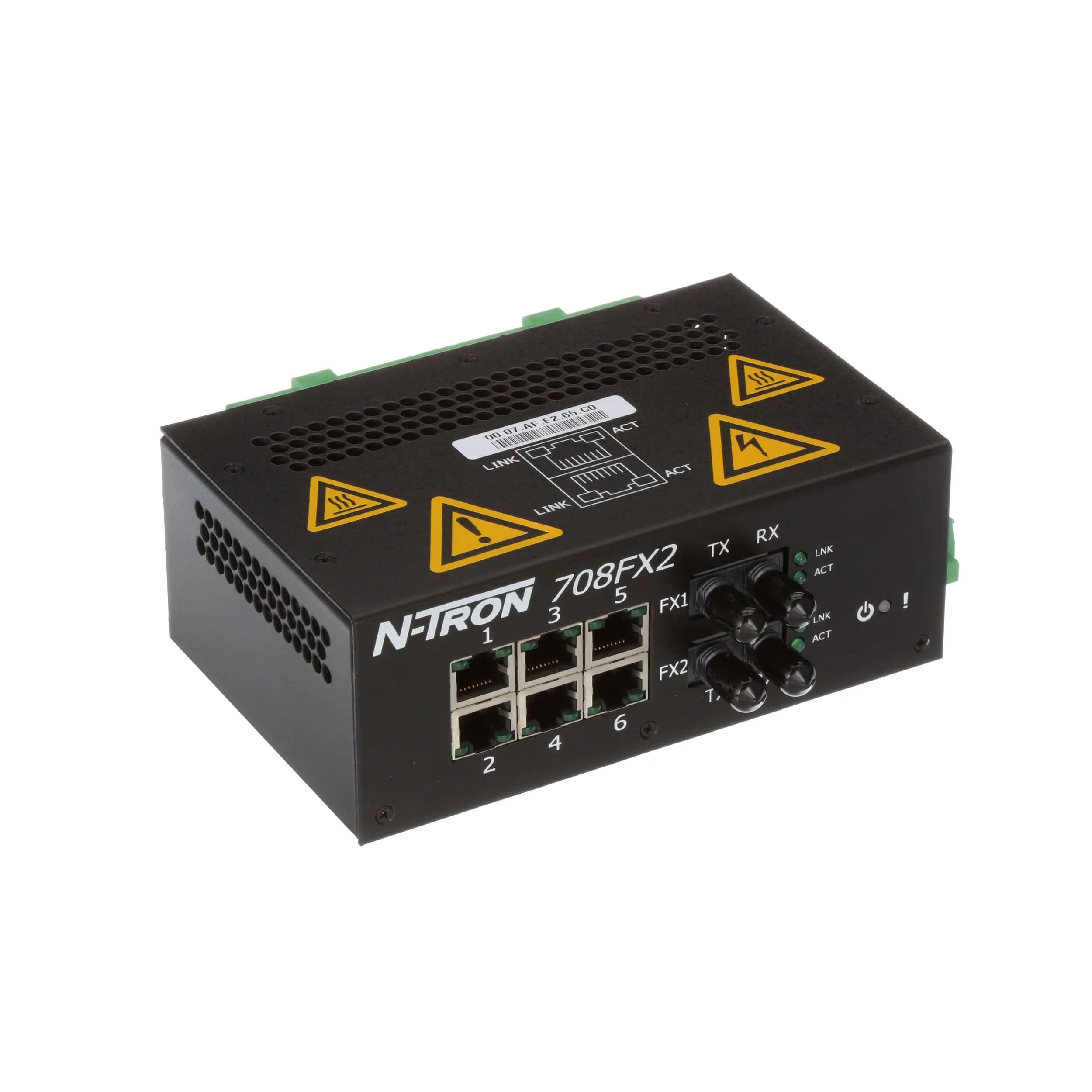

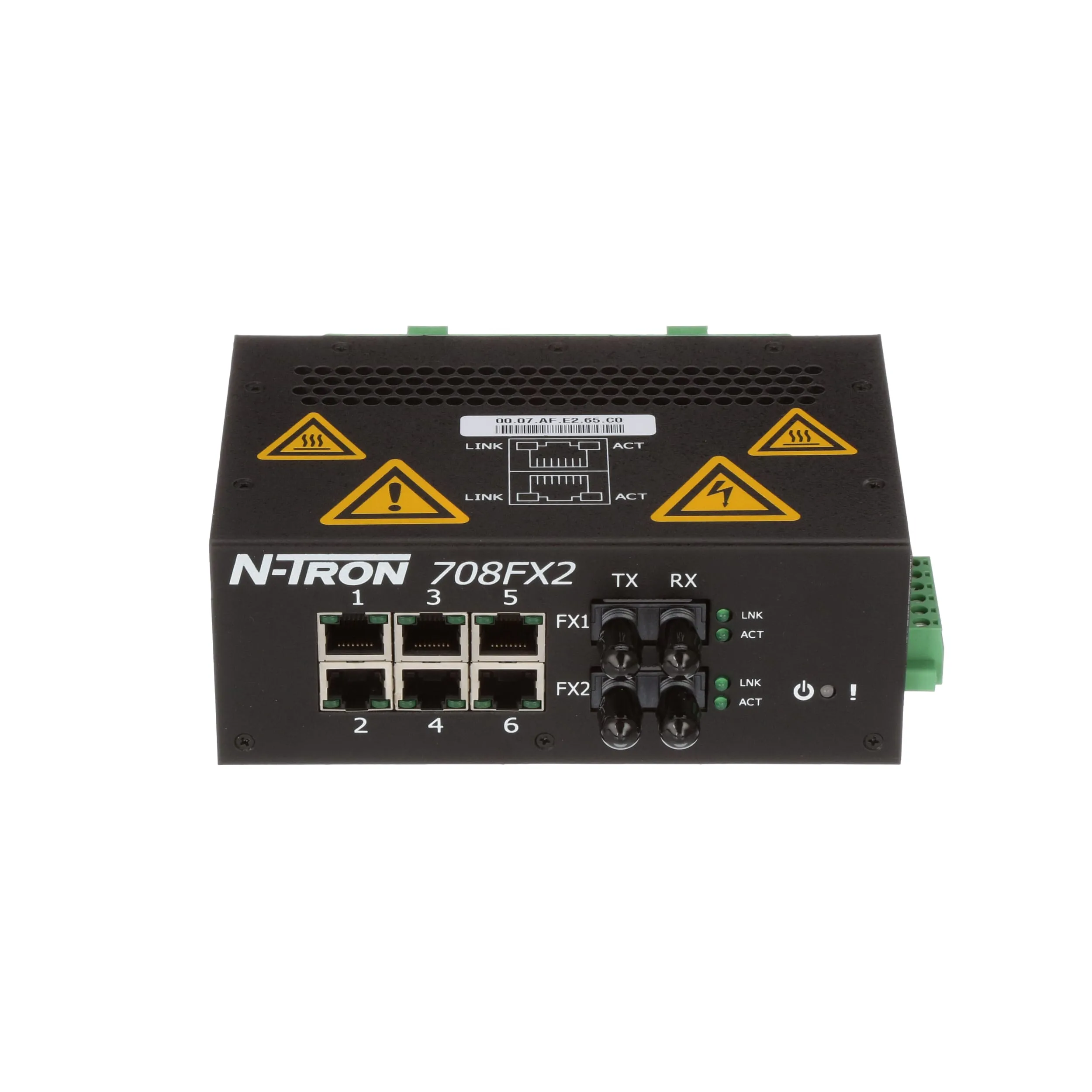

Red Lion N-TRON 700 & 7000 Series — Managed Ethernet Switches:
For applications in extreme environments, check out Red Lion's N-Tron® series 700 managed industrial Ethernet switches. Our 700 managed industrial Ethernet switches support SNMP, web management, Fast Ethernet and N-View™ monitoring technology. Housed in rugged enclosures, the 700 managed Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology, providing 30 ms healing times. The 700 managed industrial Ethernet switches feature between eight and 16 ports, offering 100Base port speeds. These managed switches provide a combination of copper and fiber ports for maximum flexibility. Available in waterproof IP67 protected enclosures with M12 style connectors, the 700 series switches provide extreme reliability in high moisture/vibration environments.
The N-Tron 700 line of managed industrial Ethernet switches provide uncompromising performance in harsh environments including features like N-Ring™, VLAN, Quality of Service (QoS), port mirroring, IGMP and SNMP. These network management features provide best-in-class visibility and uptime performance. 700 managed industrial Ethernet switches are housed in metal enclosures, and feature a -40° to 85°C operating temperature. With UL Class I, Div. 2 listing, CE, EN50155 and ABS certifications, these switches are built to last in the most demanding environments.
The -N models provide network performance monitoring using N-View monitoring technology, which provides 47 different status points on switch and port conditions and displays that information on a networked computer. The 700 managed industrial Ethernet switches provide a high level of security utilizing port-based MAC address filtering and SNMPv3 communication protocol to ensure the safest connections.
Features:
