| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | MINI MCR-SL-U-U-SP |
| Approvals | UL Listed, cUL Listed, ATEX, cULus Listed, UL Recognized, cUL Recognized, GL, EAC, cULus Recognized |
| Current Rating | 20 A |
| Input Type | Current, Voltage |
| Input, Range | -10 to 10 V |
| Maximum Operating Temperature | 65 °C |
| Minimum Operating Temperature | -20 °C |
| Module Type | Conditioner |
| Mounting Type | DIN Rail |
| Number of Channels | 1 |
| Output | Current |
| Output Type | Analog |
| Series | |
| Special Features | Power Supply Possible via the Foot Element (T-Connector), Low Power Consumption, Entry-Level Alternative to Configurable Signal Conditioners, Highly-Compact Isolating Amplifier for Electrical Isolation, Conversion, Amplification, Filtering of Standard Analog Signals, 3-Way Isolation, Fixed Signal Combinations |
| Standards | ATEX, CE Compliant, Canada, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, GL, UL, UL 508 Recognized, USA |
| Supply Voltage | 19.2 to 30 VDC |
| Temperature Operating Range | -20 to 65 °C |
| Termination | Screw |
| Type | Amplifier |
| UPC Code | 4017918974909 |
Overview

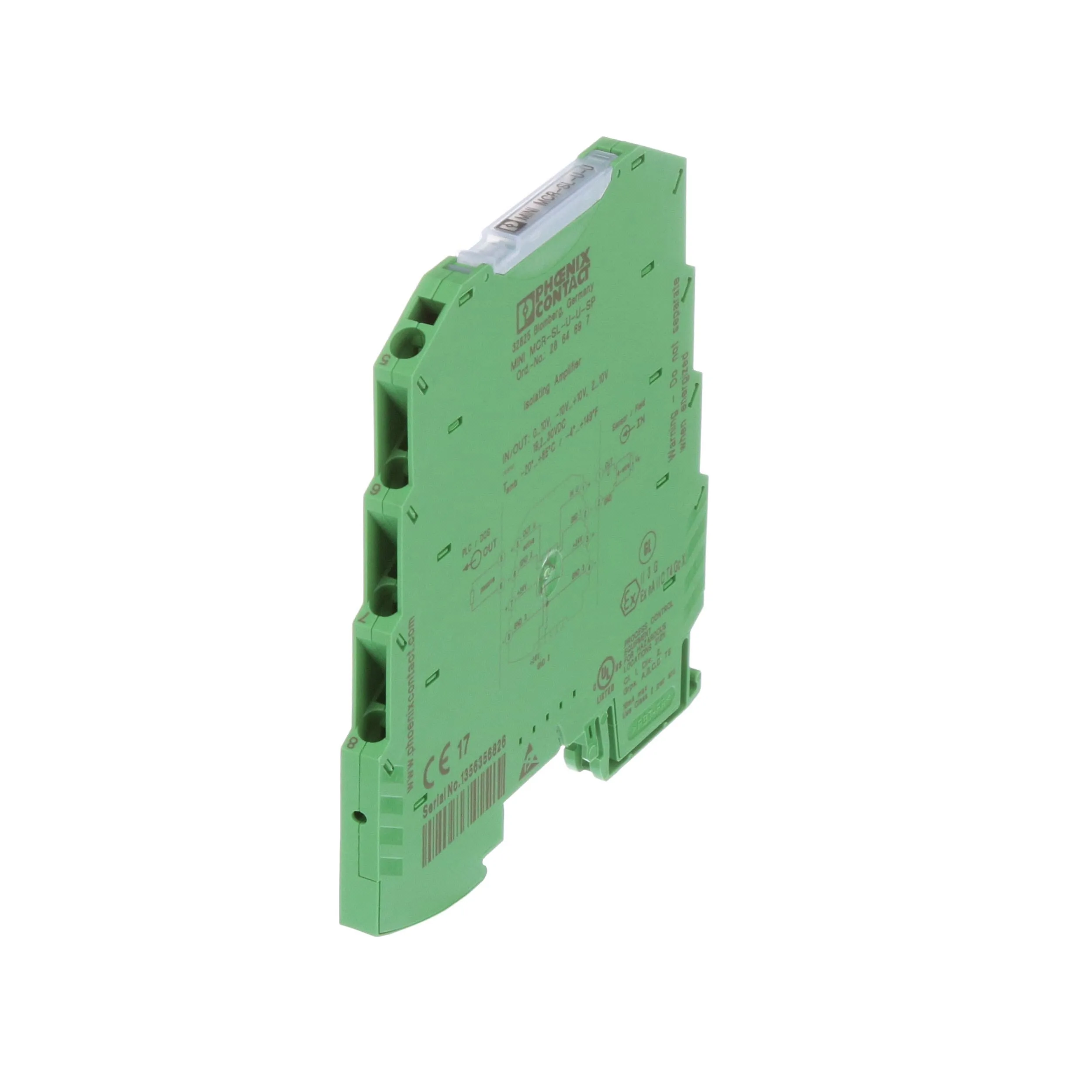

Phoenix Contact MCR Series – MINI Analog Highly Compact Signal Conditioner:
Maximum signal quality with minimal space requirements – MINI Analog signal conditioners isolate, convert, filter, and amplify your analog signals – with a design width of just 6.2 mm.
The configurable MINI Analog modules are easy to set with DIP switches – without the need for any software. Alternatively, Phoenix Contact can make the settings based on your individual ordering information. For enhanced functionality and monitoring you can also configure the modules with the robust S-Port interface conveniently using a free-of-charge software interface. Here you can choose between three solutions:
1. Standalone ANALOG -CONF software
2. FDT/DTM software package
3. Standalone DTMs, allowing you to use your
existing FDT frame application
