| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | MCR-4CLP-I-I-00 |
| Current Rating | 50 A |
| Input Type | Current |
| Input, Range | 0 to 20 mA |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -10 °C |
| Module Type | Isolator |
| Mounting Type | DIN Rail |
| Number of Channels | 4 |
| Output Type | Current |
| Series | |
| Special Features | Electrical Isolation without Additional Power Supply |
| Standards | CE Compliant, cULus |
| Temperature Operating Range | -10 to 70 °C |
| Termination | Screw |
| Type | Loop Powered Isolator |
| UPC Code | 4017918131708 |
Overview

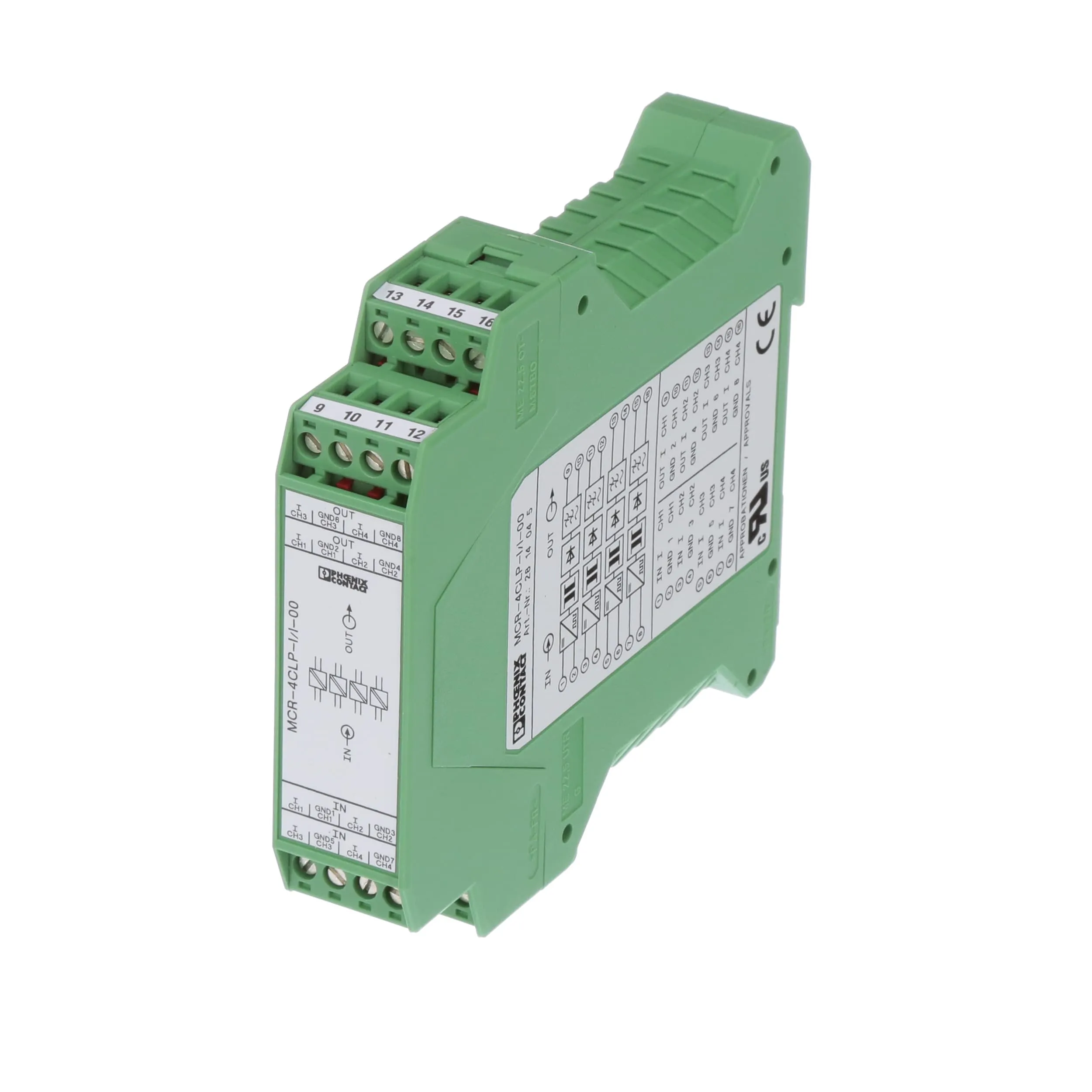

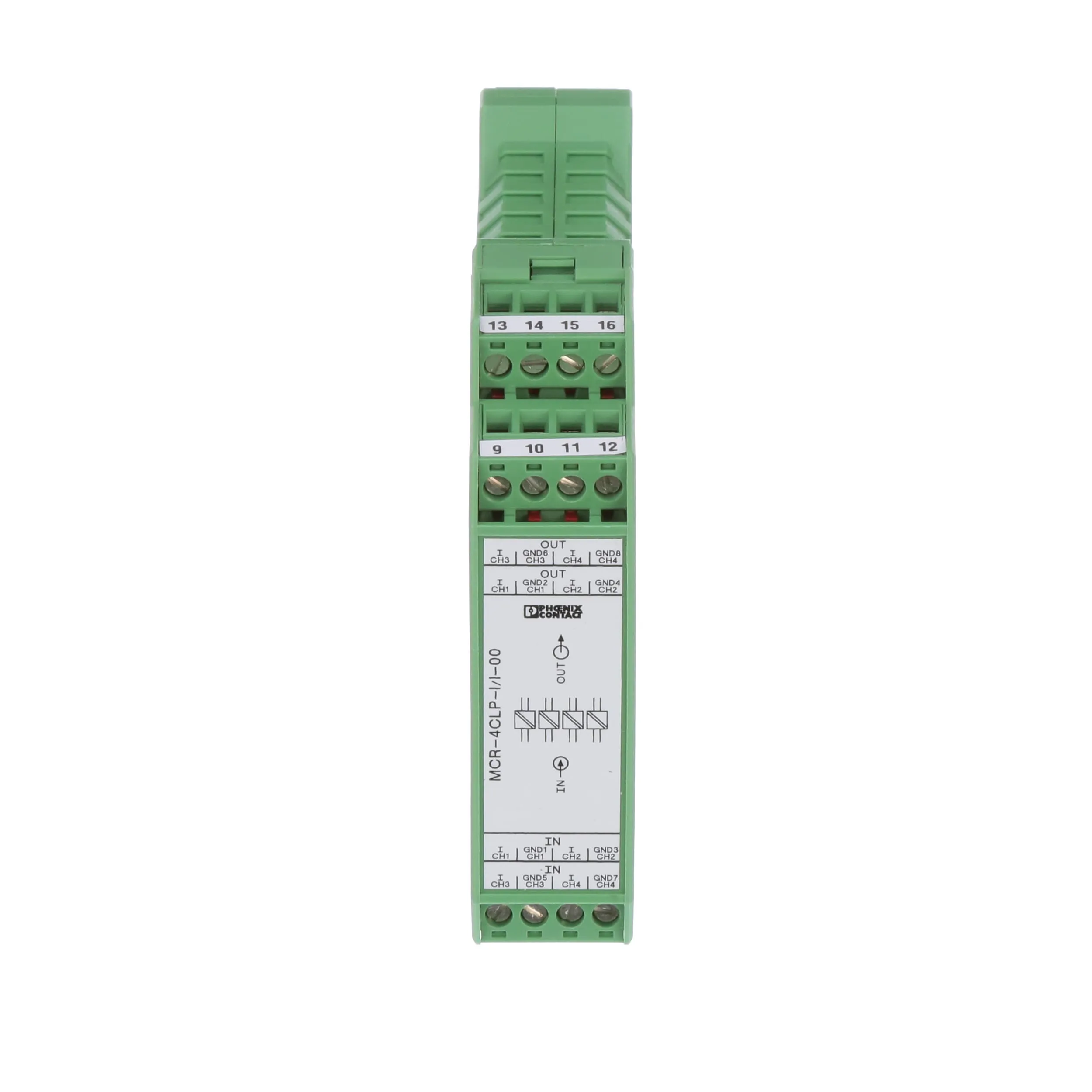

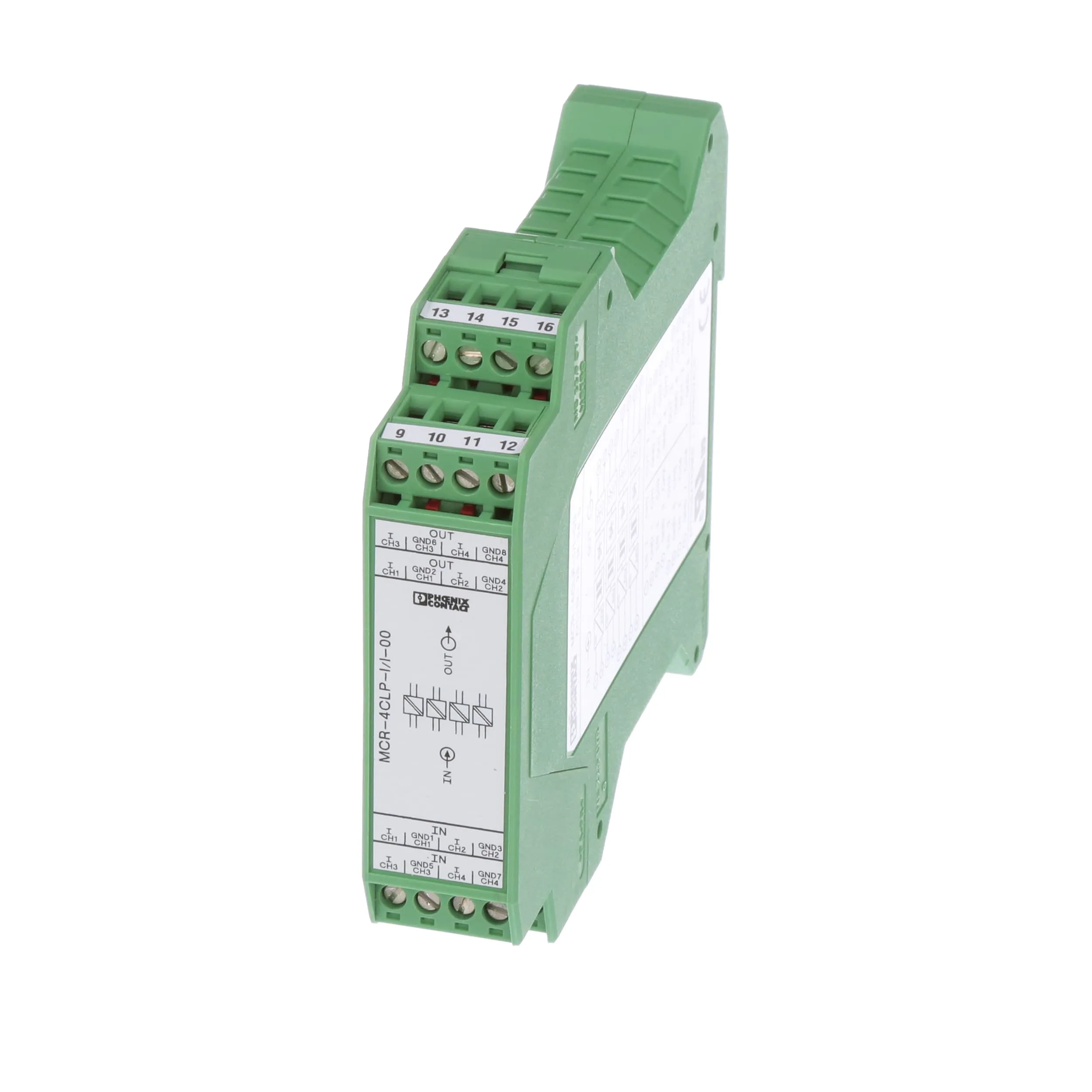

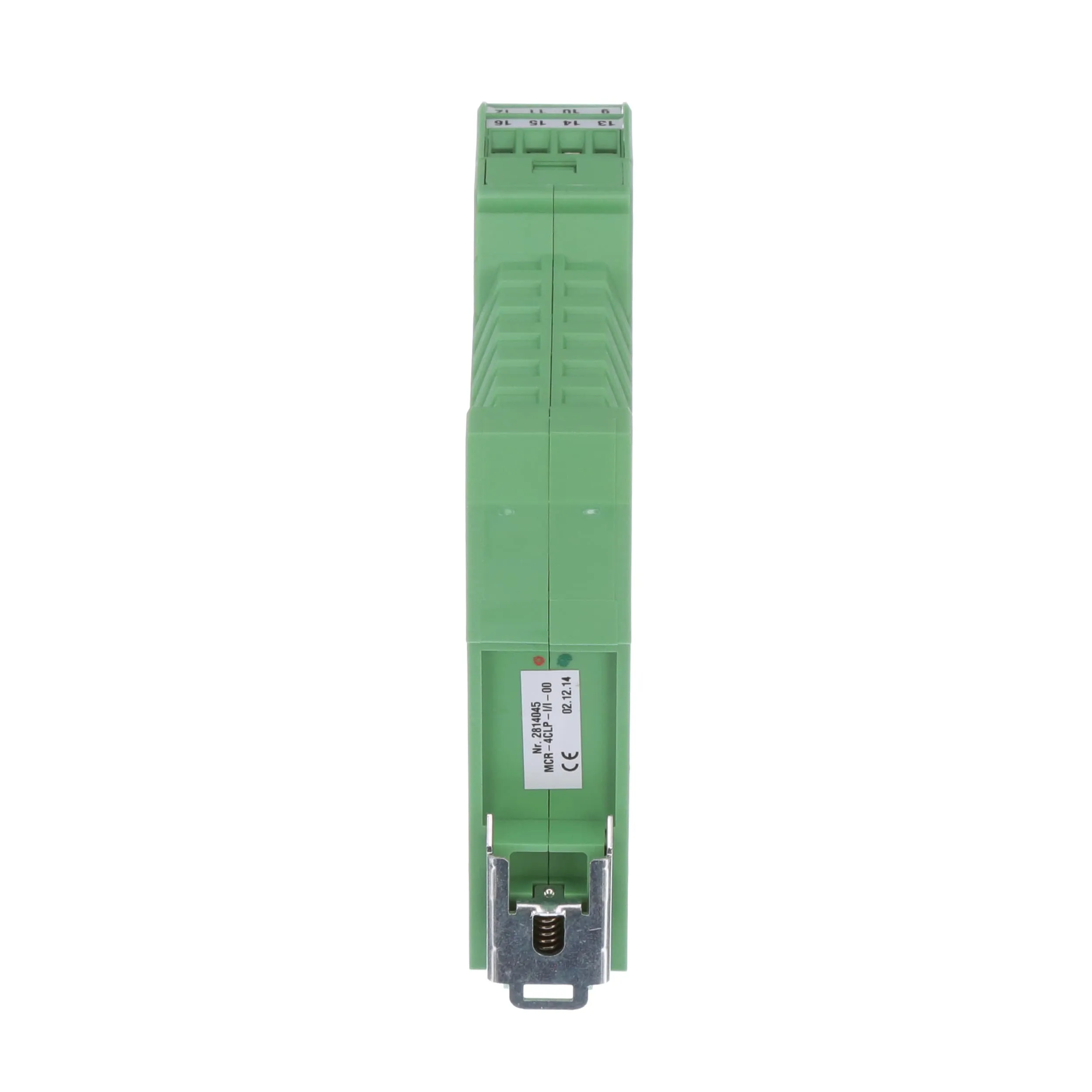

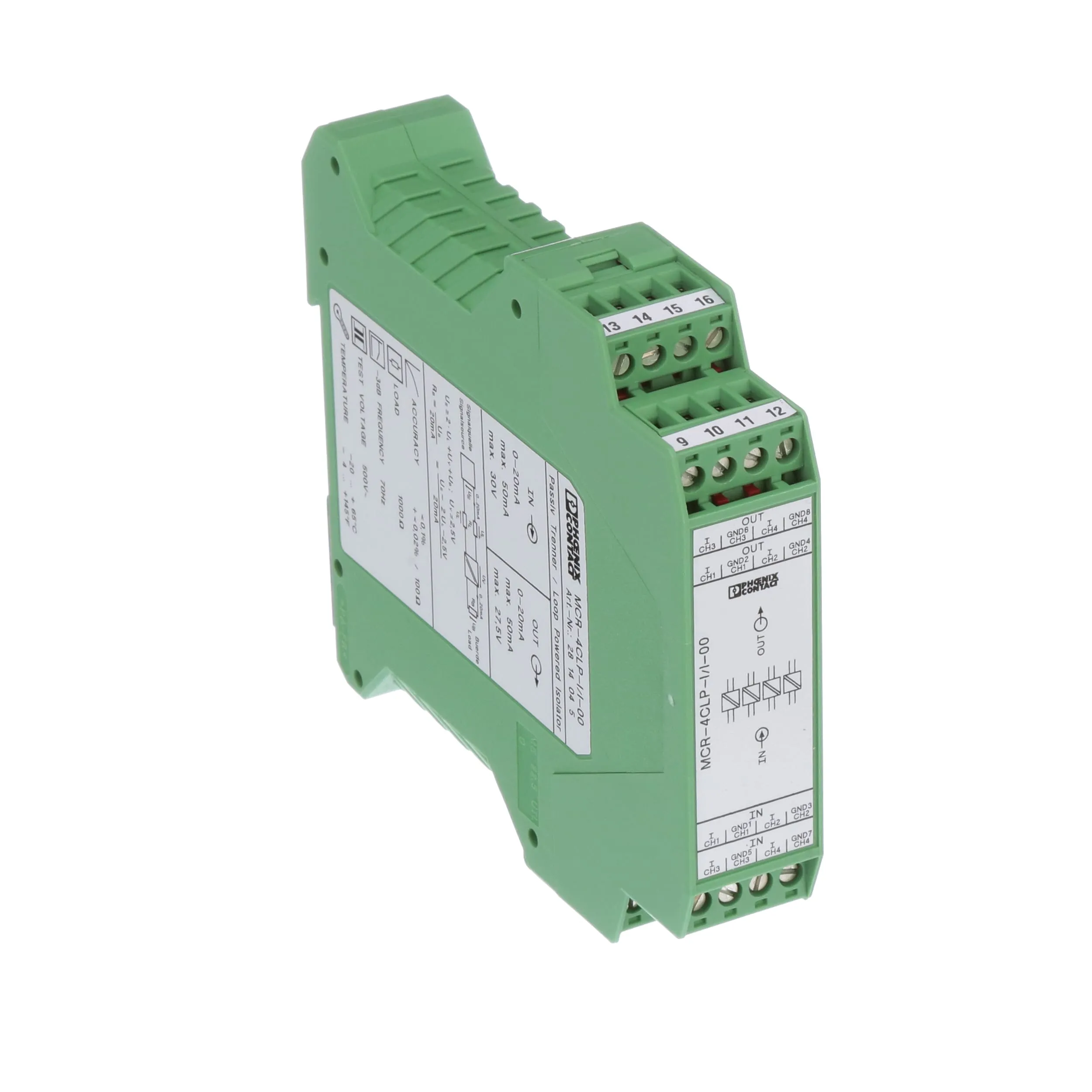

Phoenix Contact MCR Series – MINI Analog Loop-powered Isolators:
Maximum signal quality with minimal space requirements – MINI Analog signal conditioners isolate, convert, filter, and amplify your analog signals – with a design width of just 6.2 mm.
The configurable MINI Analog modules are easy to set with DIP switches – without the need for any software. Alternatively, Phoenix Contact can make the settings based on your individual ordering information. For enhanced functionality and monitoring you can also configure the modules with the robust S-Port interface conveniently using a free-of-charge software interface. Here you can choose between three solutions:
1. Standalone ANALOG -CONF software
2. FDT/DTM software package
3. Standalone DTMs, allowing you to use your
existing FDT frame application
Features:
