The Particle Power Module is your ultimate solution for managing the power needs of Particle connectivity modules. These production-grade cards feature PMICs, fuel gauges, and versatile breakout PCBs, catering to both testing and experimental purposes.

As modern module designs demand higher power, particularly due to the heavy RF power switching requirements of our Gen 4 hardware, it becomes crucial to ensure system stability. Our Power Modules address these demands effectively, ensuring stable performance.

Simplified Prototyping: Facilitates structured testing and prototyping with dedicated power interfaces on the M.2 Breakout Board.

Component Sourcing Solutions: Alleviates challenges in sourcing components and emulating power circuits with built-in Device OS support.

Reliable Power Designs: Provides dependable power solutions for Particle Gen 4 SoMs without needing to implement from scratch.

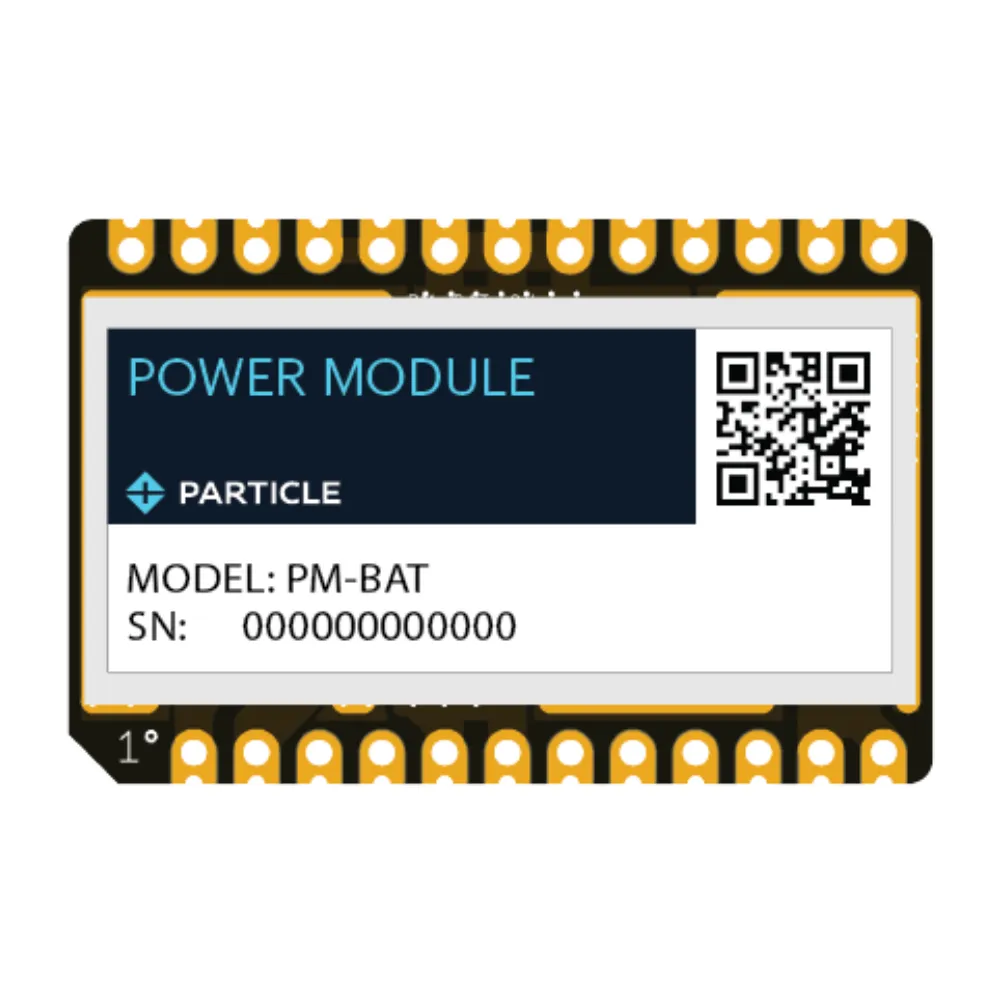

This variant allows for connection to an external lithium battery, as well as the circuits to charge / monitor it. This module is included with our M.2 Breakout Board automatically for your convenience. It is also included on the Muon as the pre-soldered power supply board. It is available for purchase without headers in Tray form.

Features

• Fully integrated power module with built-in single cell LiPo/Li-Ion battery support
• Intelligent power path management
• Built-in fuel gauge to accurately determine the battery's state of charge
• Battery temperature monitoring support
• Buck-Boost topology for maximizing battery life
