Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Connection to Host | Backplane |
| Depth | 0.197" (5mm) |
| Dimensions | 82.55 x 12.7 x 90.42 mm |
| For Use With | SNAP PAC System |
| Input Current | 160 mA |
| Length | 3.25" (82.55mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Mechanical Power Relay |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 4 |
| Number of I/O Ports | 4 |
| Primary Type | I/O Module |
| Series | |
| Special Features | Channel to Channel Isolation |
| Standards | CE Marked, RoHS Compliant, DFARS |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Time, Turn-Off | 8 ms |
| Time, Turn-On | 8 ms |
| Type | Output |
| Width | 0.5" <1/2> (12.7mm) |
Overview

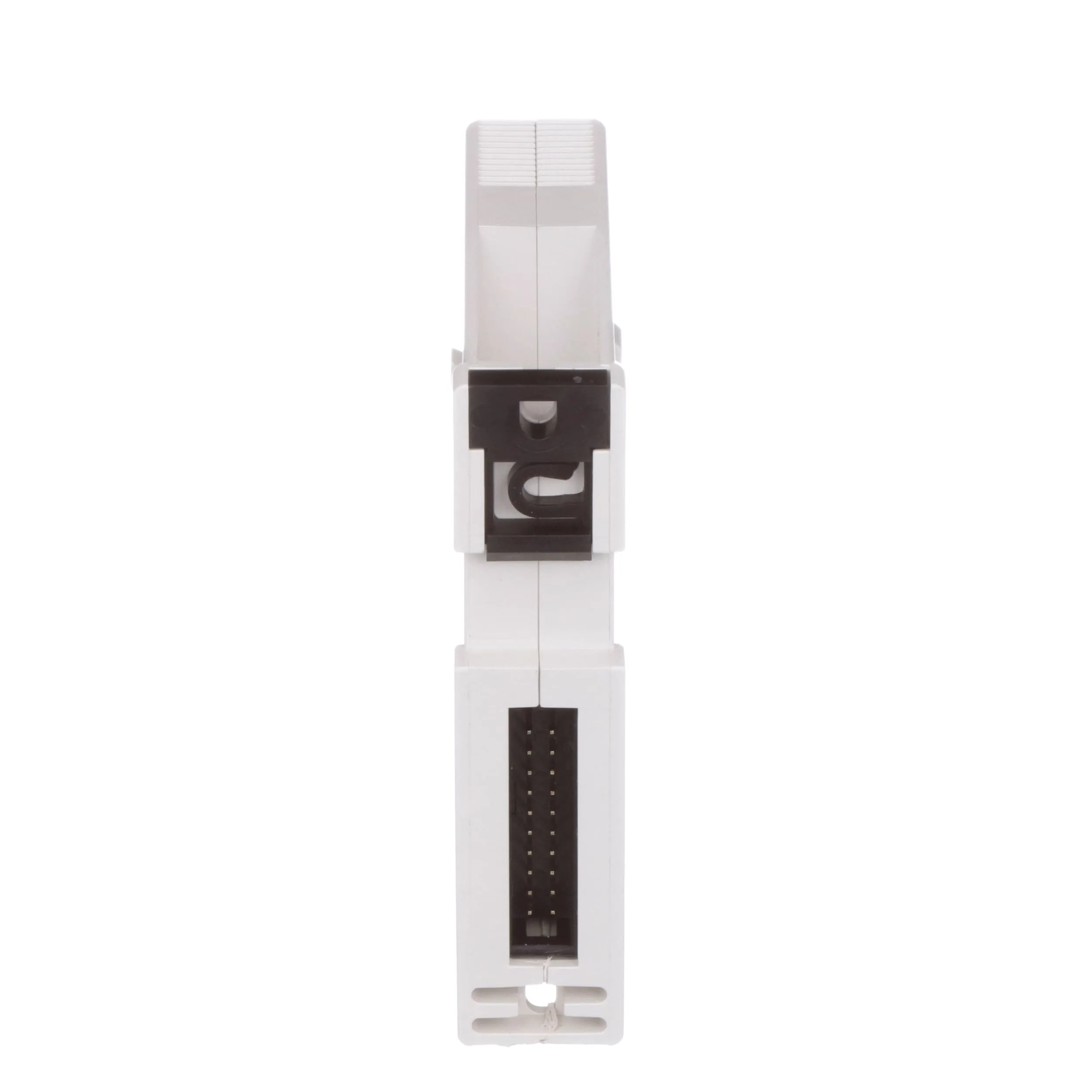

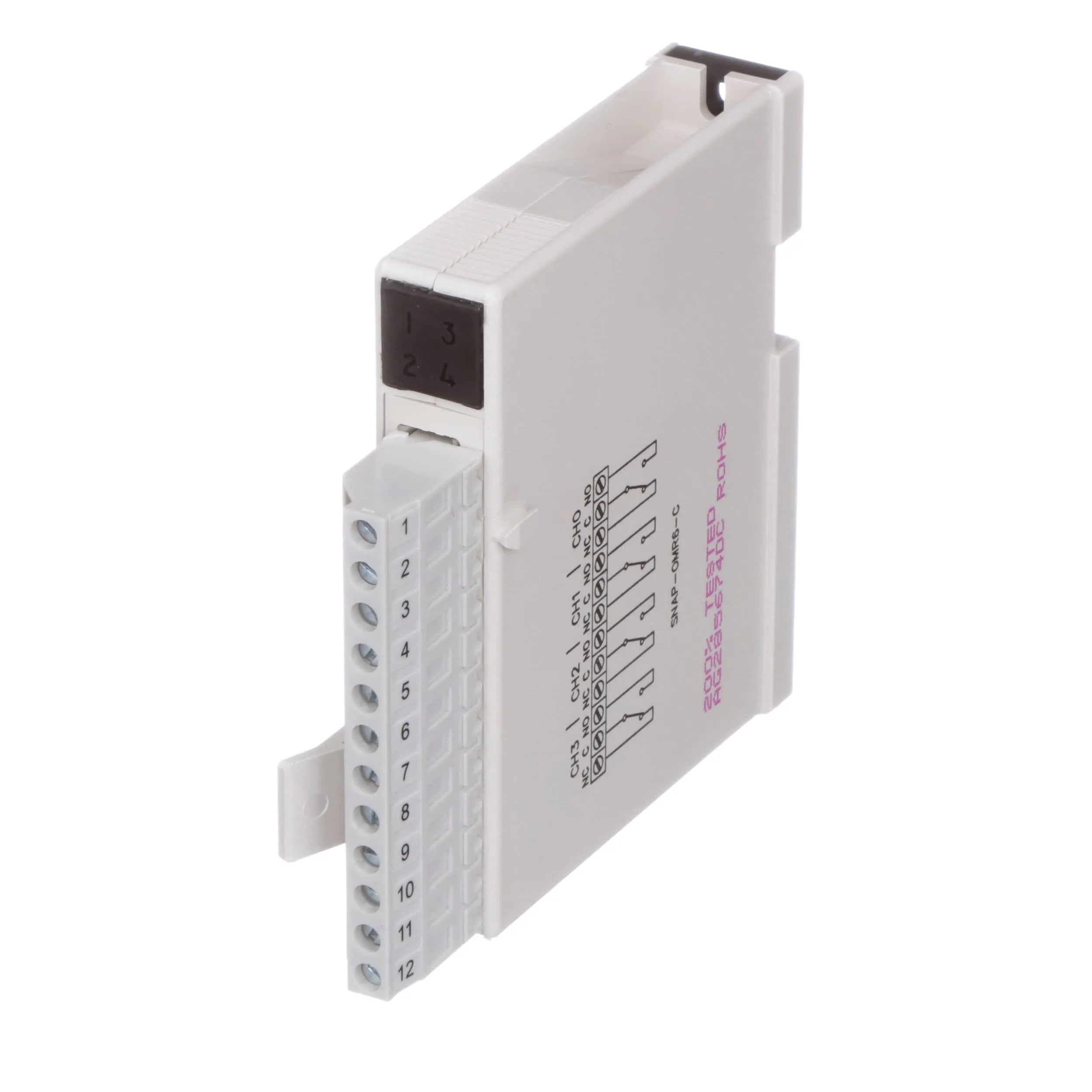

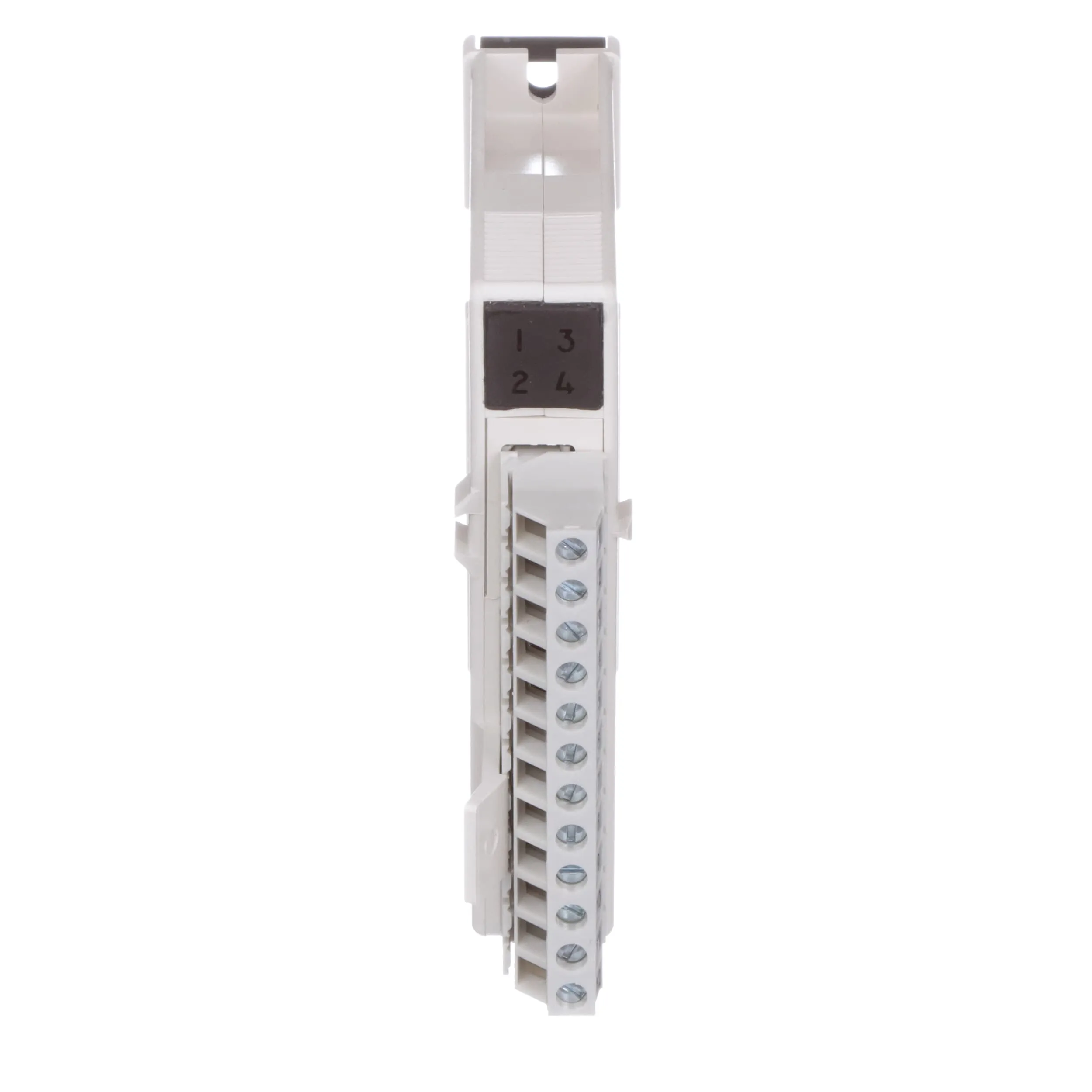

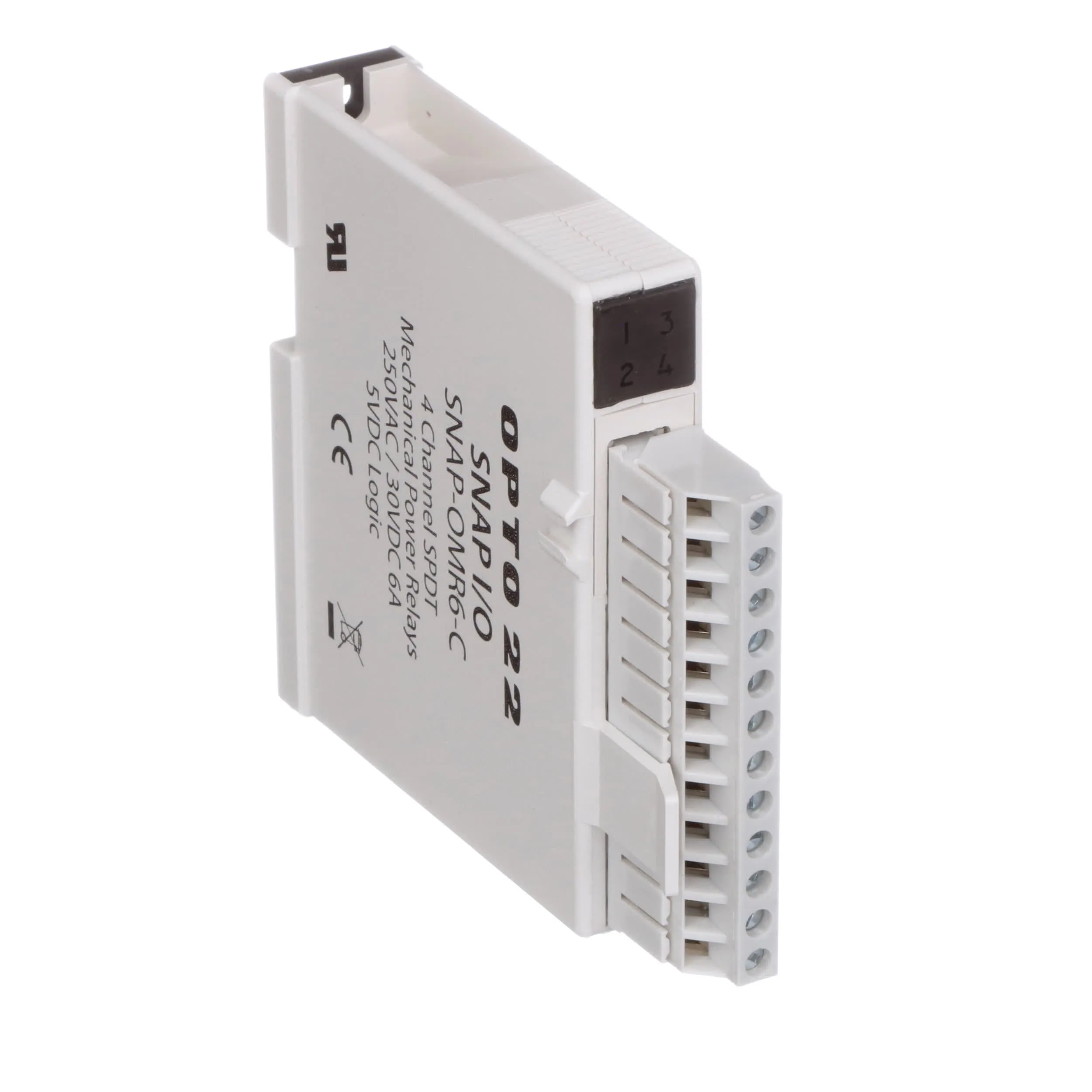

The SNAP-OMR6-C mechanical power relay output module offers four channels of switching for up to 250 VAC or 30 VDC, 6 amp loads. Each of the four mechanical contacts can be used as normally open or normally closed.
