| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Communication | RS-422/485 |
| Current, Supply | 1 A |
| Depth | 0.118" (3mm) |
| Dimensions | 83.82 x 46.35 x 111 mm |
| For Use With | I/O Rack ; SNAP PAC Systems |
| Input Current | 1 A |
| Input Type | Analog, Digital |
| Length | 3.3" (83.82mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Inputs | 32 Input |
| Number of Outputs | 32 Output |
| Output Type | Analog, Digital |
| Primary Type | Controller |
| Product Header | Analog/Digital Modbus Slave Brain |
| Series | |
| Special Features | Communicates via RS485 in ASCII & RTU Modes ; Control both Analogue & Digital I/O Module on its Rack ; Work with any Modbus Master Device |
| Standards | CE Marked, RoHS Compliant, DFARS |
| Supply Voltage | 5 to 5.2 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Terminal Type | 2/4 Wire |
| Termination | 2/4 Wire |
| Type | PC Based |
| Width | 1.825" (46.35mm) |
Overview

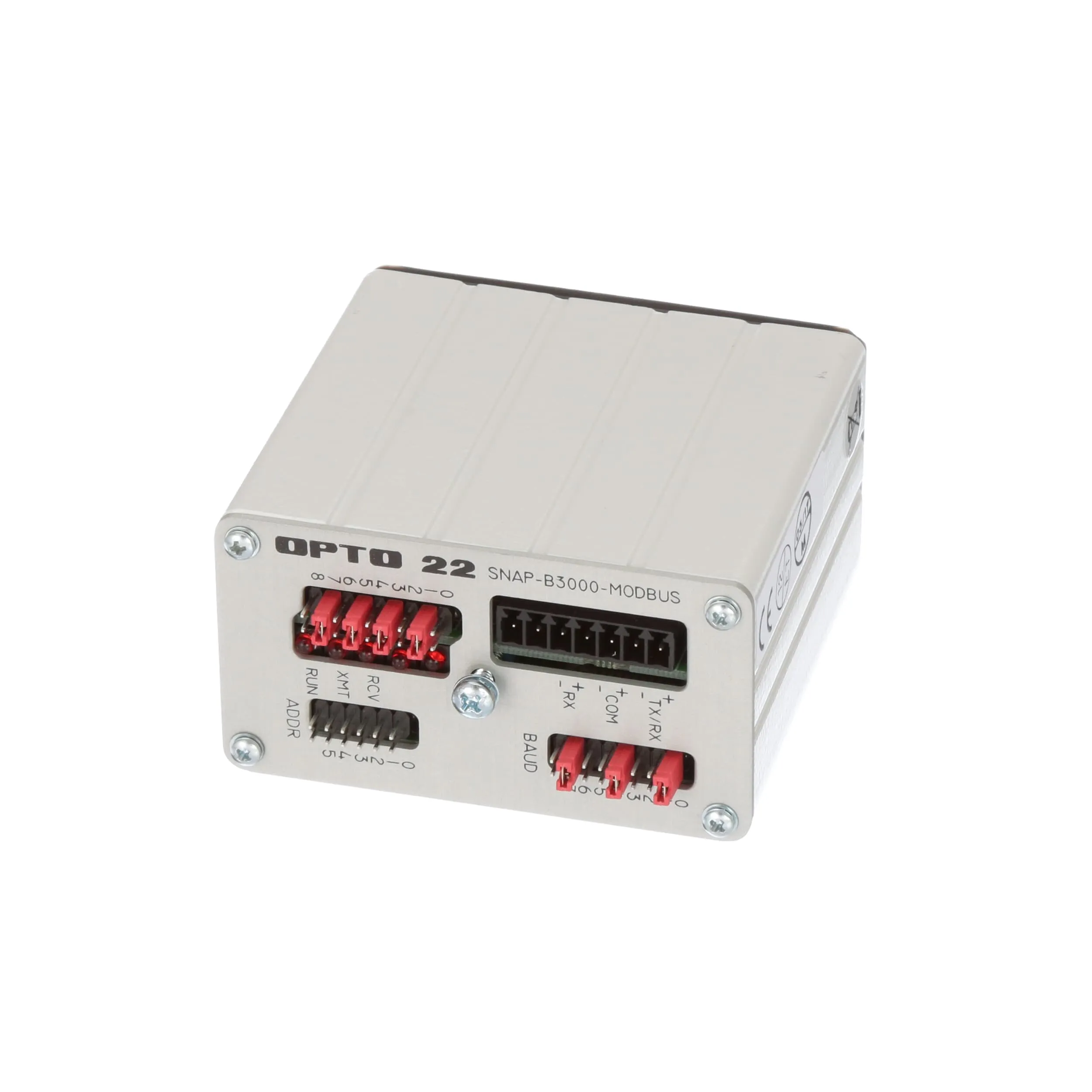

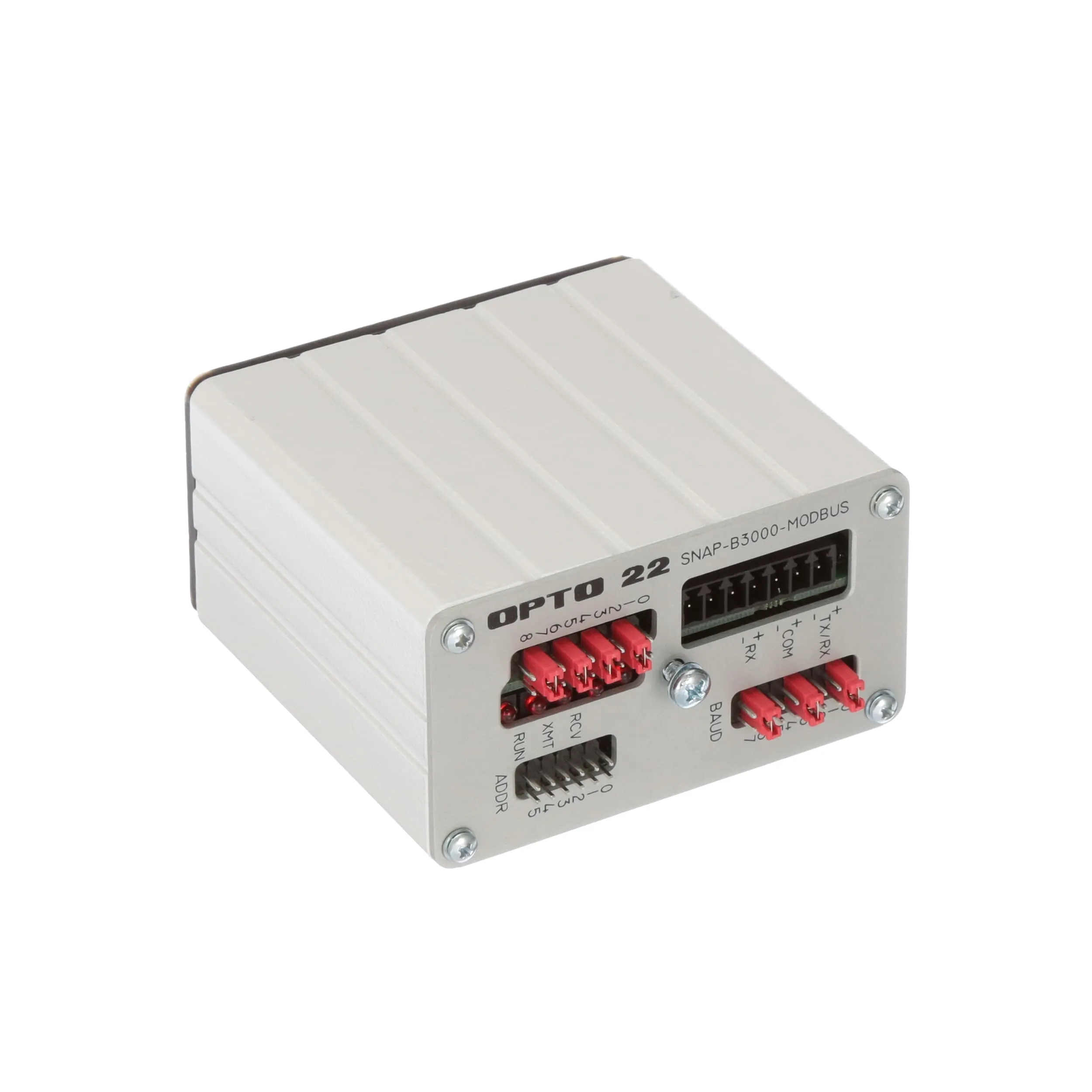

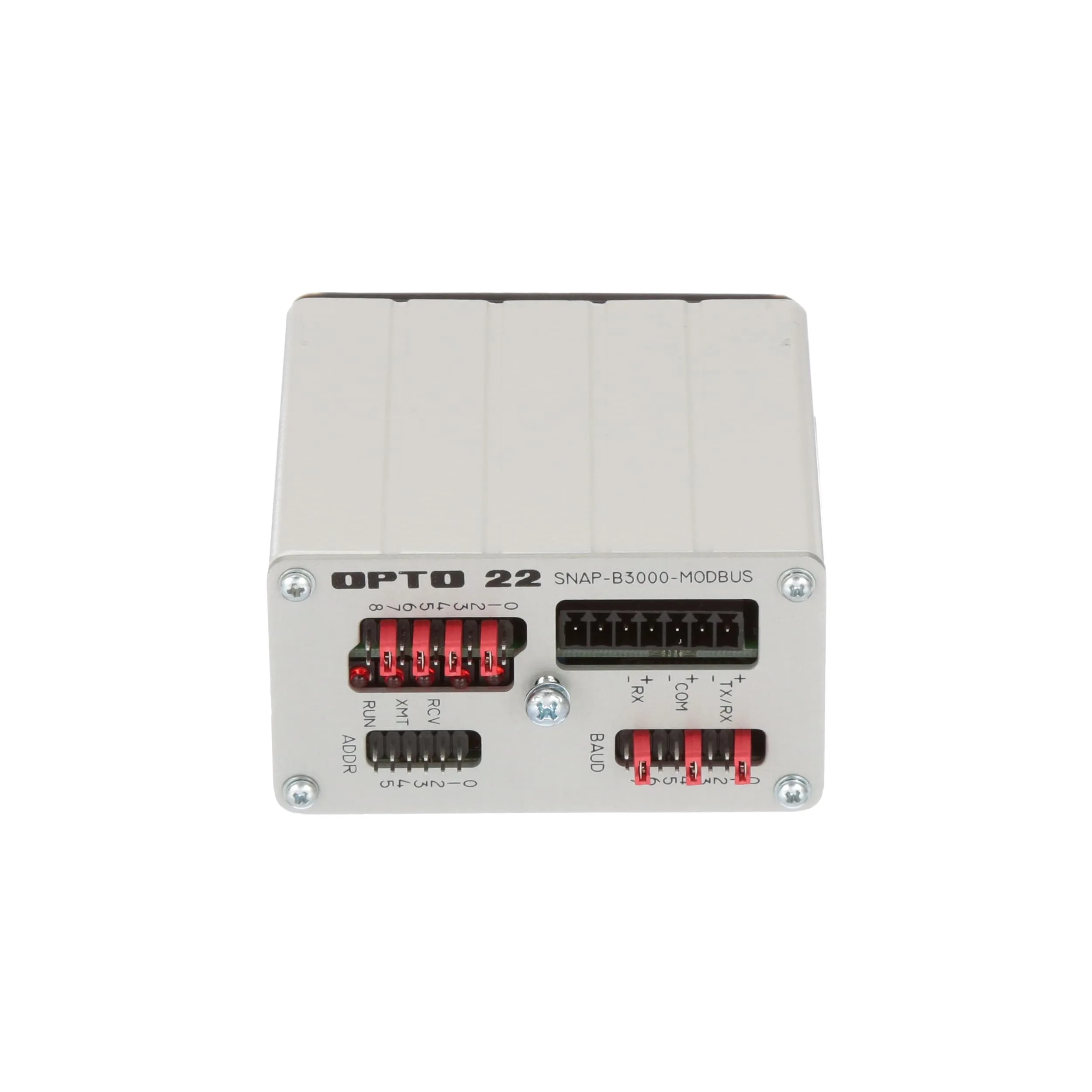

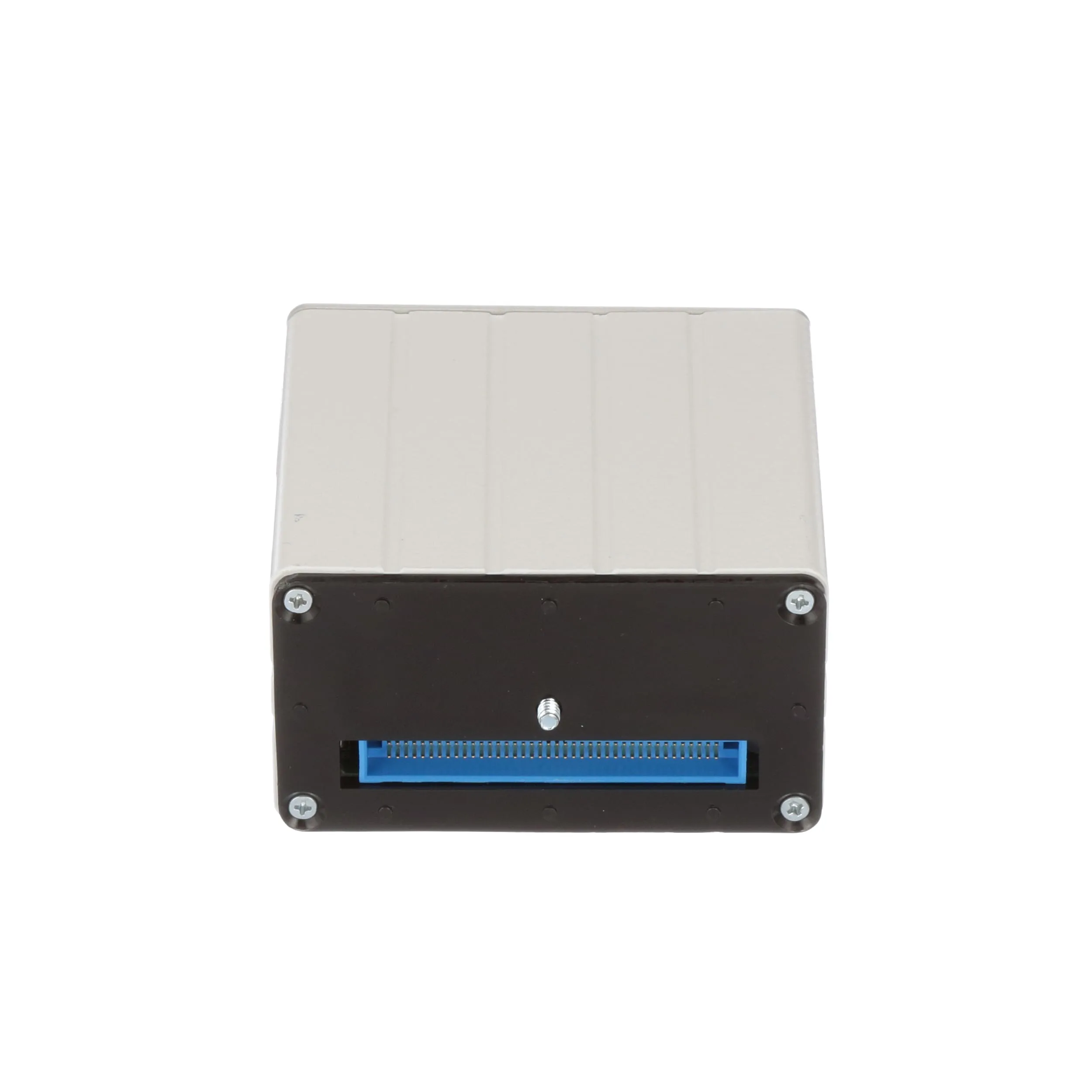

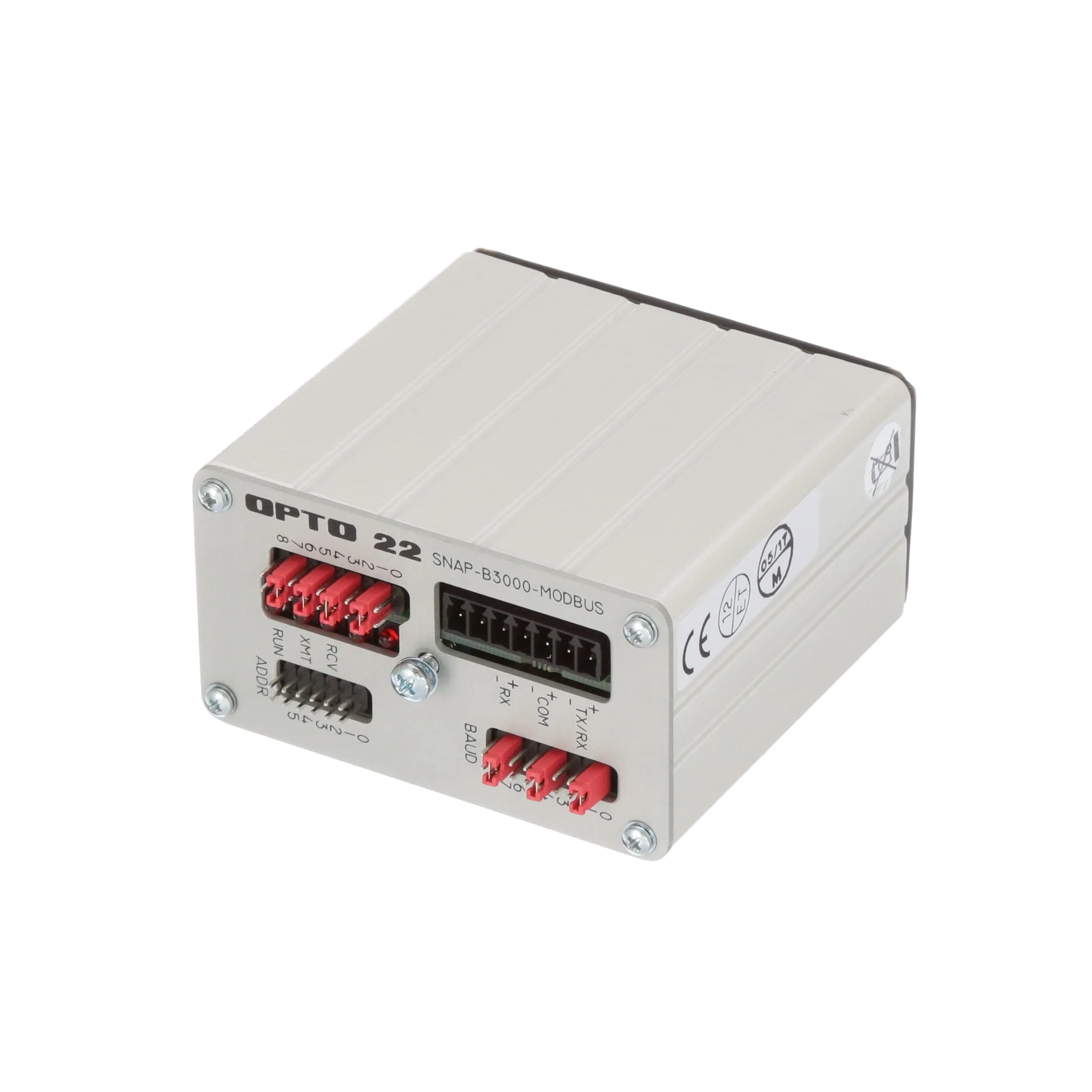

With the SNAP-B3000-Modbus brain, you can use state-of-the-art Opto 22 industrial I/O hardware with your existing Modbuscompatible
controller. The SNAP-B3000-Modbus is one of Opto 22's high-performance brains designed to remotely control a mix of both analog and digital I/O modules using the SNAP B-Series I/O mounting racks. With SNAP B Series racks and any combination of compatible analog and digital SNAP I/O® modules, this brain provides a powerful and sophisticated I/O handling system. The onboard intelligence of the SNAP-B3000-Modbus offers many distributed control functions. The SNAP-B3000-MODBUS works with any Modbus master device. The SNAP-B3000-Modbus brain communicates to its master controller via RS-485 using the Modbus slave protocol in both ASCII and RTU modes. Serial communication from 300 baud to 115,200 baud is supported
