Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Connection to Host | Backplane |
| Current Rating | 5 mA |
| Depth | 0.197" (5mm) |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| For Use With | SNAP PAC System |
| Input Current | 150 mA |
| Isolation Voltage | 4000 V |
| Length | 3.25" (82.55mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Output |
| Mounting Type | DIN Rail Mount |
| Number of Channels | 2 |
| Number of I/O Ports | 2 |
| Number of Outputs | 2 Output |
| Operating Temperature | 0 to 70 °C |
| Output | 0 to 10 VDC |
| Output Type | Analog |
| Output, Range | 0 to 10 VDC |
| Primary Type | Control |

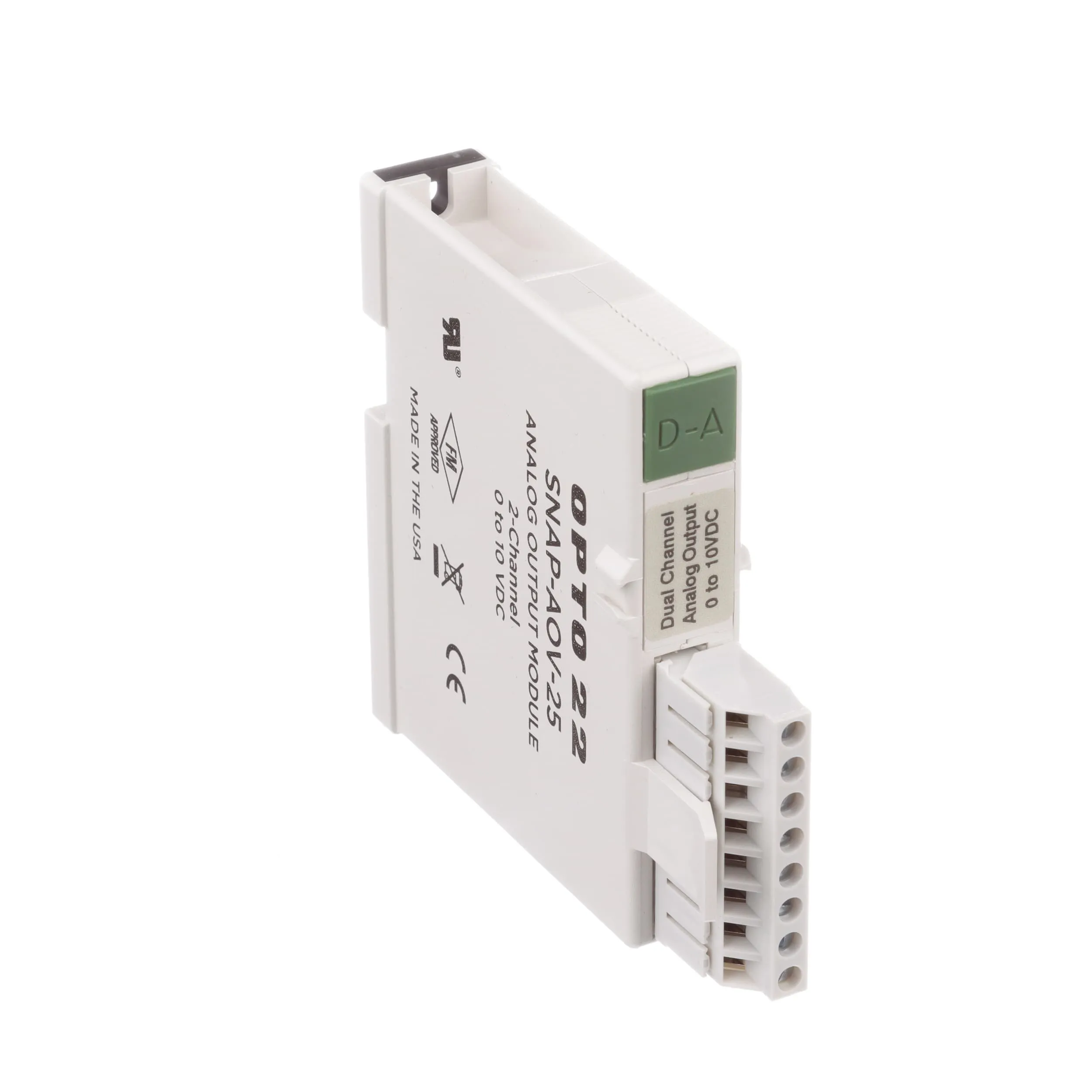

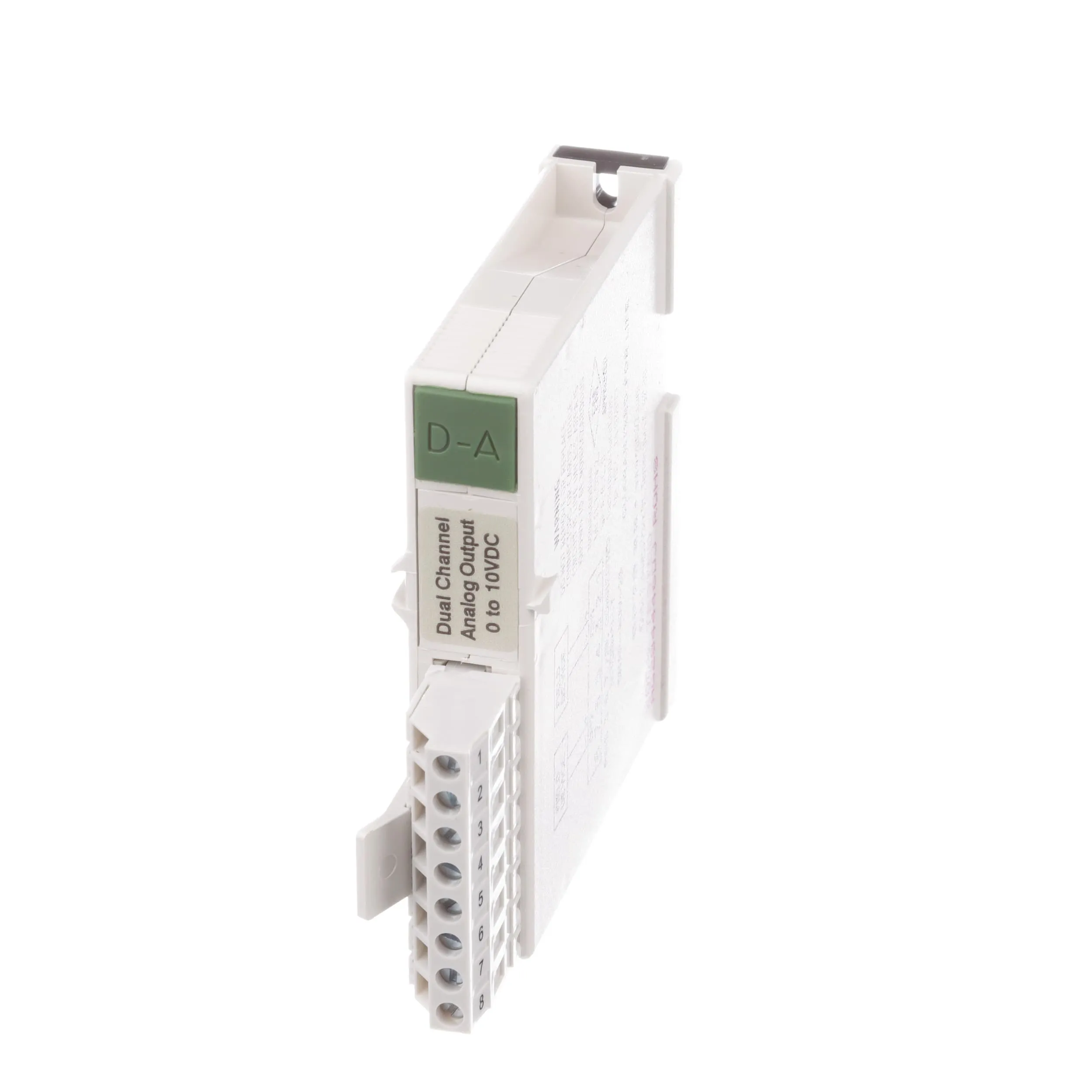

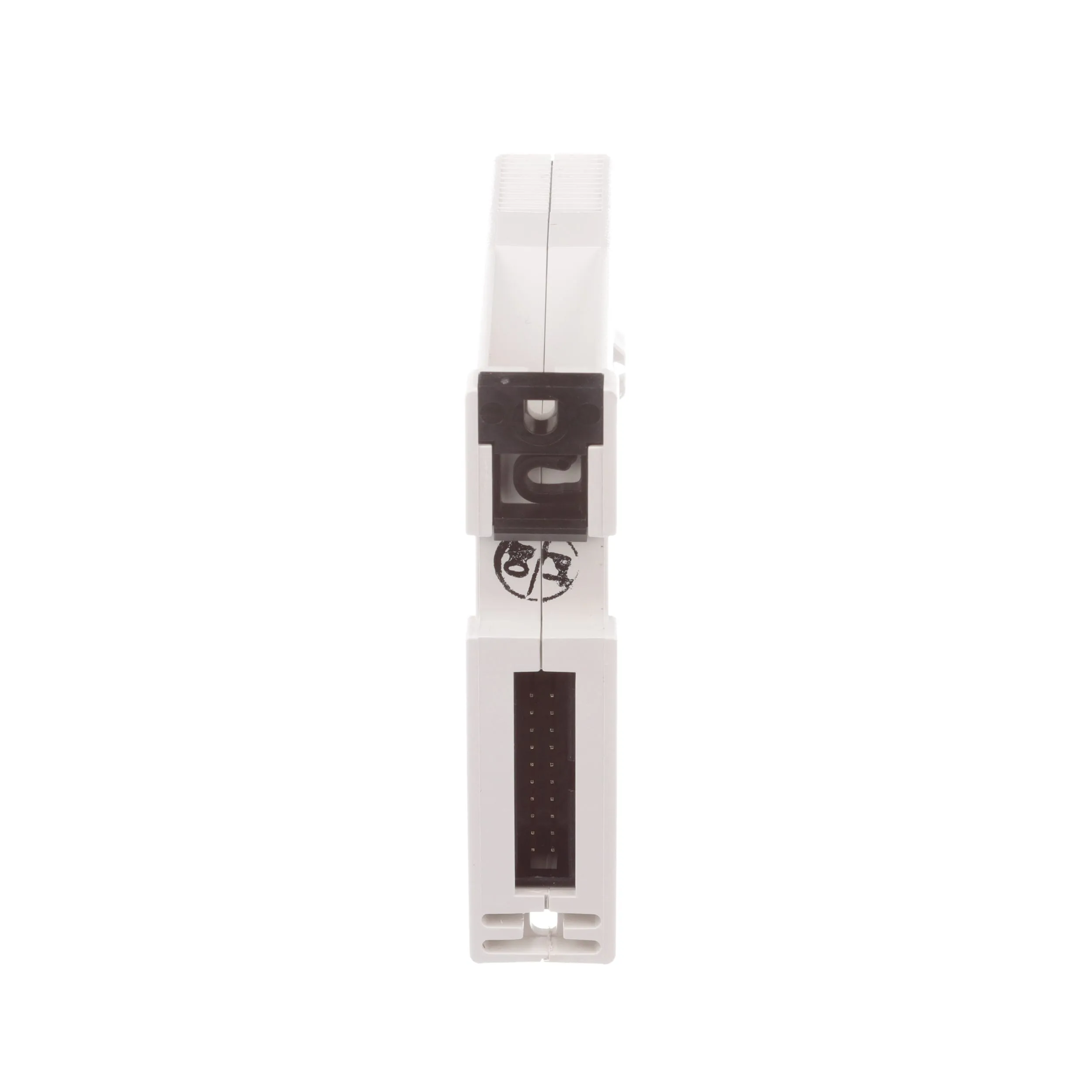

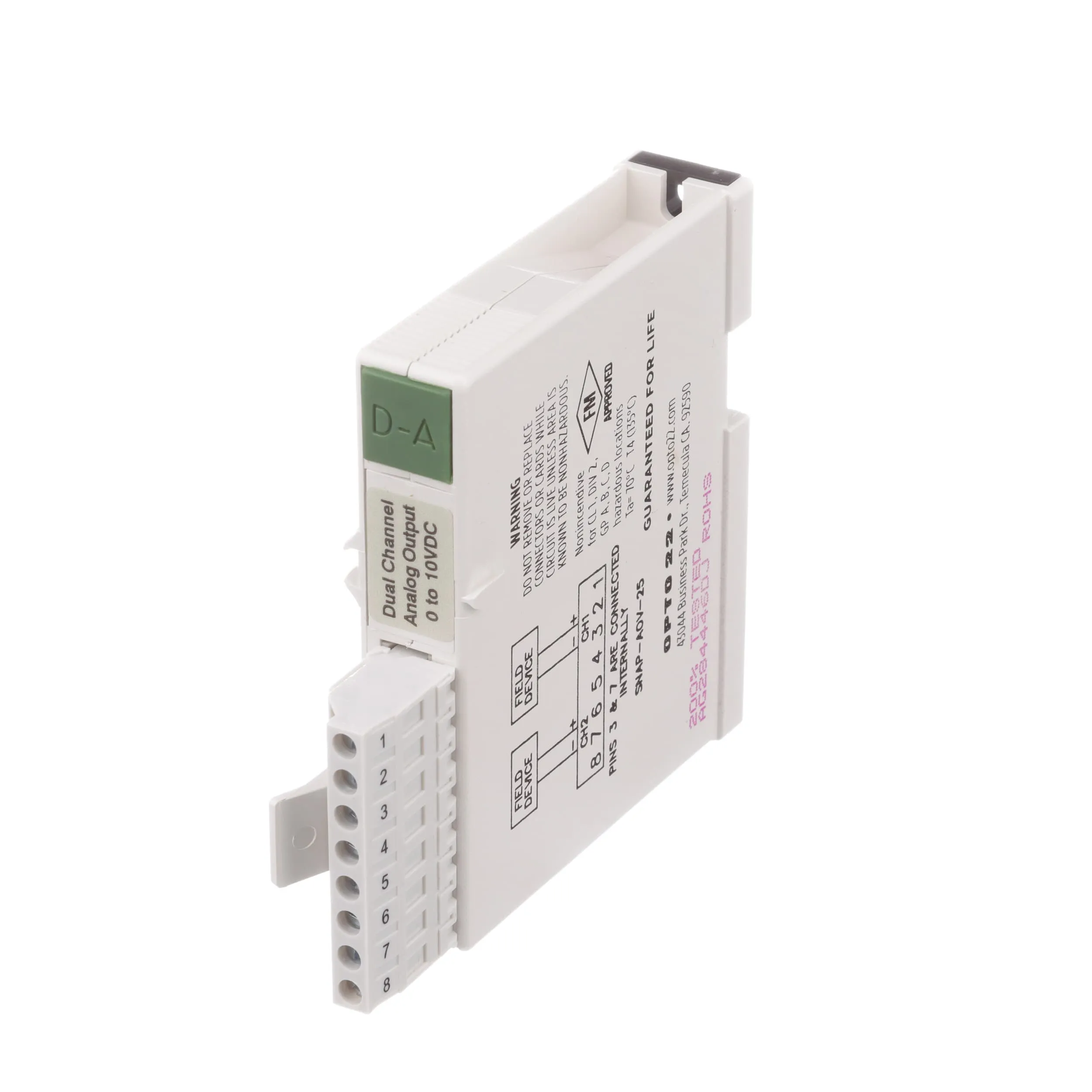

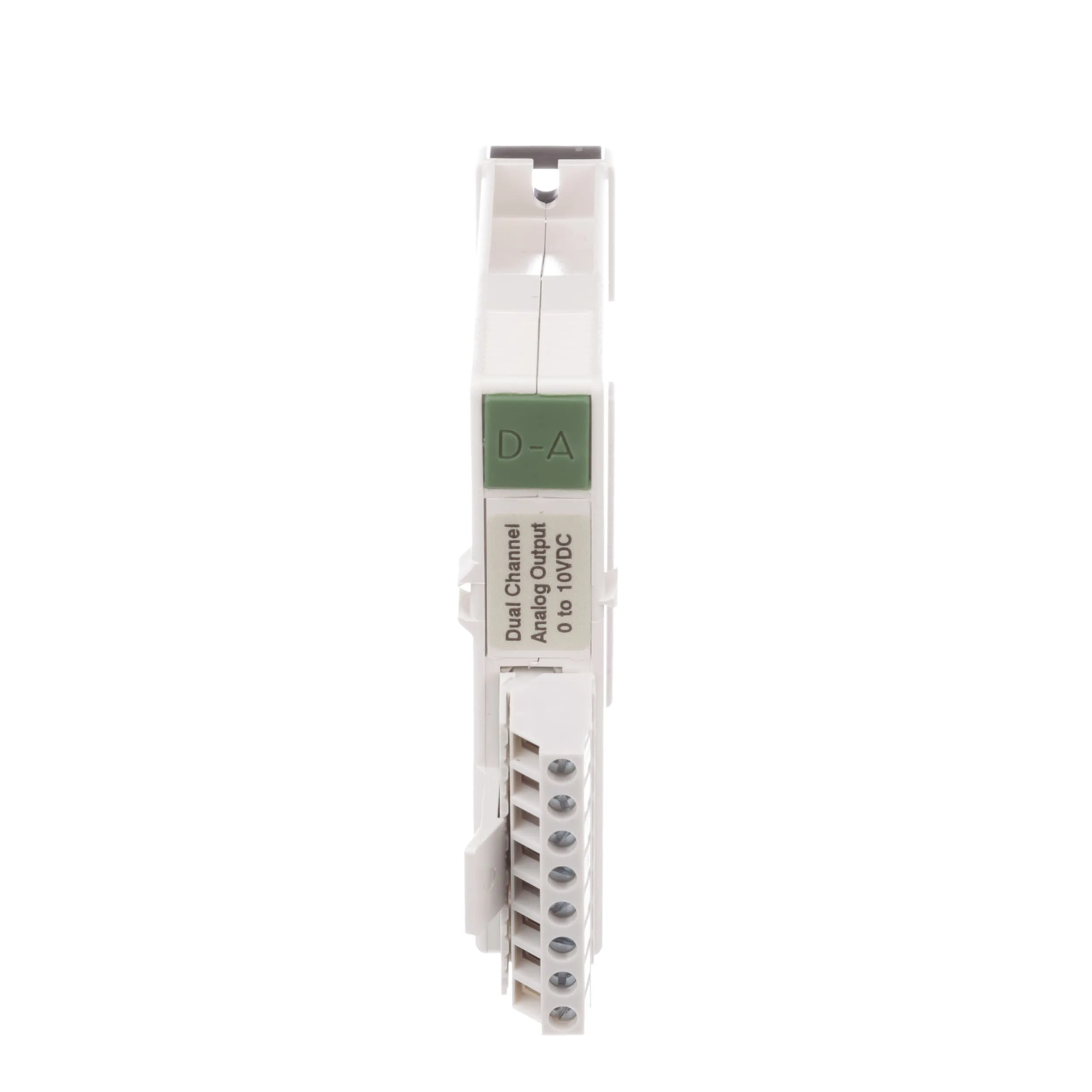

| Product Header | SNAP Analog Output Module |
| Resolution | 2.44 mV |
| Response Time | 3 ms |
| Series | |
| Special Features | Convenient Pluggable Wiring ; Optical Isolation |
| Standards | UL Listed, CE Marked, RoHS Compliant, DFARS, FM Approved |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Time, Response | 3 ms |
| Type | Output |
| Width | 0.72" (18.29mm) |
