Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; HVAC Refrigeration ; Industrial Automation ; Process Control ; Monitoring |
| Connection to Host | Backplane |
| Depth | 0.197" (5mm) |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| For Use With | SNAP PAC Brain ; R-Series Controllers |
| Input | 100 Ohms |
| Input Current | 190 mA |
| Input Type | Analog |
| Isolation Voltage | 1500 V |
| Length | 3.25" (82.55mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Input |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 2 |
| Number of I/O Ports | 2 |
| Primary Type | Control |
| Product Header | Snap Analog Input Module |
| Response Time | 25 ms |
| Series | |
| Special Features | Optical Isolation ; RTD Input ; Transformer Isolation |
| Standards | UL Listed, CE Marked, RoHS Compliant, DFARS, CE Marked |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Temperature Range | -200 to 850 °C |
| Type | Input |
| Width | 0.72" (18.29mm) |
Overview

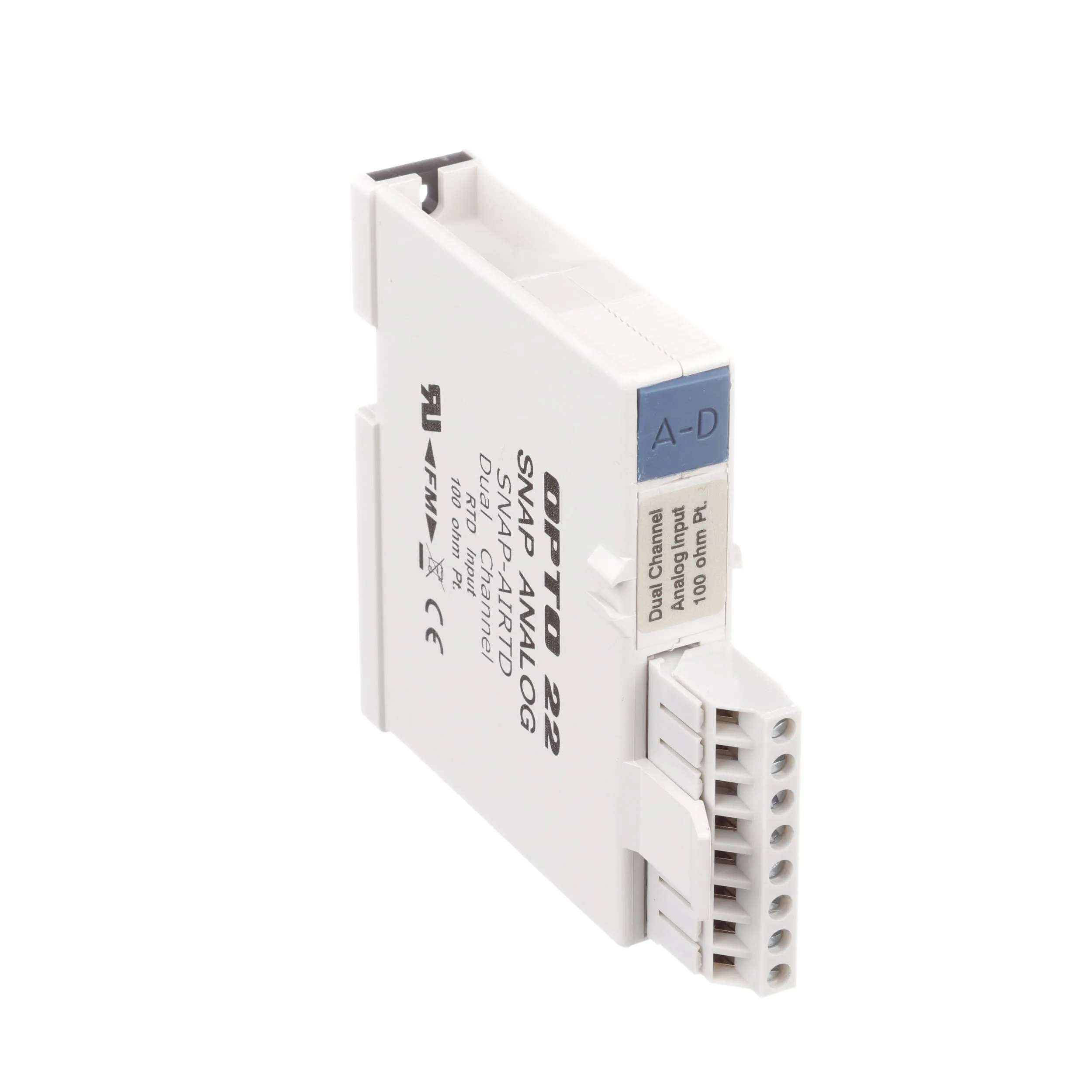

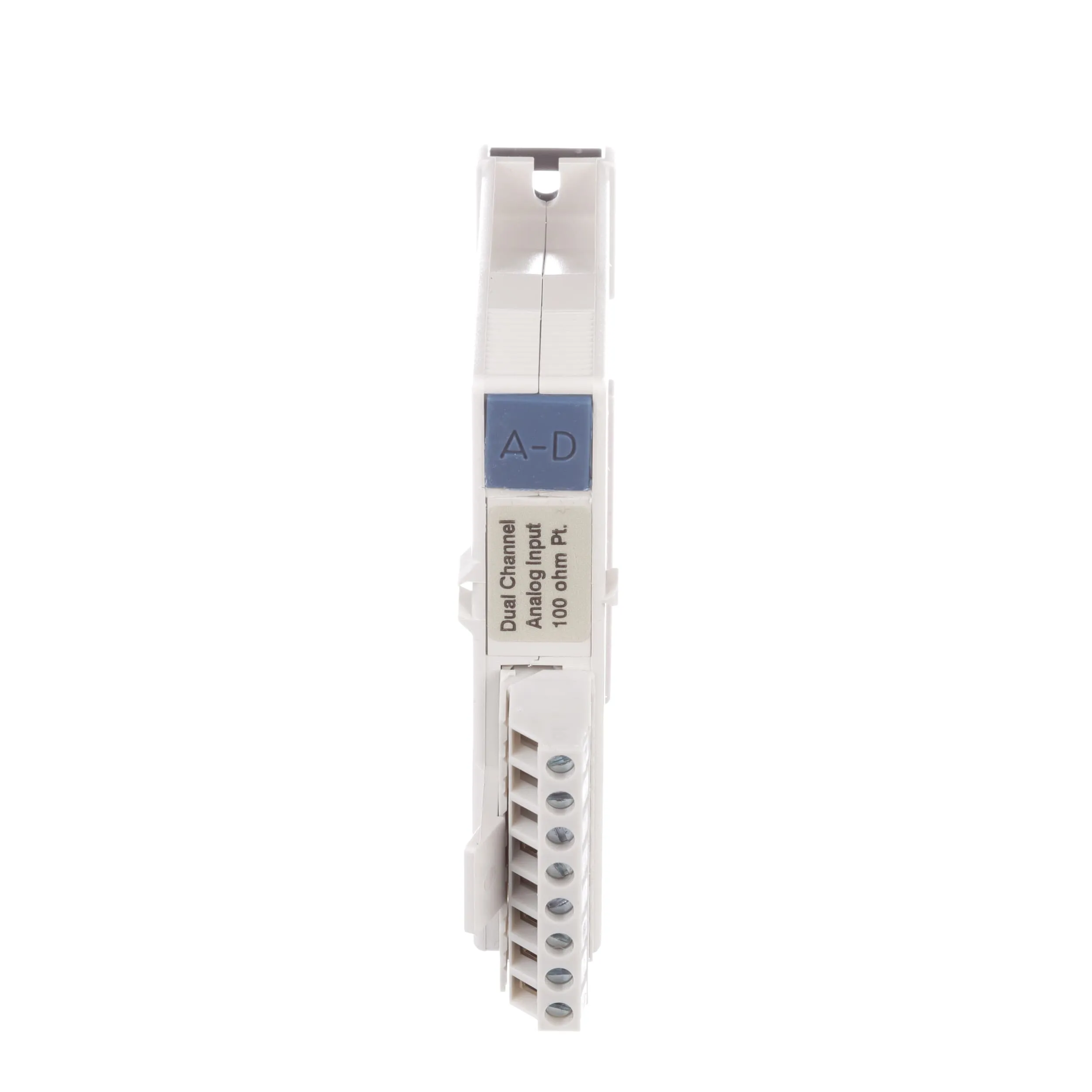

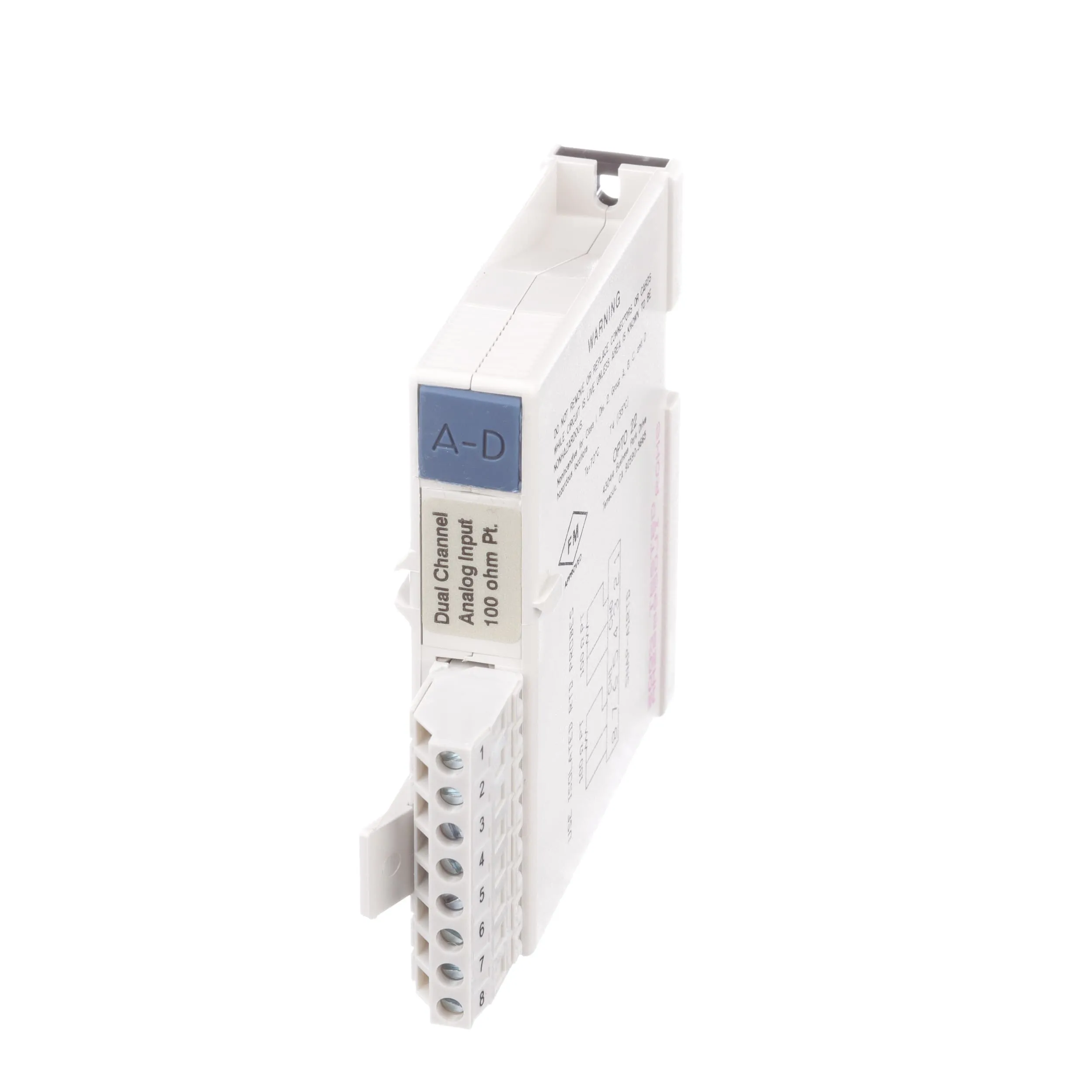

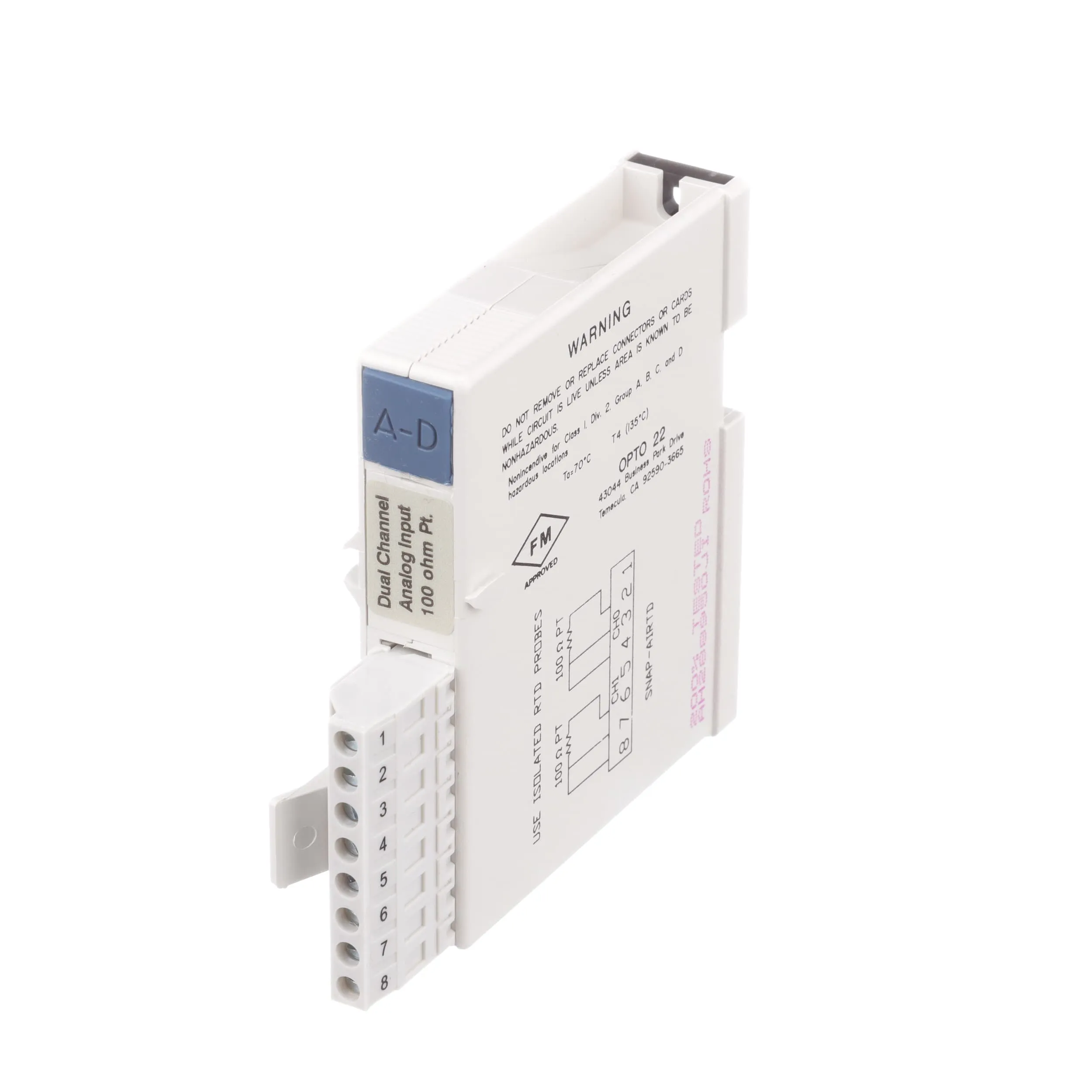

Snap Analog Input Module
The module provides a nominal input range of -200 to 850 °C.
