Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; HVAC Refrigeration ; Industrial Automation ; Process Control ; Monitoring |
| Connection to Host | Backplane |
| Depth | 0.197" (5mm) |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| For Use With | SNAP PAC Brain ; R-Series Controllers |
| Input | 0 to 25000 Hz |
| Input Current | 190 mA |
| Input Type | Analog |
| Isolation Voltage | 1500 V |
| Length | 3.25" (82.55mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Module Type | Input |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 2 |
| Number of I/O Ports | 2 |
| Number of Inputs | 2 Input |
| Operating Temperature | 0 to 70 °C |
| Primary Type | Control |

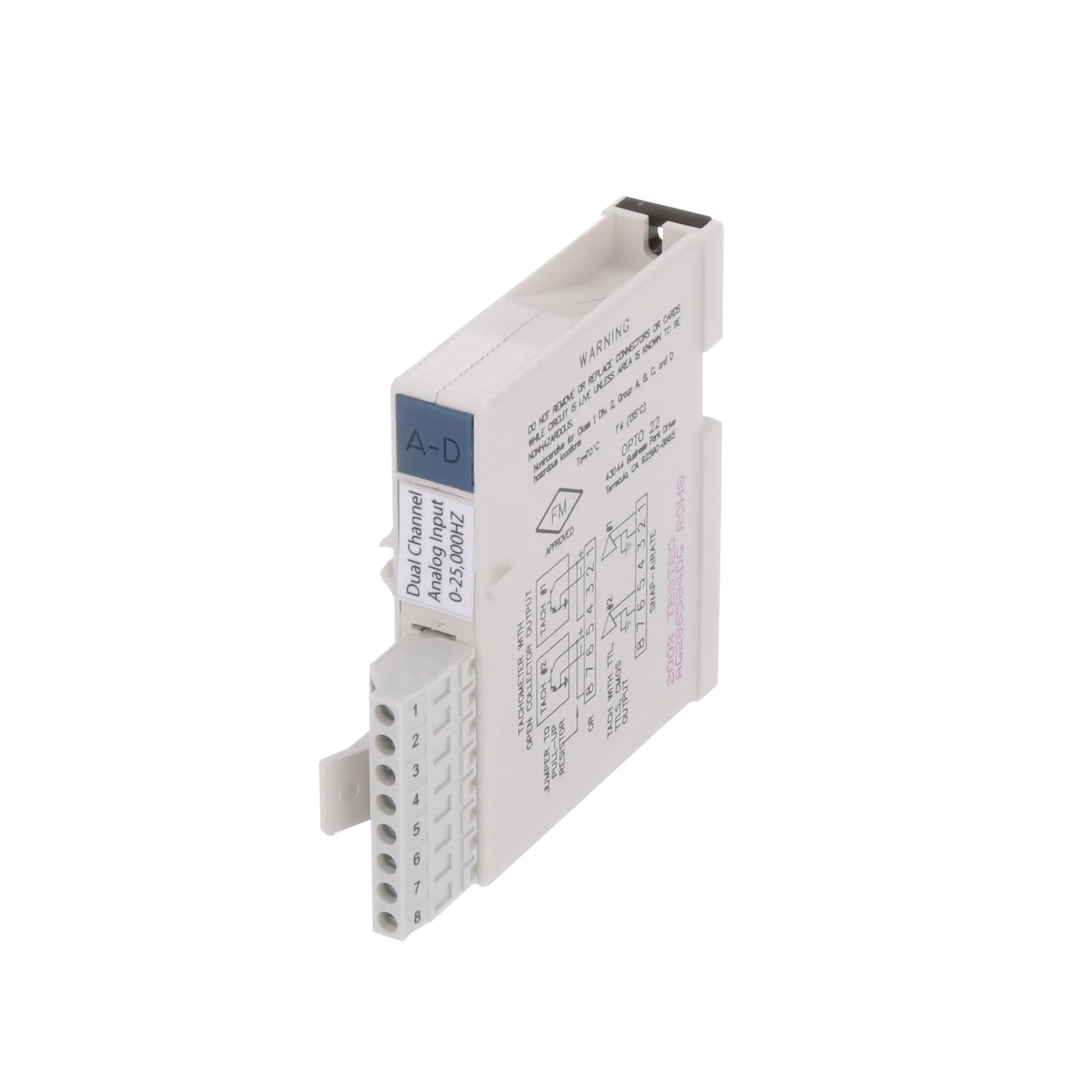

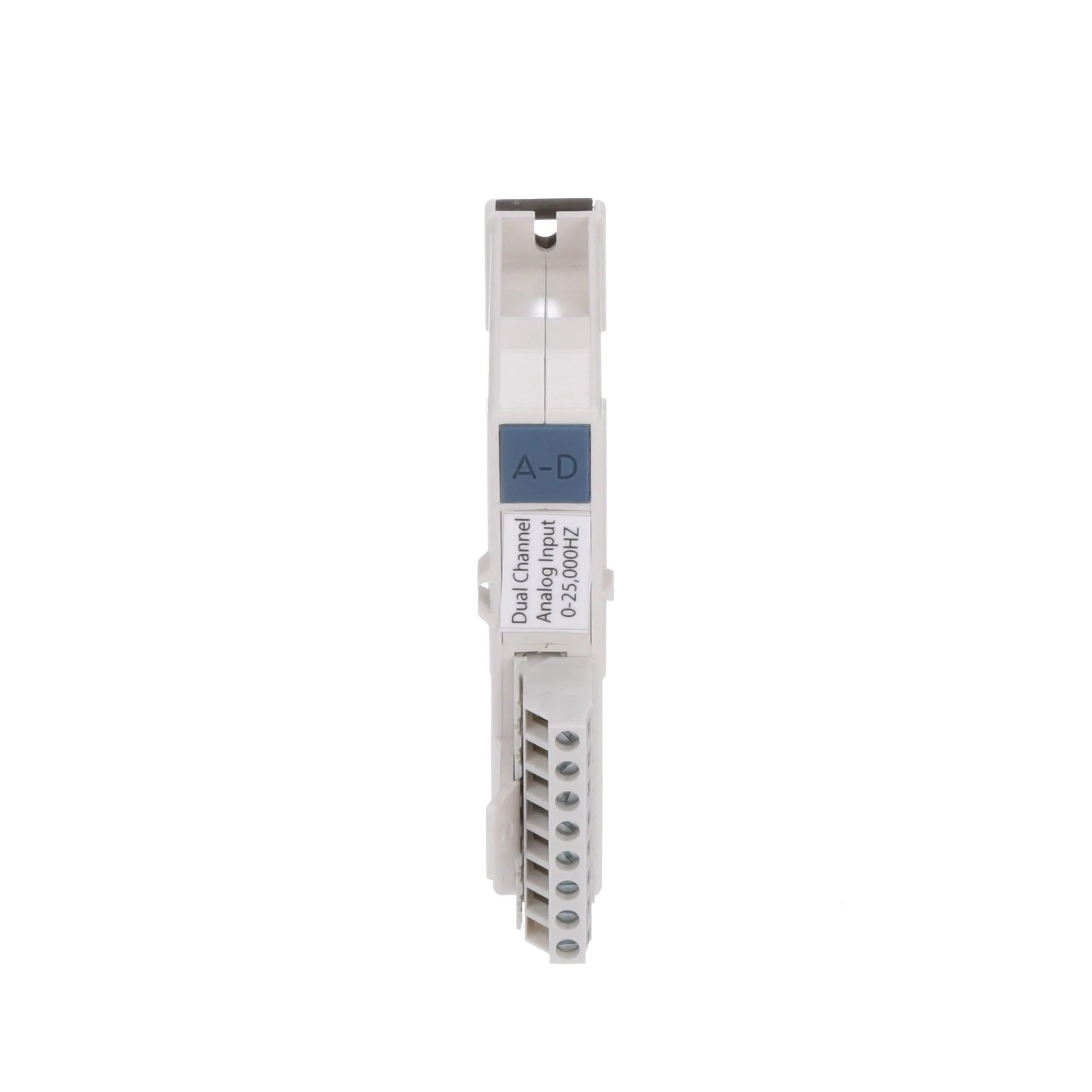

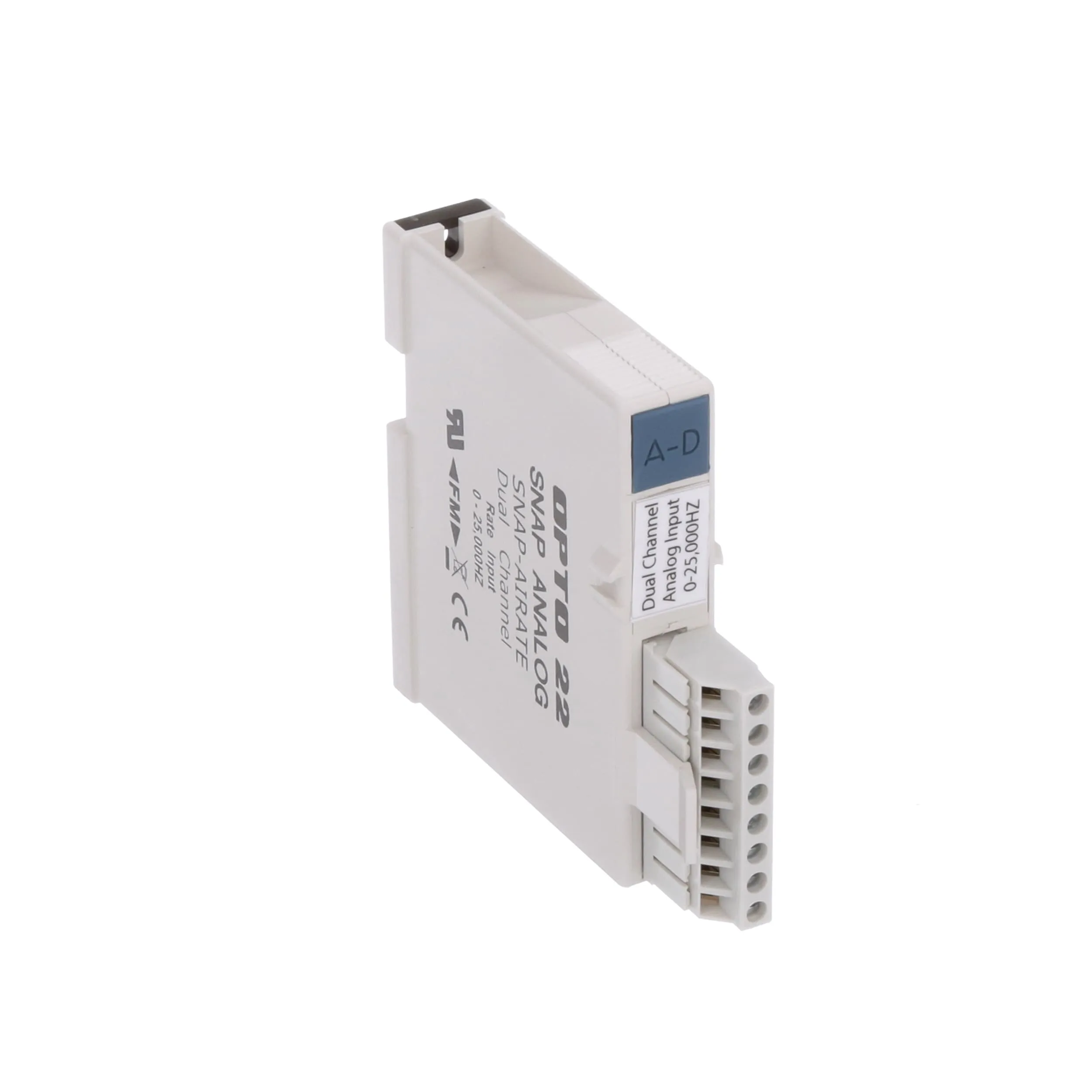

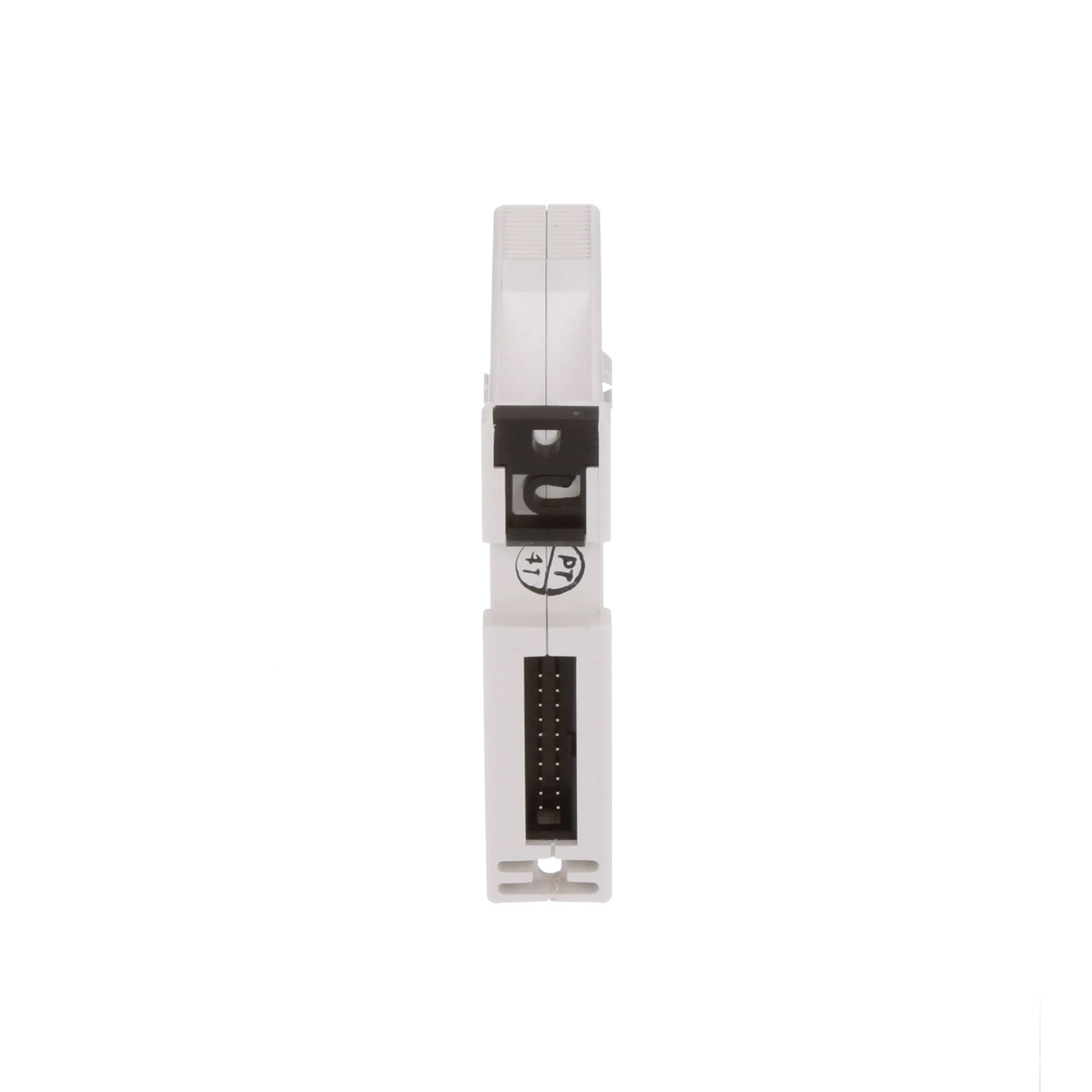

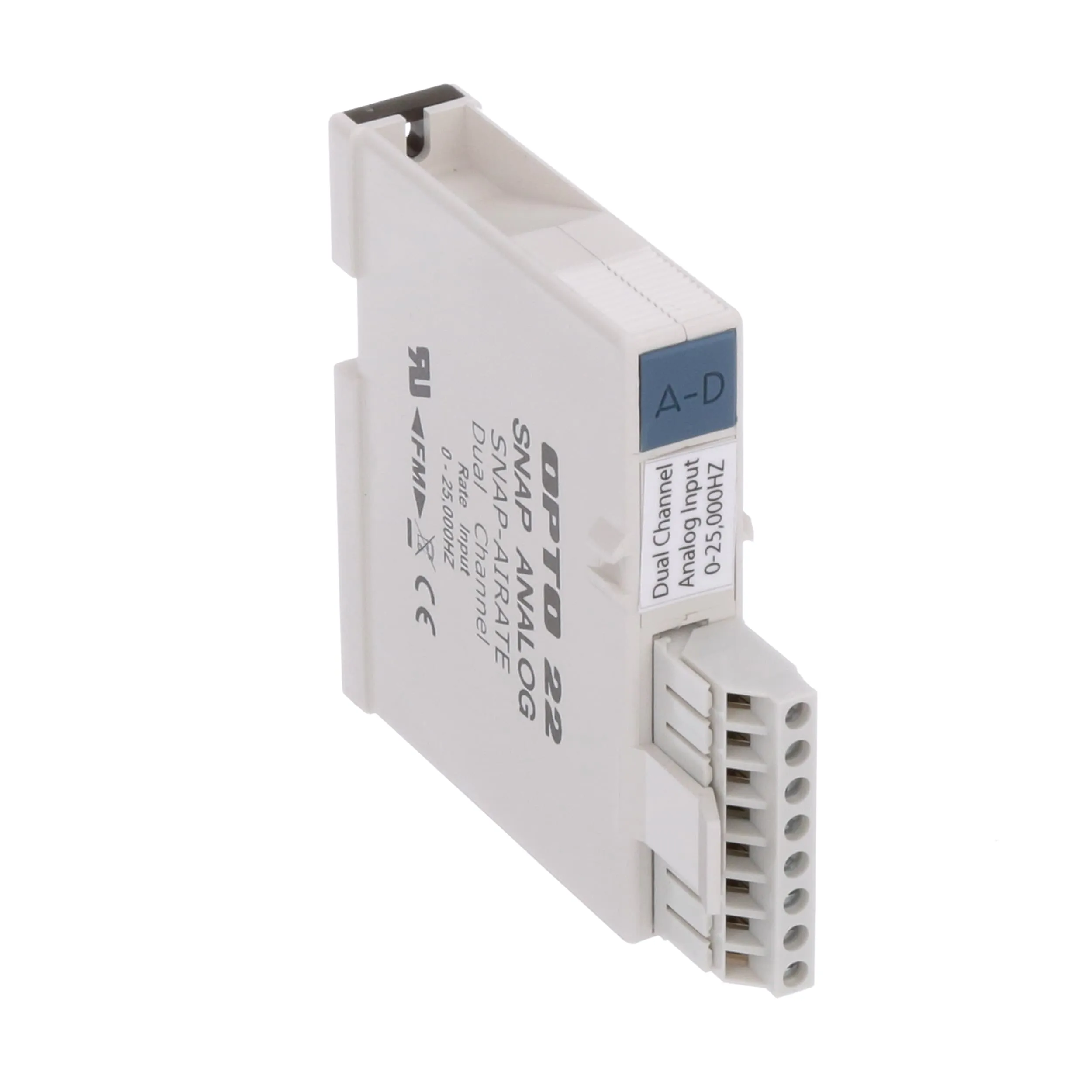

| Product Header | Snap Analog Input Module |
| Response Time | 4.2 sec. |
| Series | |
| Special Features | Optical Isolation ; Transformer Isolation |
| Standards | UL, CSA, CE Certified |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | 0 to 70 °C |
| Time, Response | 4.2 sec. |
| Type | Input |
| Width | 0.72" (18.29mm) |
Overview
Snap Analog Input Modules, 5 VDC @ 170 mA, 0 to 70 °C
The SNAP-AIMA module with 2 channels provide an input range of -20mA to 20mA. The four-channel module can be used only with SNAP Ultimate, SNAP Ethernet, and SNAP Simple brains. These modules do not supply loop excitation current. Since all inputs share a common reference, the module must be installed at the beginning or end of a typical 4 to 20mA loop.
