Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Connection to Host | Backplane |
| Current, Leakage | 100 uA @ 30 VDC (Output) |
| Depth | 0.157" (4mm) |
| Dimensions | 43.2 x 15.2 x 31.8 mm |
| For Use With | SNAP PAC System |
| Input | 180 to 280 VAC |
| Input Current | 100 μA |
| Input Type | Analog |
| Isolation Voltage | 4000 V |
| Length | 1.7" (43.2mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -30 °C |
| Module Type | Input |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 1 |
| Number of I/O Ports | 1 |
| Number of Inputs | 1 Input |
| Operating Temperature | -30 to 70 °C |
| Output Current | 50 mA |
| Primary Type | Data Acquisition |
| Product Header | Standard AC Input Module |
| Resistance, Input | 70 Kiloohms |
| Series | |
| Special Features | Optical Isolation |
| Standards | CSA Certified, CE Marked, RoHS Compliant, FM Approved |
| Supply Voltage | 24 VDC |
| Temperature Operating Range | -30 to 70 °C |
| Time, Turn-Off | 20 ms |
| Time, Turn-On | 20 ms |
| Type | Input |
| Voltage, Operating | 180 to 280 |
| Width | 0.598" (15.2mm) |
Overview

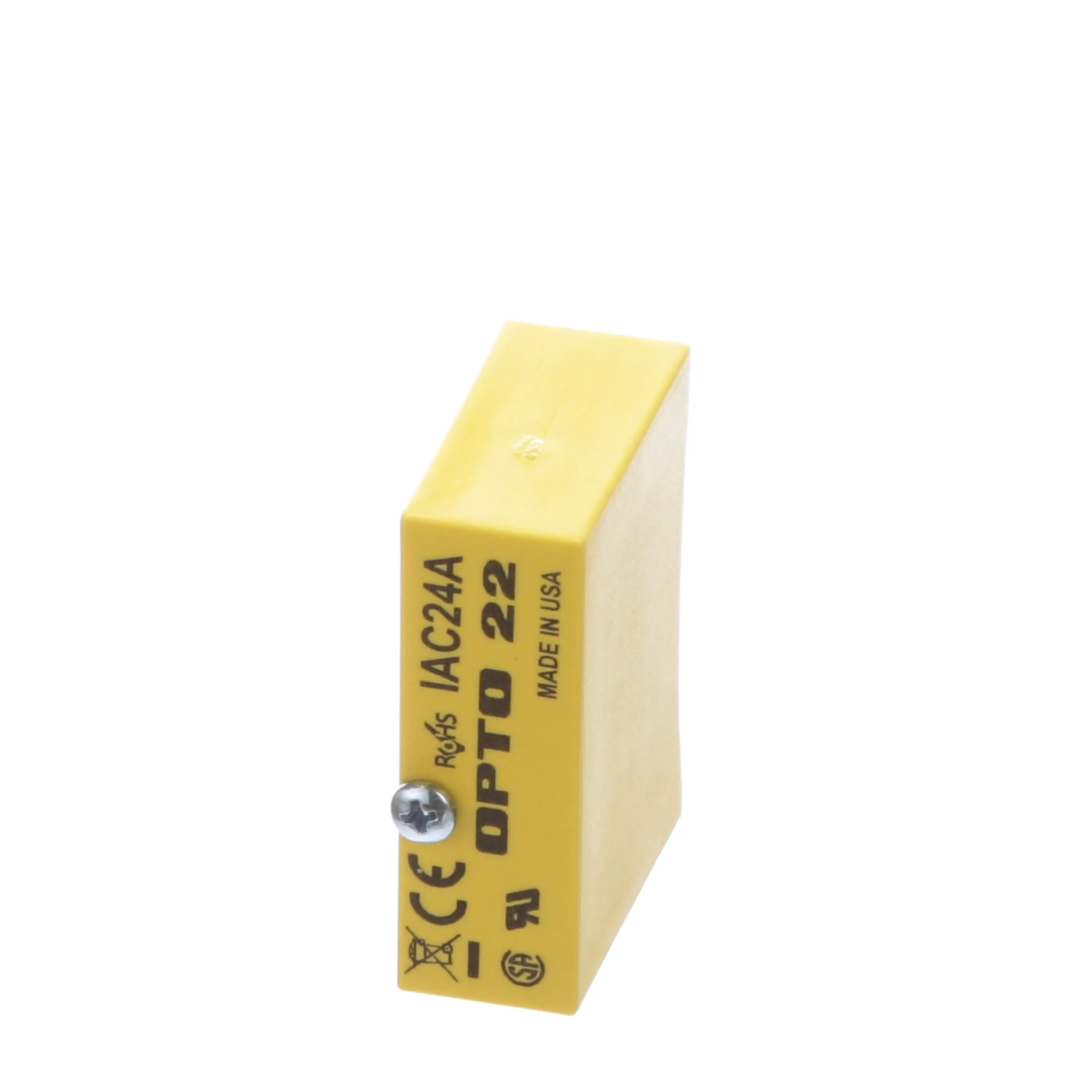

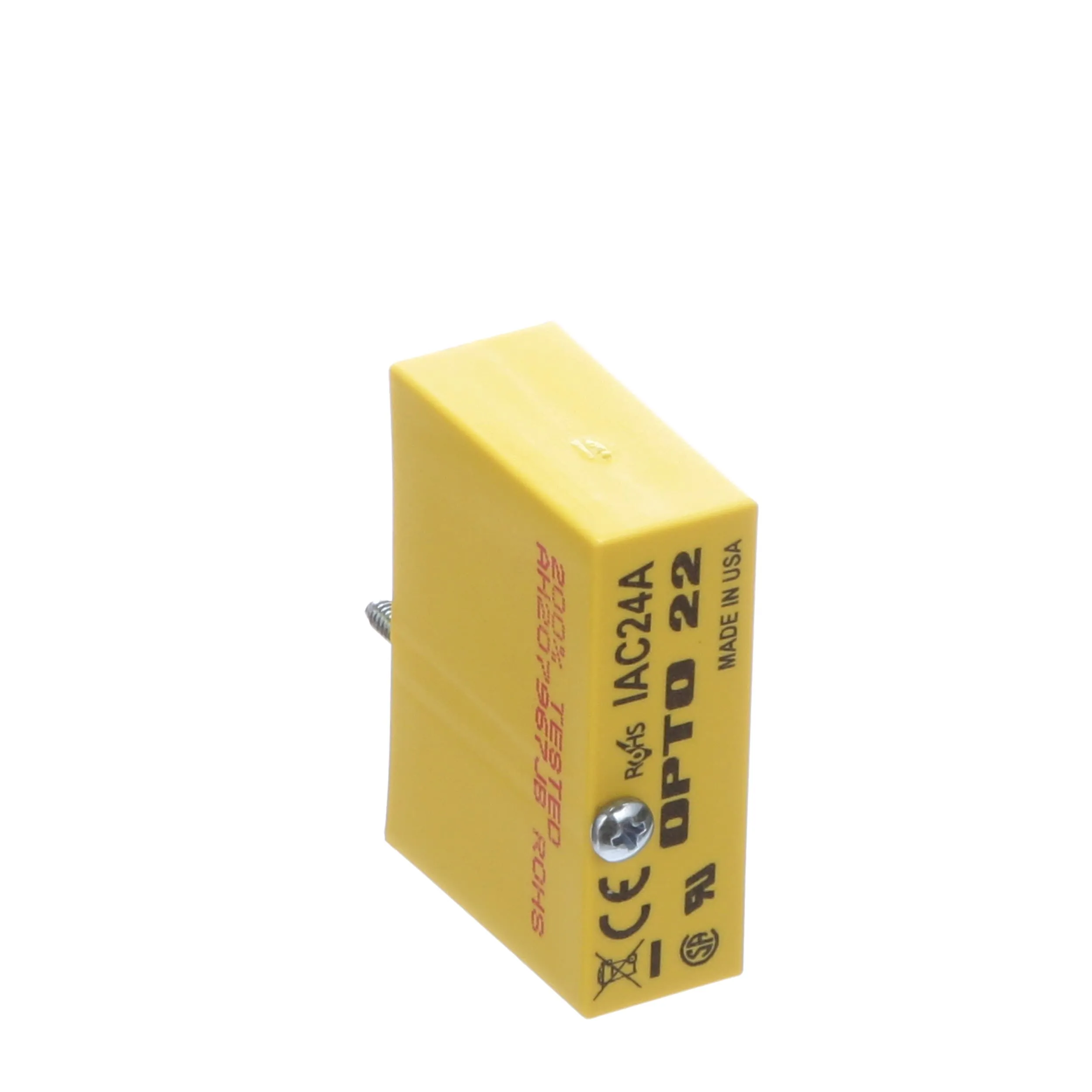

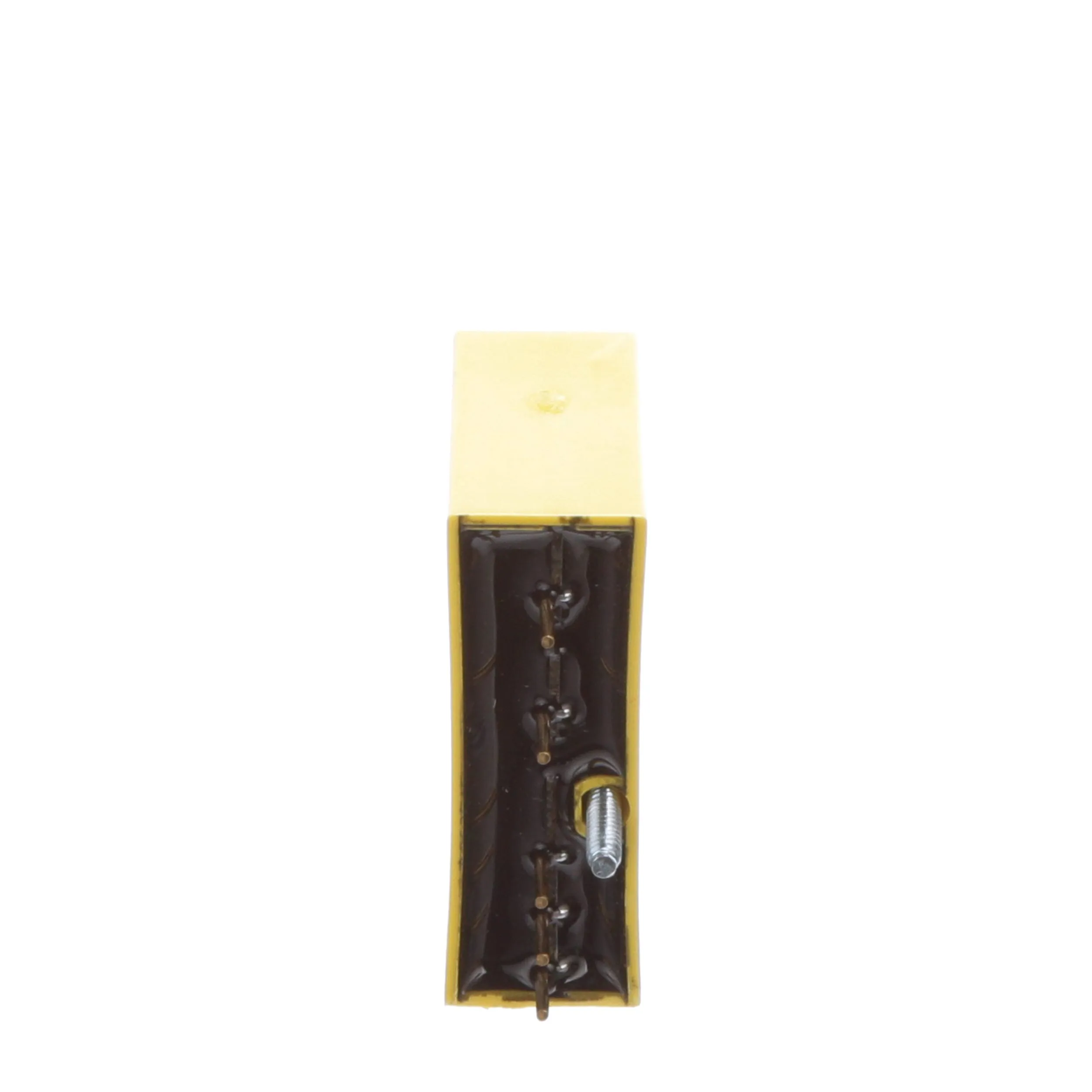

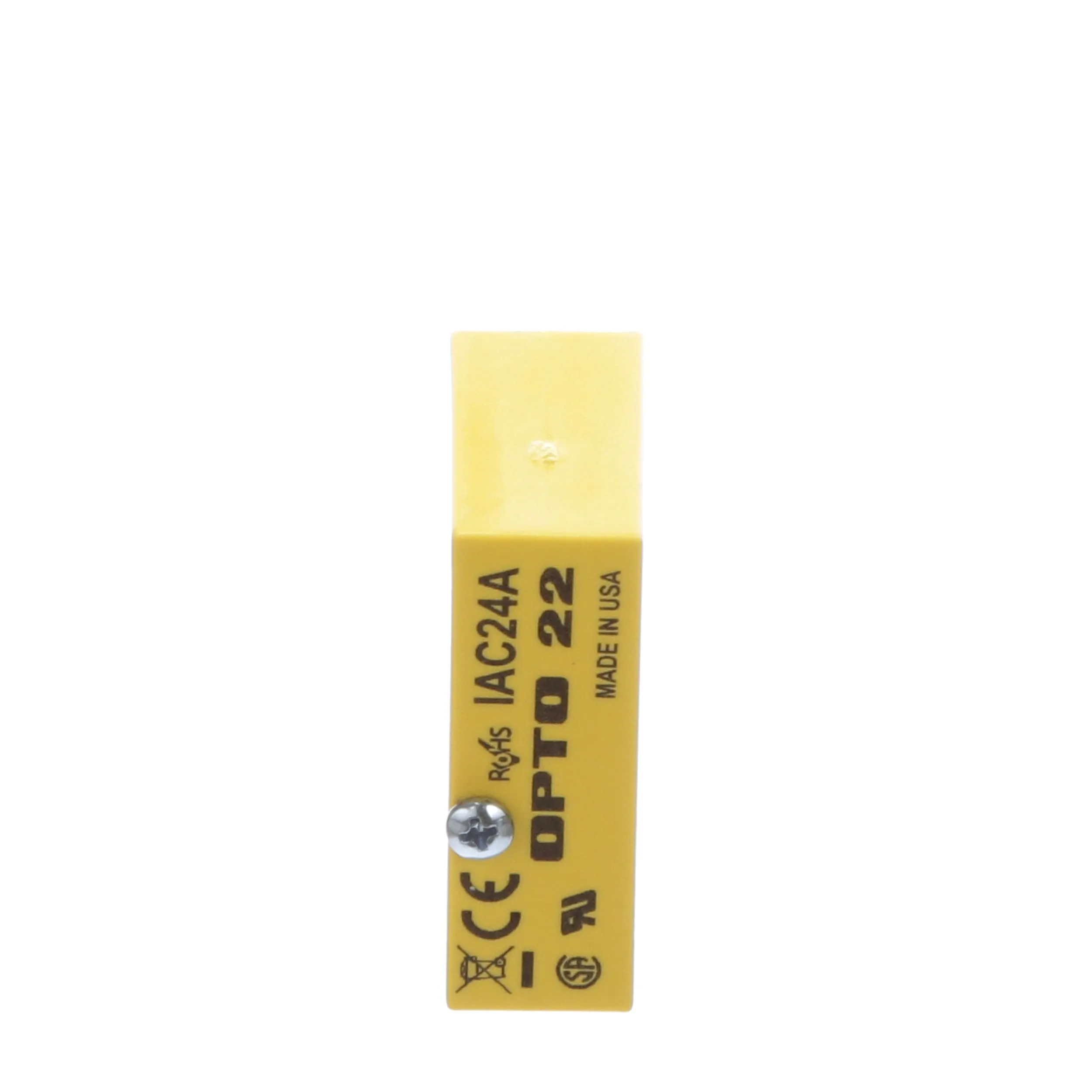

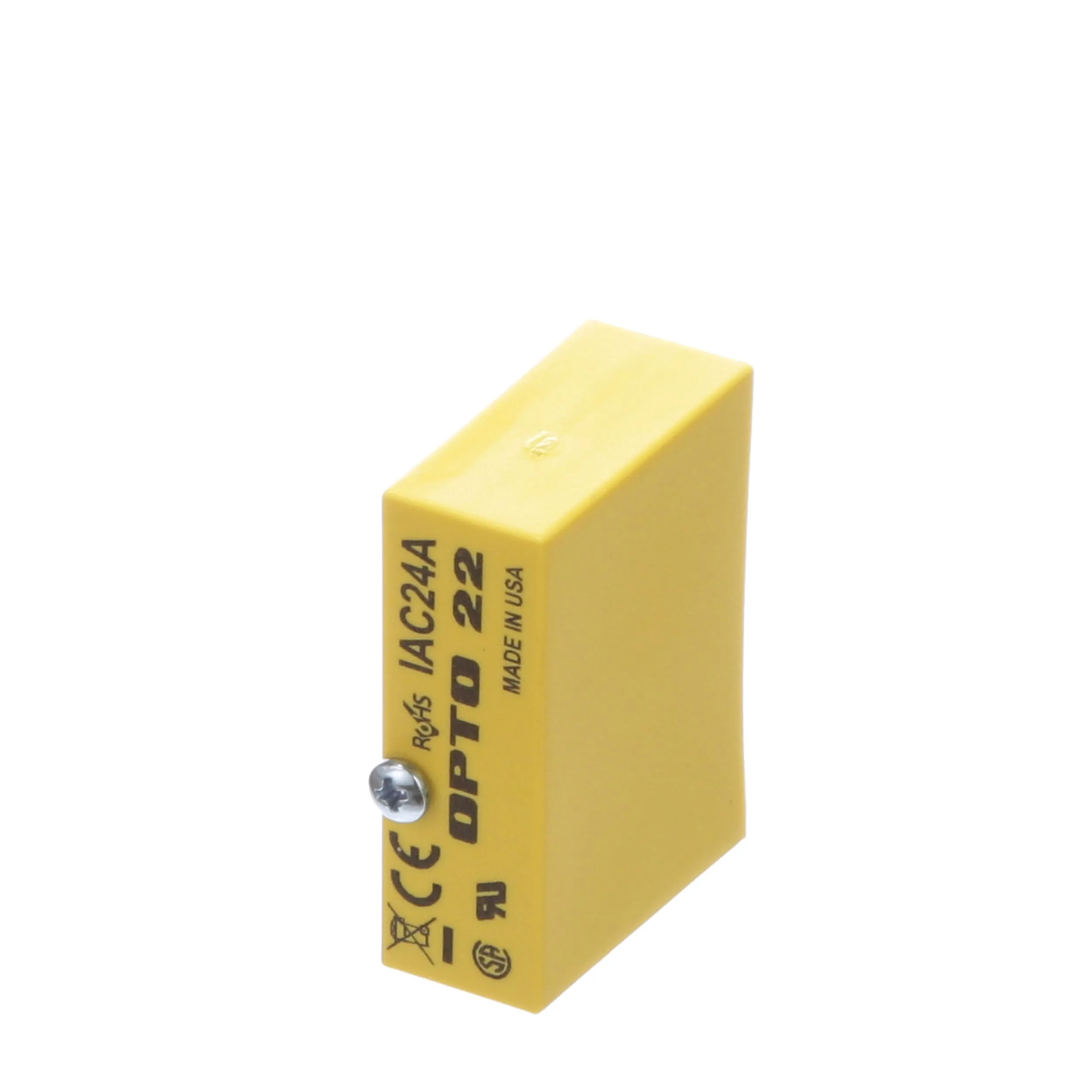

Standard I/O Module, AC Input, 20 ms Turn-On Time
AC input modules are used for sensing On/Off alternating current (AC) voltage levels. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free "clean" switching.
