| Product Attribute | Attribute Value |
|---|---|
| Application | Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring |
| Connection to Host | Backplane |
| Contact Form | Reed |
| Depth | 0.157" (4mm) |
| Dimensions | 48.8 x 12.2 x 41.1 mm |
| For Use With | SNAP PAC System |
| Input Current | 14 mA |
| Isolation Voltage | 1500 VDC |
| Length | 1.921" (48.8mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -30 °C |
| Module Type | DC Output |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 1 |
| Number of I/O Ports | 1 |
| Operating Temperature | -30 to 70 °C |
| Output | 100 VDC |
| Output Type | Digital |
| Output, Range | 100 VDC |
| Primary Type | Data Acquisition |

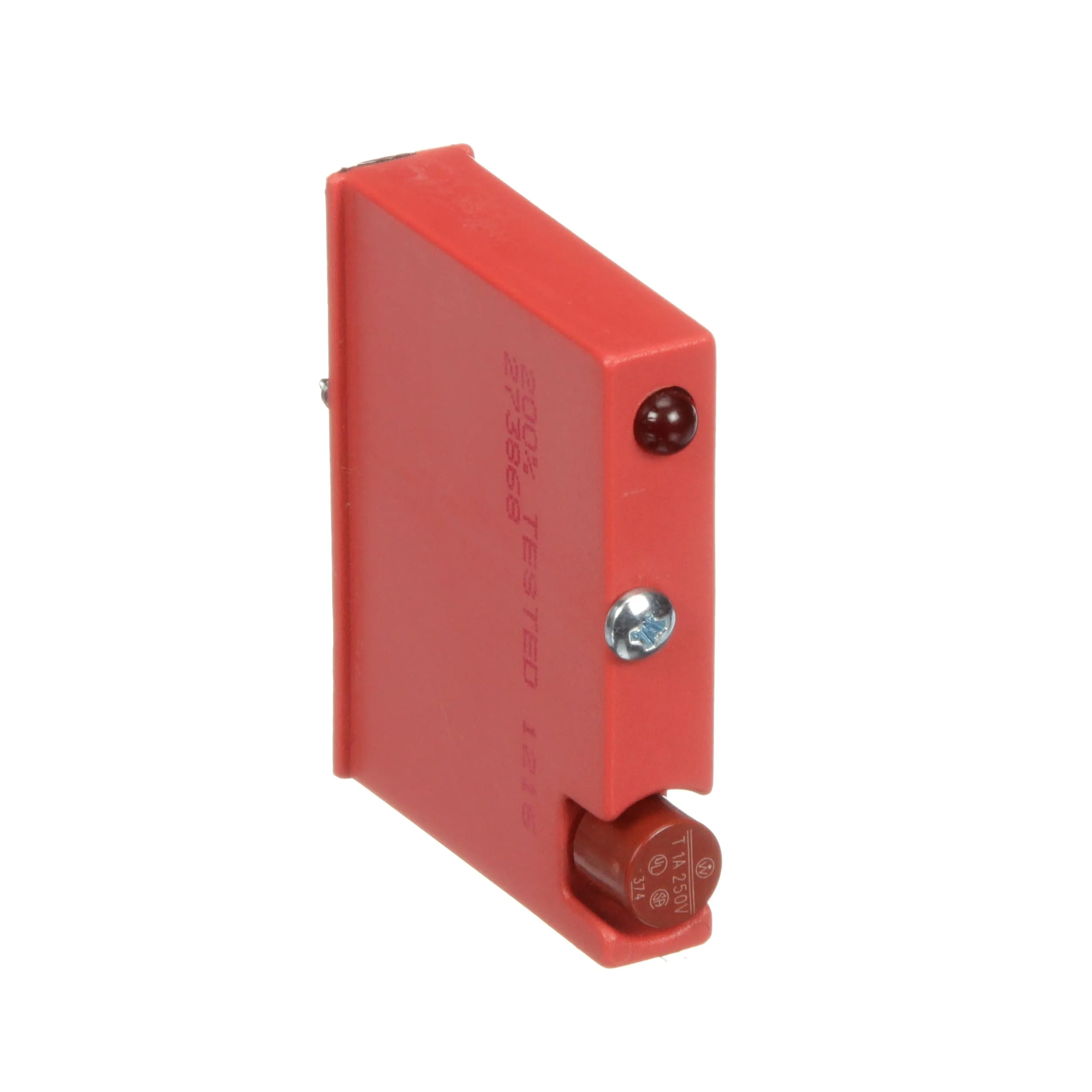

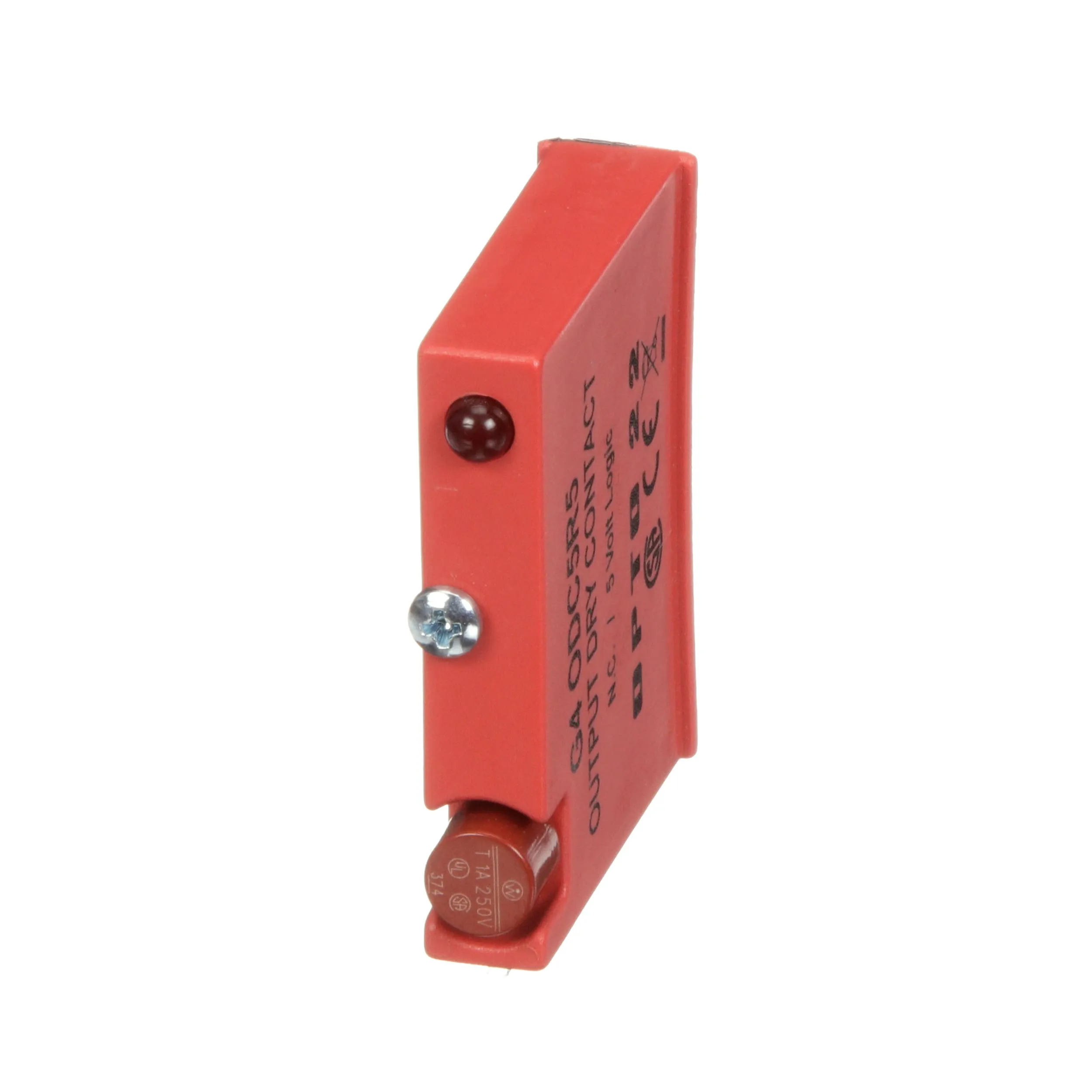

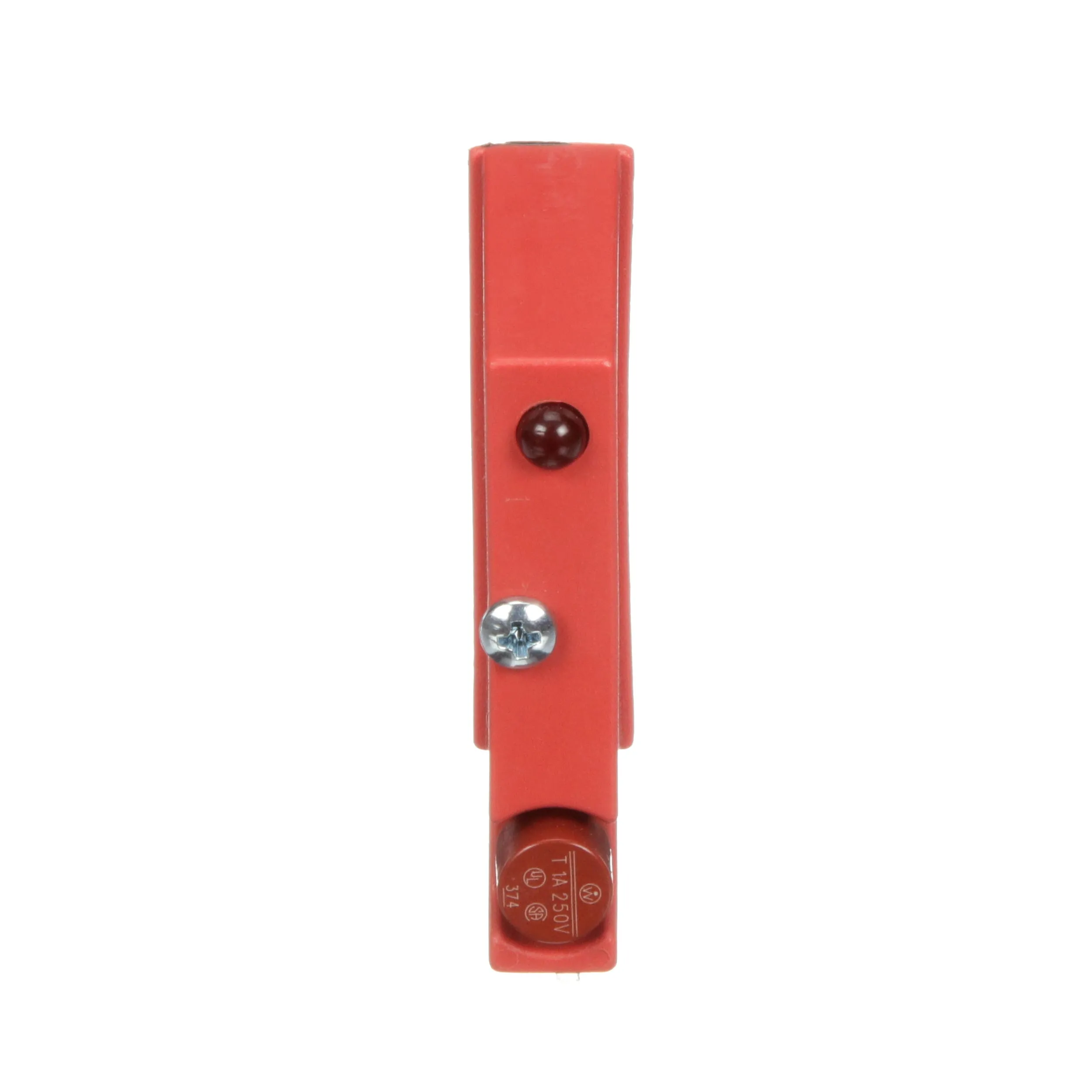

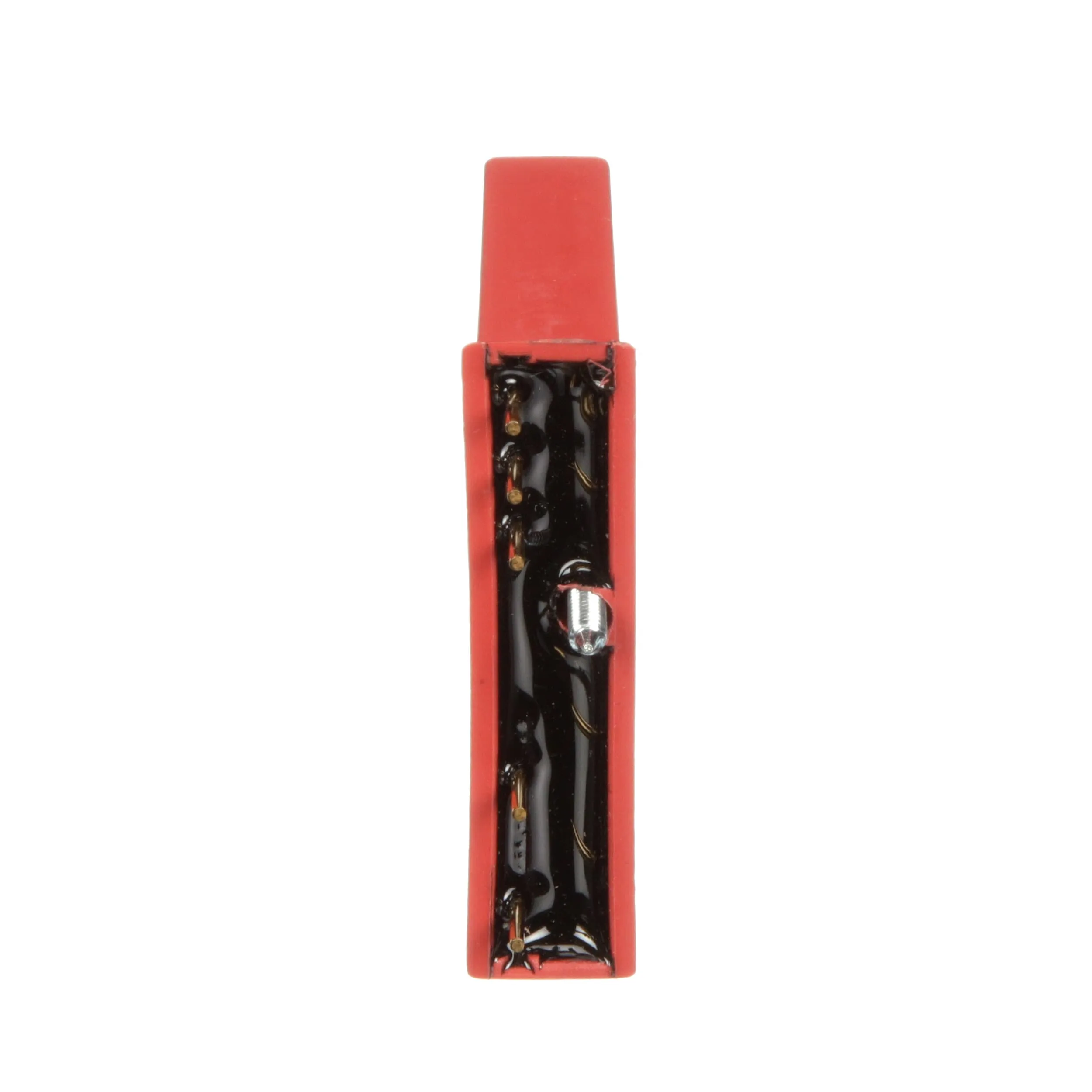

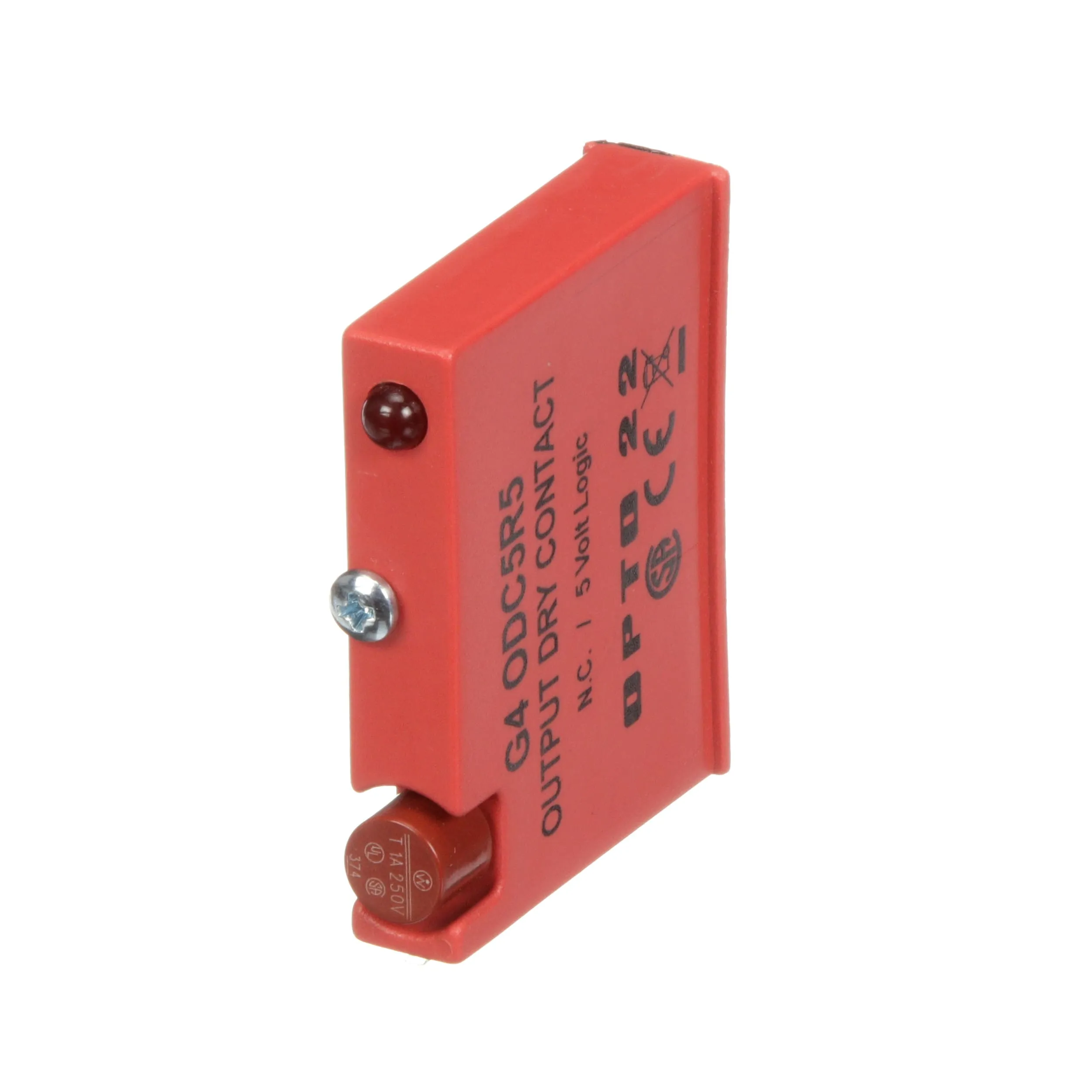

| Product Header | G4 Digital Dry Contact Output Module |
| Resistance, Input | 200 Milliohms (Contact) |
| Series | |
| Special Features | Mechanical Life of 5 Million Cycles |
| Standards | CE Approved |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | -30 to 70 °C |
| Time, Turn-Off | 500 μS |
| Time, Turn-On | 500 μs |
| Type | Output |
| Voltage, Operating | 0 to 100 VDC, 0 to 130 VAC (Line) |
| Width | 0.48" (12.2mm) |
Overview
Opto 22 G4 I/O includes both digital and analog modules. Each G4 module offers compact single-channel packaging. Each digital module includes an LED status indicator and also is available with manual switching capability for field wiring and control logic testing. Digital modules support 5-, 15- or 24-volt logic. G4 digital output modules feature a top-mounted replaceable fuse. G4 analog modules are factory-calibrated, offer 12-bit resolution and require a single 24-volt power supply.
All current loop modules include an isolated loop power supply for added flexibility and reduced instrumentation costs. Input types include voltage, current, thermocouple, RTD, ICTD, frequency and velocity. Outputs include voltage, current and time-proportional output. Factory Mutual (FM) approved versions of many G4 I/O modules are available.
