The 100 Series Ride-on Mowers combine strength and reliability with yard-friendly simplicity, comfort and control. With a choice of models and a wide range of features and options to choose from, the 100 Series has something for everyone. These robust ride-on mowers are engineered for years of trouble-free service and combine superb cut quality with outstanding ease of use.

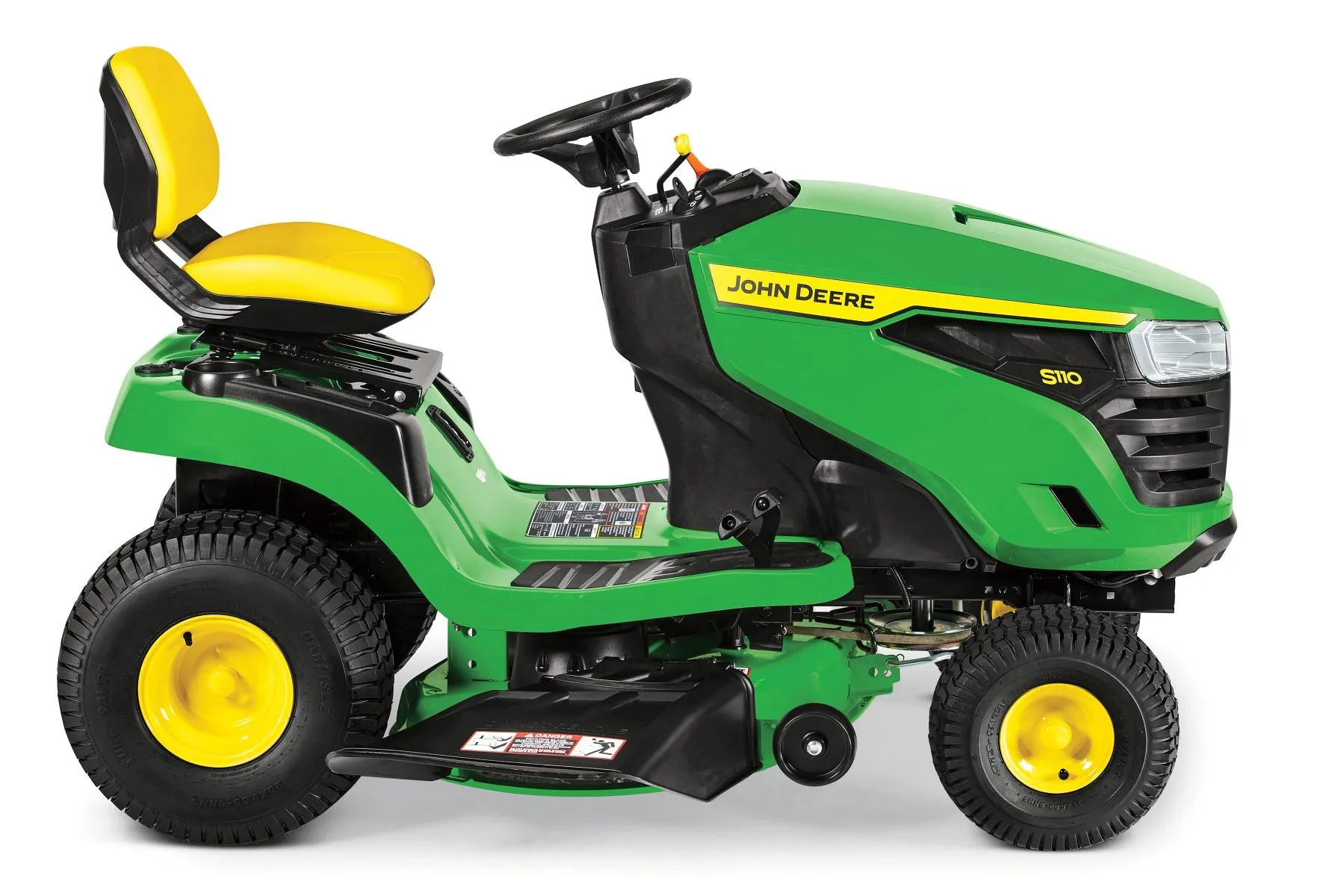

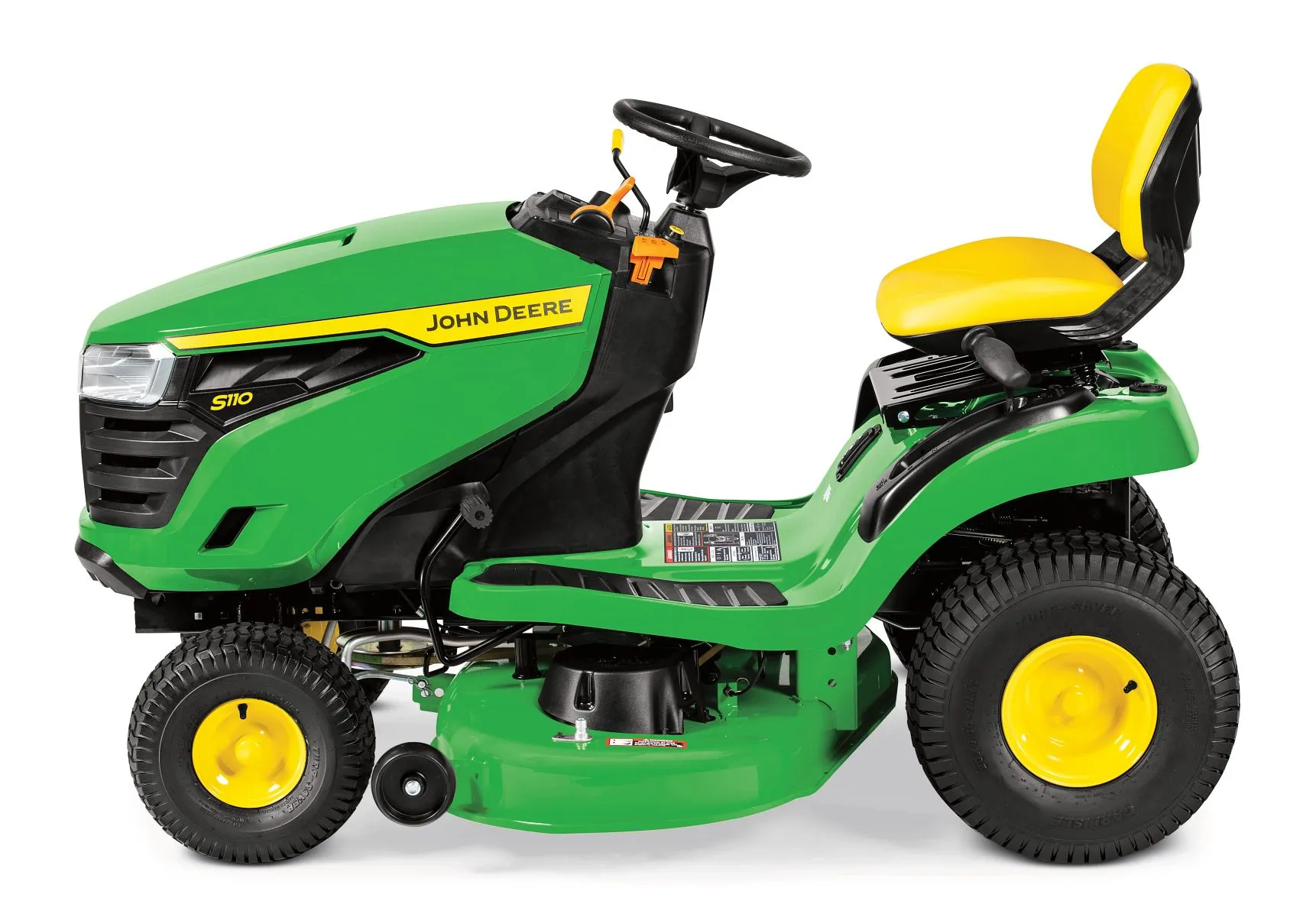

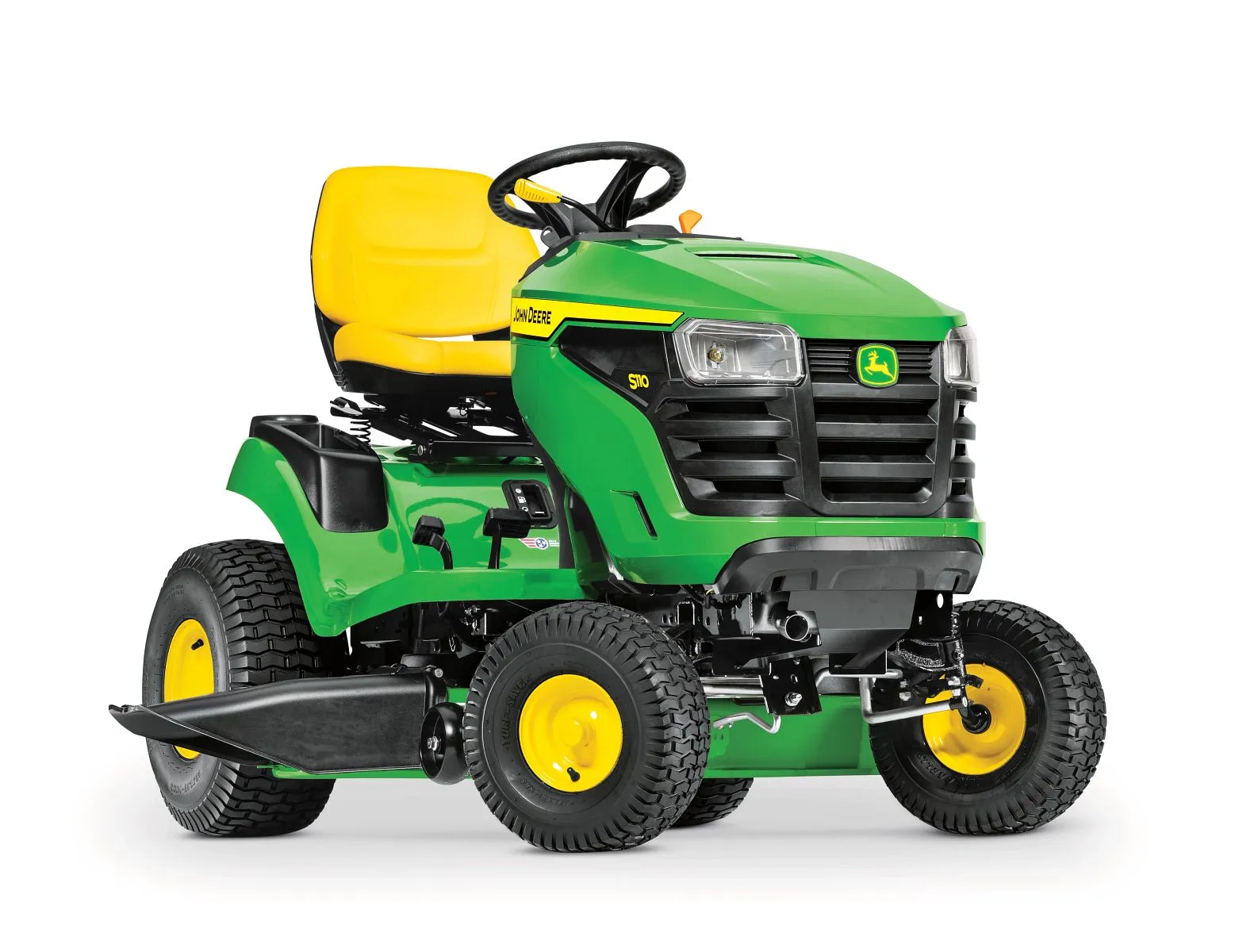

The John Deere S110 ride-on mower is the middle tier 42-inch deck model of the 100 Series line up. The ride is comfortable. S110 features a hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls and 15-in open back seat. The 42-inch Edge™ Cutting System is time-tested and proven to offer superior cut quality and can be easily equipped to bag or mulch. And the John Deere Branded single cylinder engine is 19 HP - plenty of power for up to one acre.

Powerful engine features full-pressure lubrication for long life

• A 14.2-kW (19-hp) single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging.
• Electronic ignition for fast starts
• Overhead valves for excellent power and fuel economy
• Anti-vibration system
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes

Frame made of full-length welded steel for reliability

• The solid one-piece frame is constructed of 12-gauge, 2.66-mm (0.105-in.) steel.
• Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
• One-piece, steel fender deck is bolted to the frame.
• Cast-iron front axle will not bend
• The front bumper is included on the S130 and S140. It is available as an optional attachment for the S100, S110, and S120.
• The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Hydrostatic transmission gives an infinite choice of ground speeds

• A Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel.
• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.
• Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
• Tuff Torq TLT200 – S100, S110, S120, S130 and S140

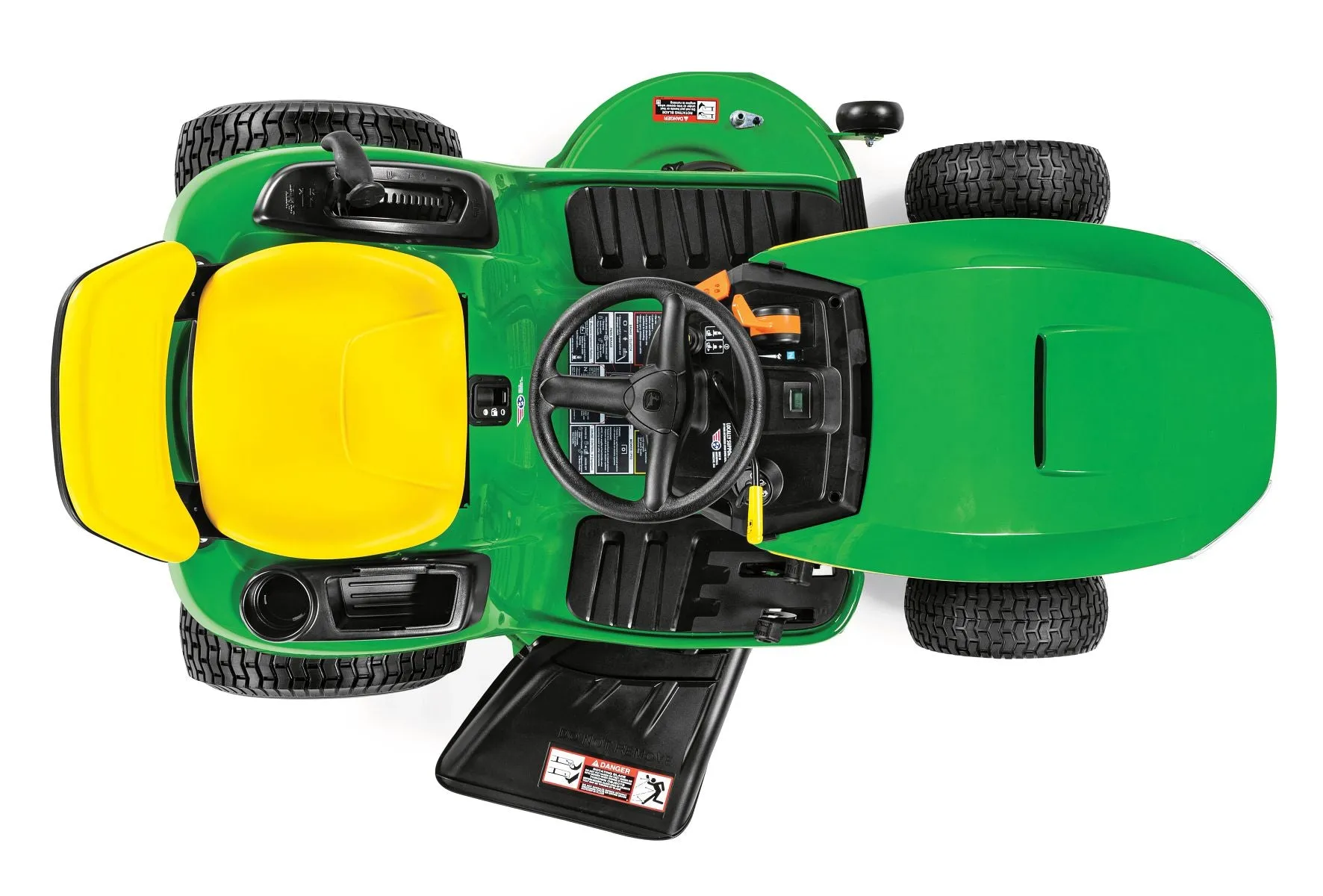

Operator station designed for comfortable operation

• The operator station is designed for operator comfort and easy operation:
• Controls are positioned where they are easy to reach and use to control the tractor.
• The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
• The seat is positioned to provide the most comfortable operator position.
• Controls are easy to see and use.
• Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort.

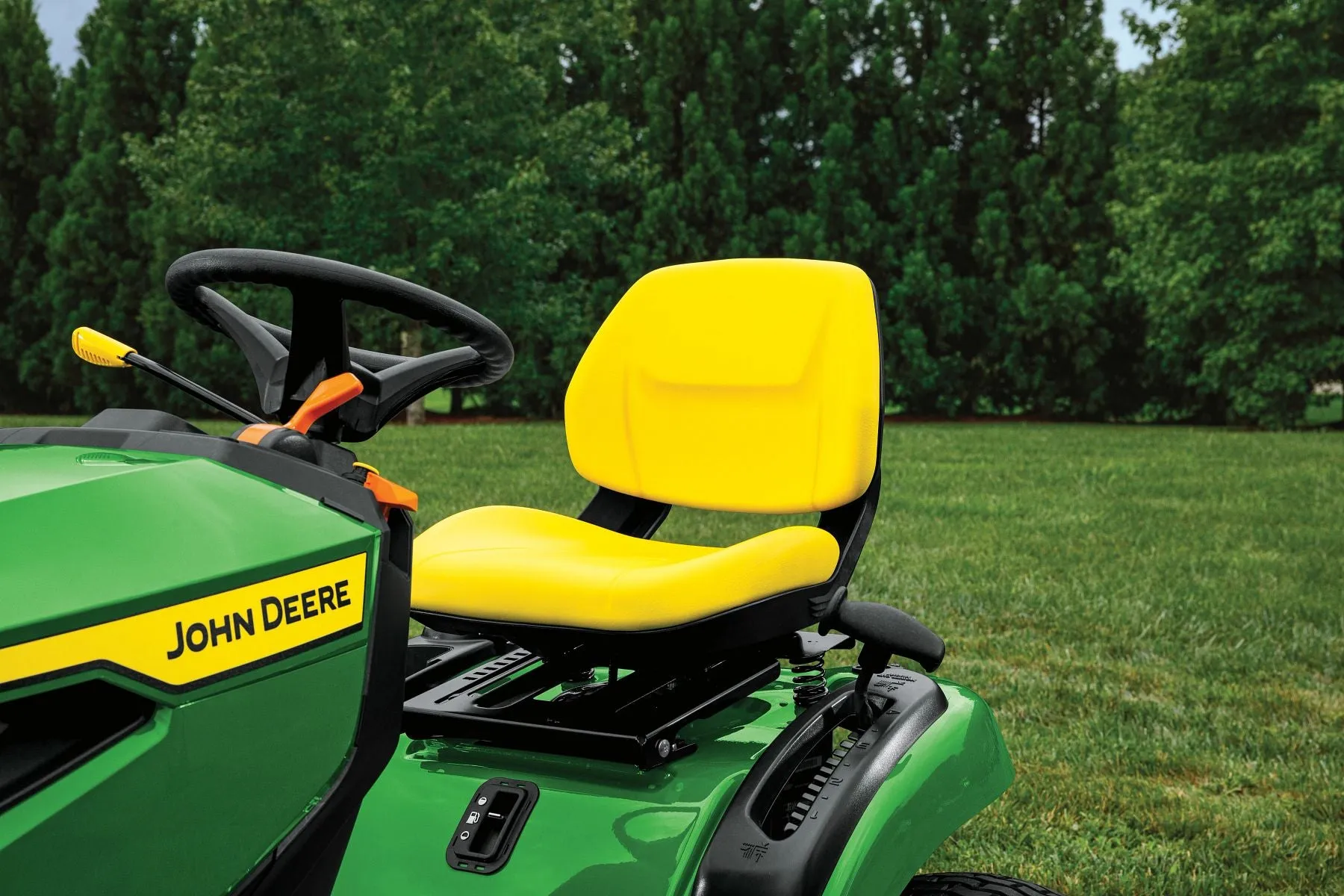

• Operator comfort is enhanced with a 38-cm (15-in.) high-back, two-piece seat with an open back.

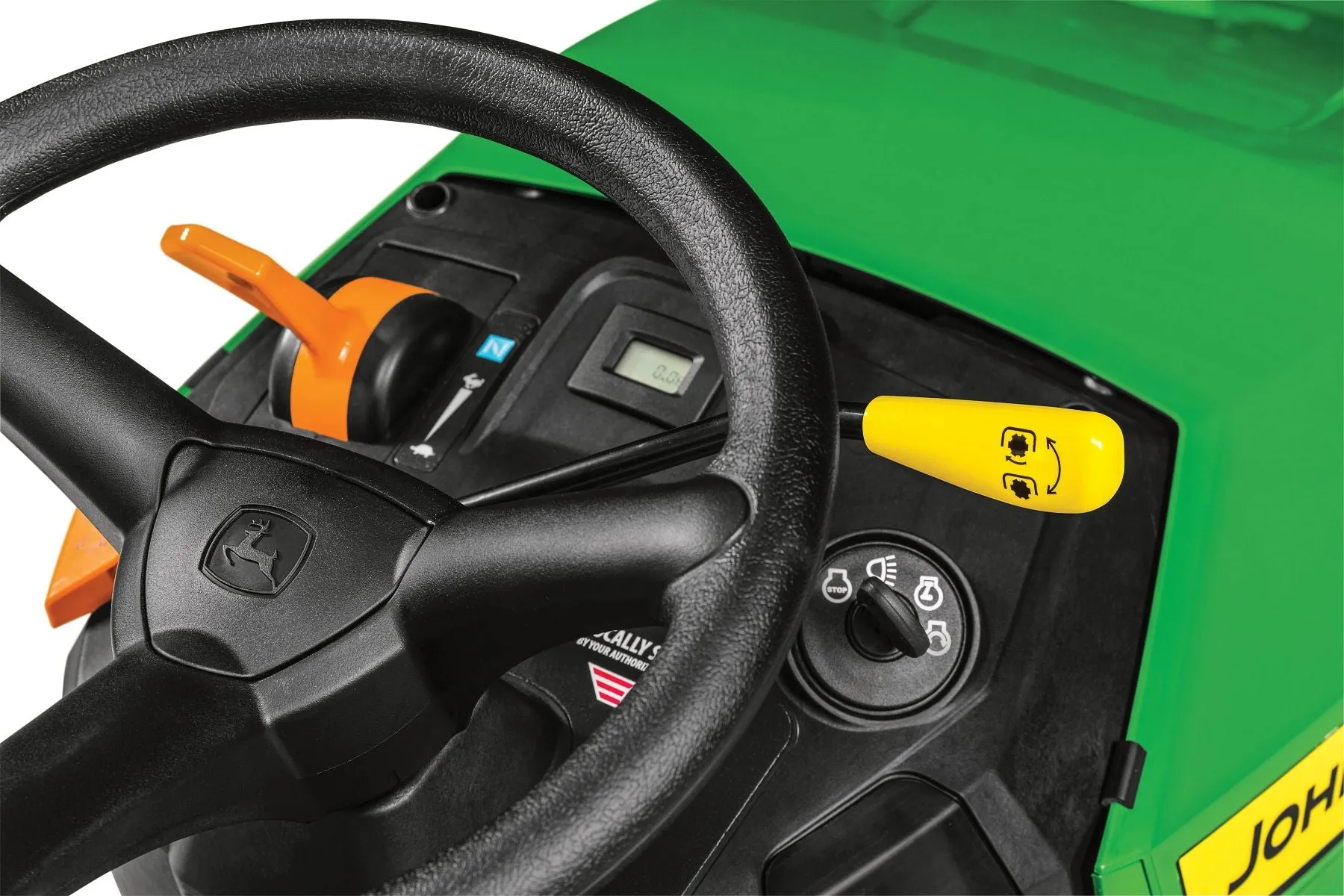

Instruments and controls are easy to find and convenient to use

• The contoured dash has clean, attractive styling. Side-by-side foot pedals control the speed and direction of travel:
• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

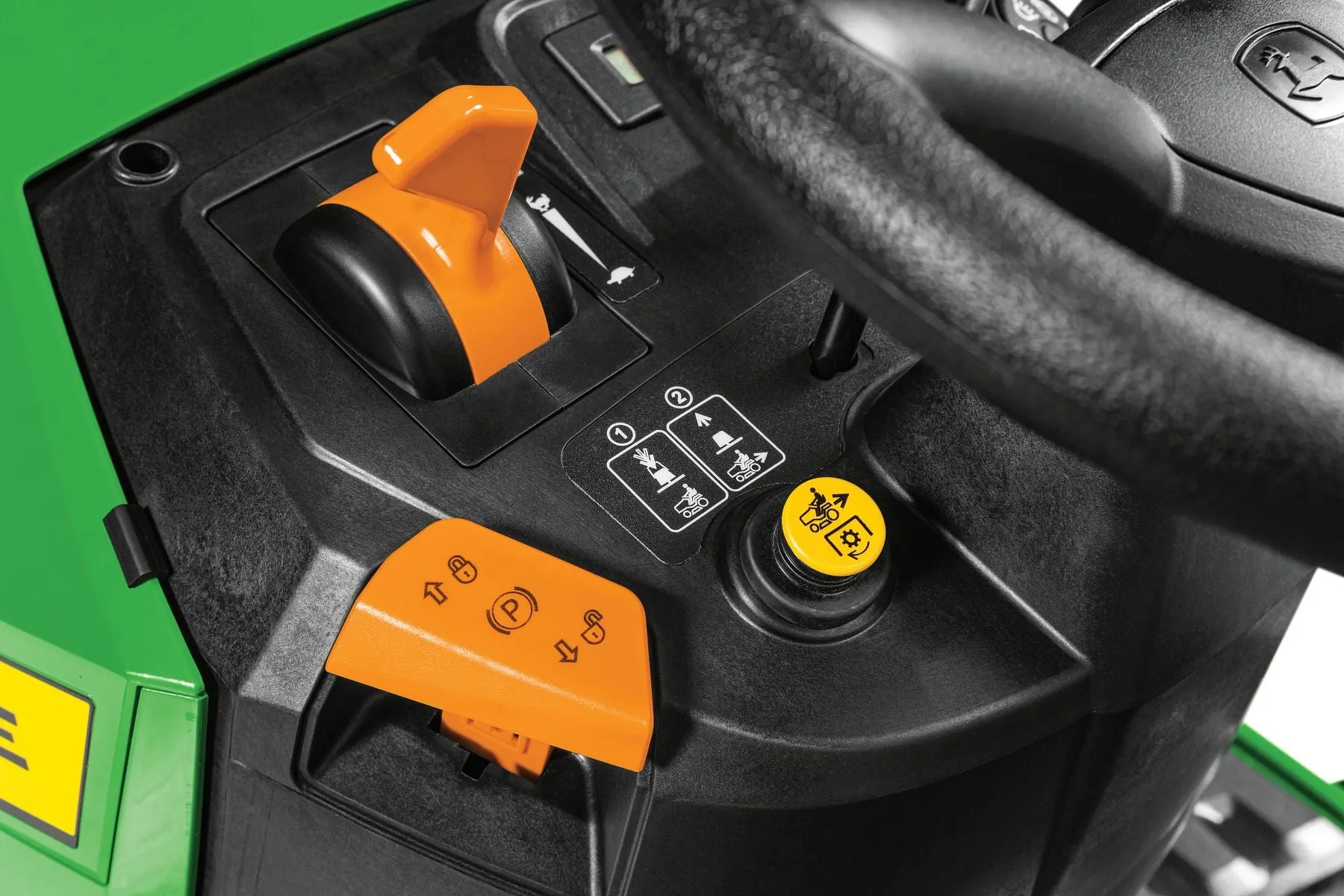

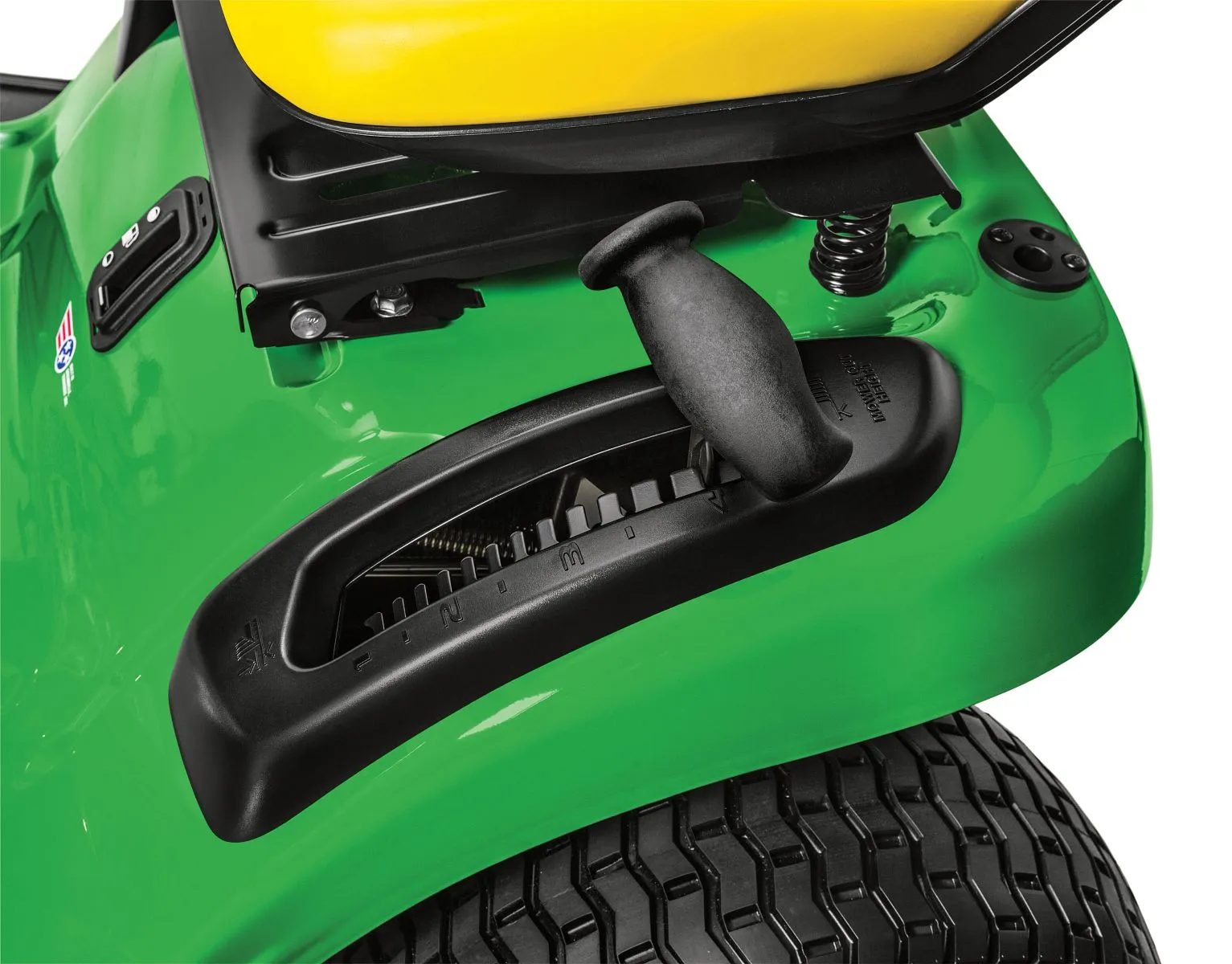

• A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
• Increments of 0.64 cm (1/4 in.) allow fine-tuning the cut height.
• Cut height is adjustable from 2.5 to 10.2 cm (1 to 4 in.).
• The lift handle is shaped for easy use and is out of the way of entering or exiting operators.

Serviceability is convenient with an easy-open hood

• The one-piece hood opens easily to permit checking and servicing the engine:
• Important service points are located within easy reach.
• A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
• The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
• The seat tilts up and out of the way to make adding fuel easy.
• Hood will not rust or dent, and includes quality headlights.

The Edge™ cutting system gives superior performance

• The Edge cutting system has been trademarked to emphasise the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability.
• The 107-cm (42-in.) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:
• The 13-gauge, 2.3-mm (0.09-in.) steel deck provides years of dependable mowing.
• Included three-in-one blades work well for side-discharge, mulching, or bagging.
• A cut-and-throw, 229-L (6.5-bu) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.

Two-year or 120-hour bumper-to-bumper warranty is included

An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

Note: Photos are for illustrative purposes only, deck colours and other features may vary between green and yellow.
