Product Details
＋

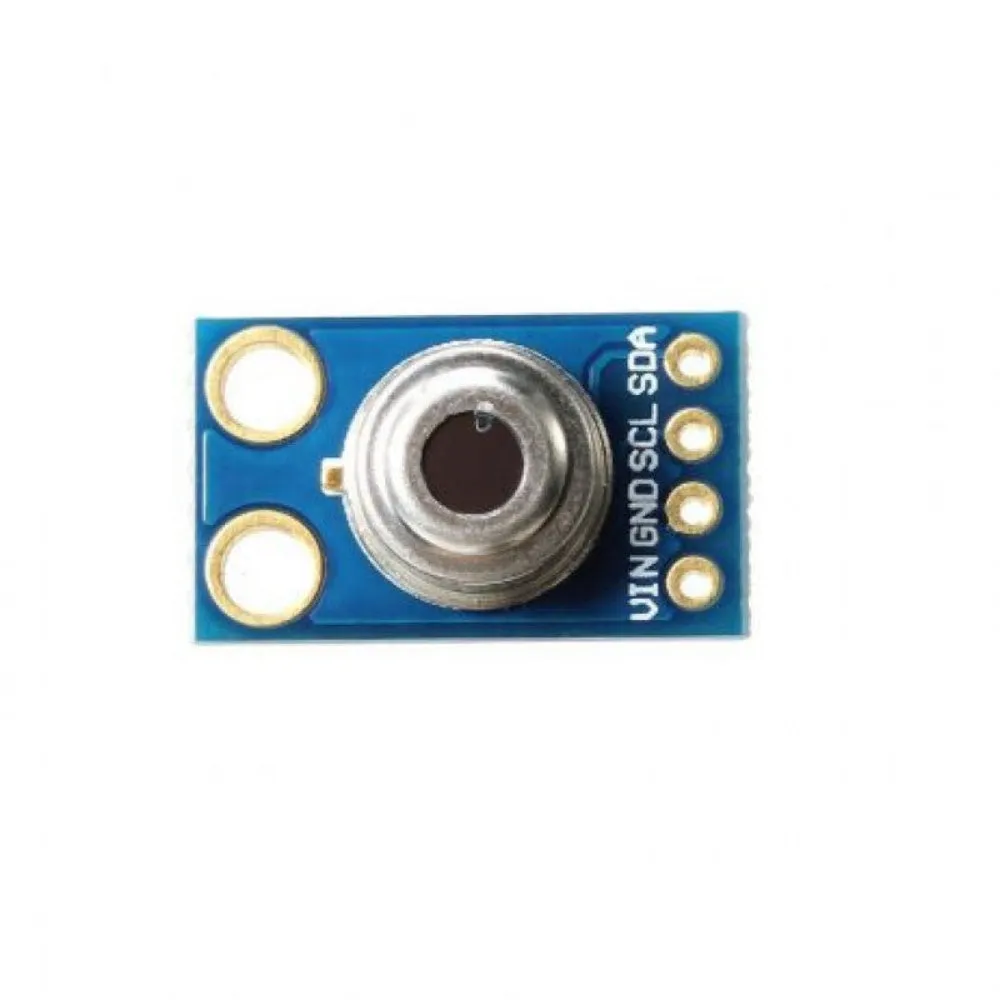

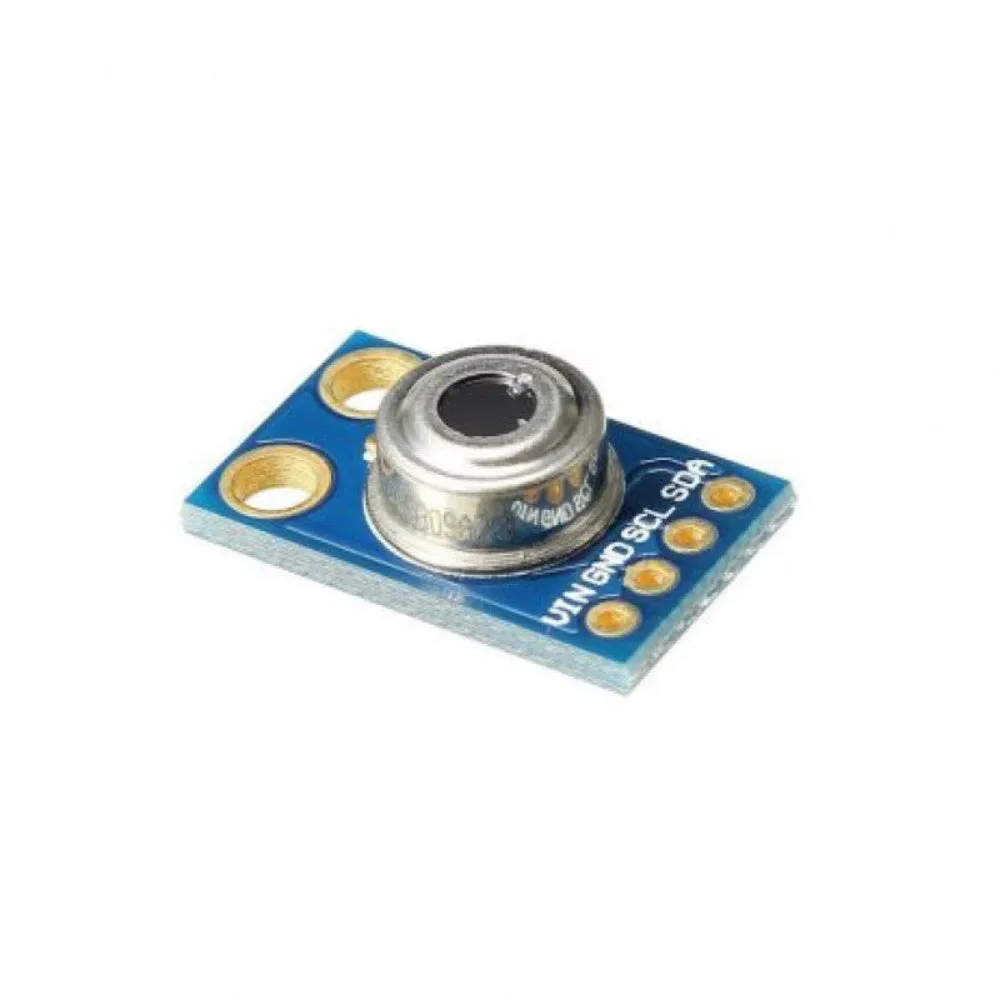

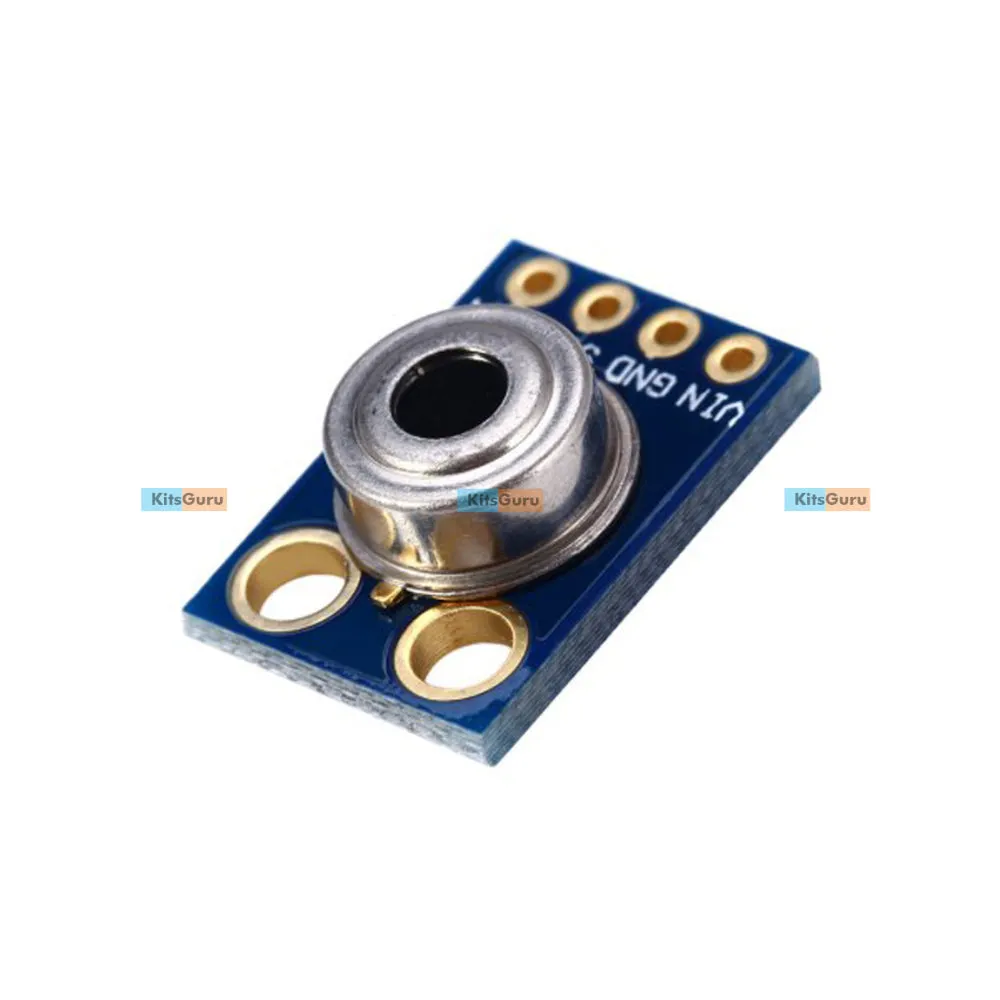

GY-906 MLX90614ESF DAA Non-Contact Human Body Infrared Temperature Measurement Range 2cm
If You are wandering to Build a Device That is used to measure the temperature of a hot object like machines, flames, hot irons, or device CPU. Then this MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module is Needed for You. you can buy this Sensor on KitsGuru.com at a reasonable priceThe MLX90614 ESF is an Infrared thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
The user can configure the digital output to be PWM. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C.
Technical Details
- Item Type: Sensor
- Model Type: Temperature Sensor
- Model No.: MLX90614
- Operating Voltage: 3V to 5V
- Operating Current: 2mA
- Communication Protocol: I2C
- Sensing Temperature: -40°C to 125°C, -70°C to 380°C
- PCB Dimensions: 17 x 11mm
- Weight: 1g
Features
- Works from 3.3V to 5V, with built-in power regulator IC
- Standard I2C interface with 2x pull-up resistors
- Measurement distance: 1 cm
- Small, low-cost, and easy to integrate
- Calibrated for -40°C to 125°C sensor, -70°C to 380°C object temperature
- Accuracy: 0.5°C (0.. 50°C), 0.1°C for medical range (available on request)
- Resolution: 0.01°C
- SMBus compatible for fast readings and sensor networks
- Customizable PWM output for continuous readings
- Adaptable for 8-16V applications
Applications :
- High precision non-contact temperature measurements
- Thermal comfort sensor for mobile air conditioning control
- Temperature sensing for HVAC systems
- Automotive blind angle detection
- Industrial temperature control for moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Healthcare and livestock monitoring
- Movement detection
- Multiple zone temperature control (up to 127 sensors)
- Thermal relay/alert
- Body temperature measurement
Integration with Arduino
Sample Code
Physical Attributes
- Length × Width × Height(mm) : 17 × 11 × 7
- Weight (gm) : 1
Package Includes
- 1 x GY-906 MLX90614ESF DAA Non-Contact Human Body Infrared Temperature Measurement Range 2cm
