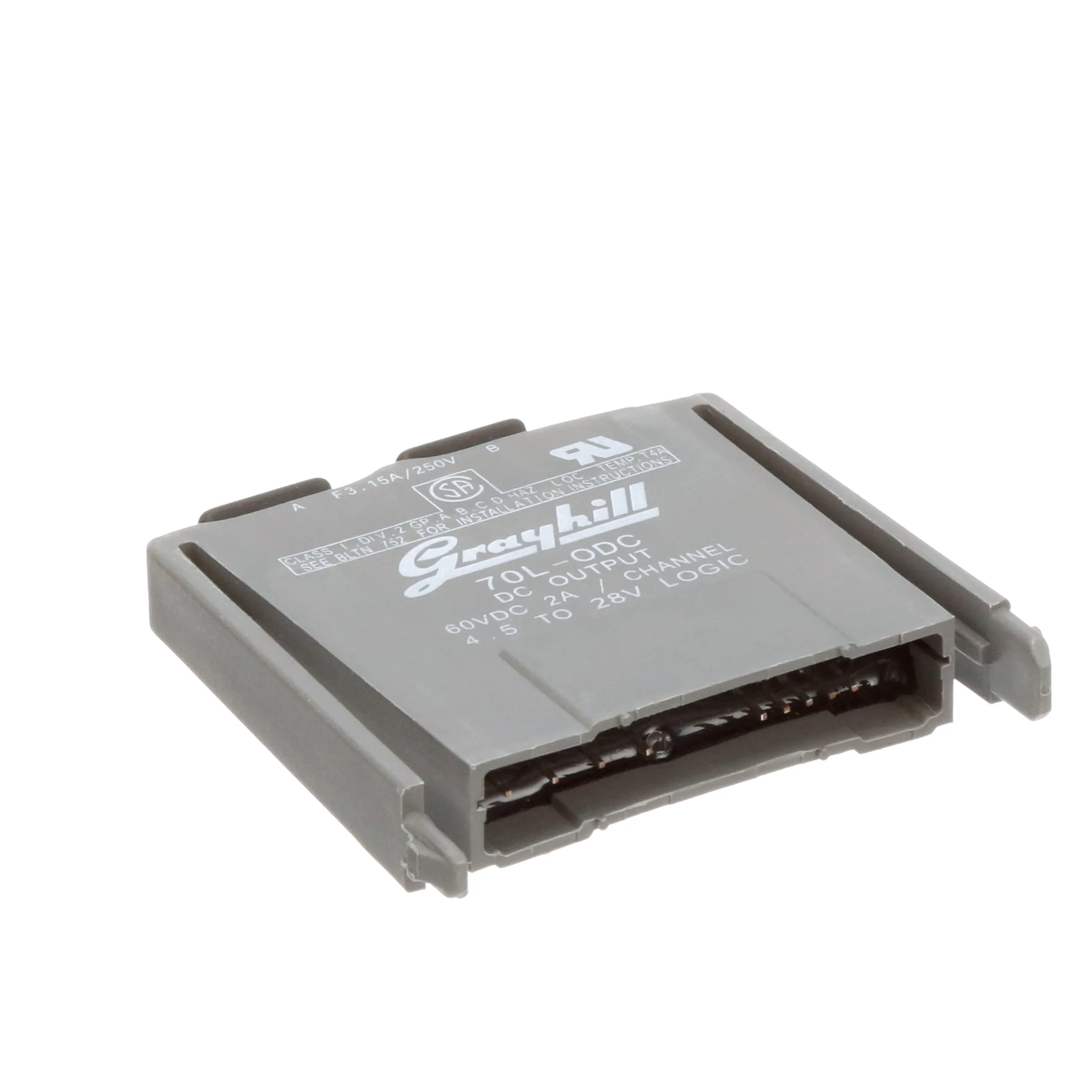

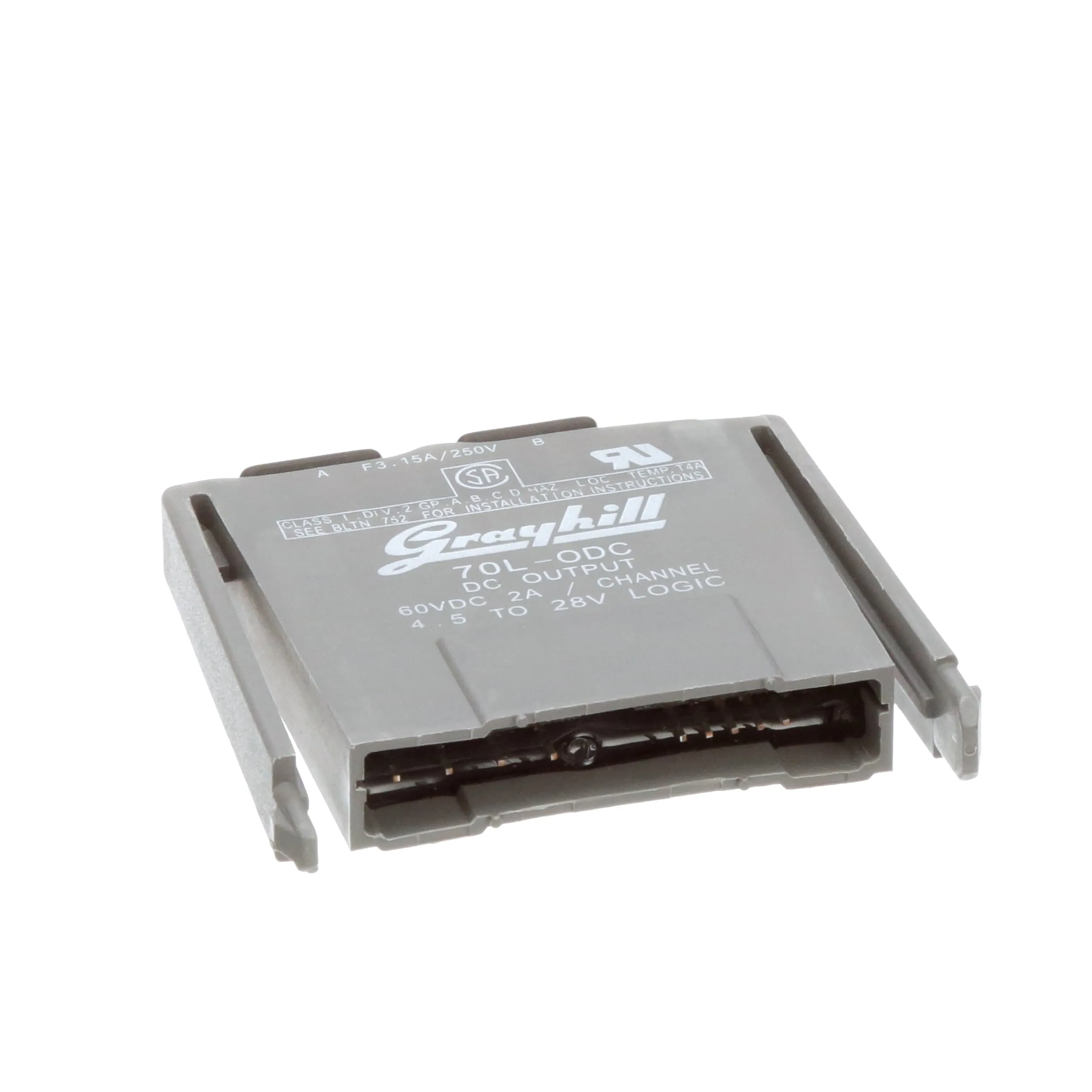

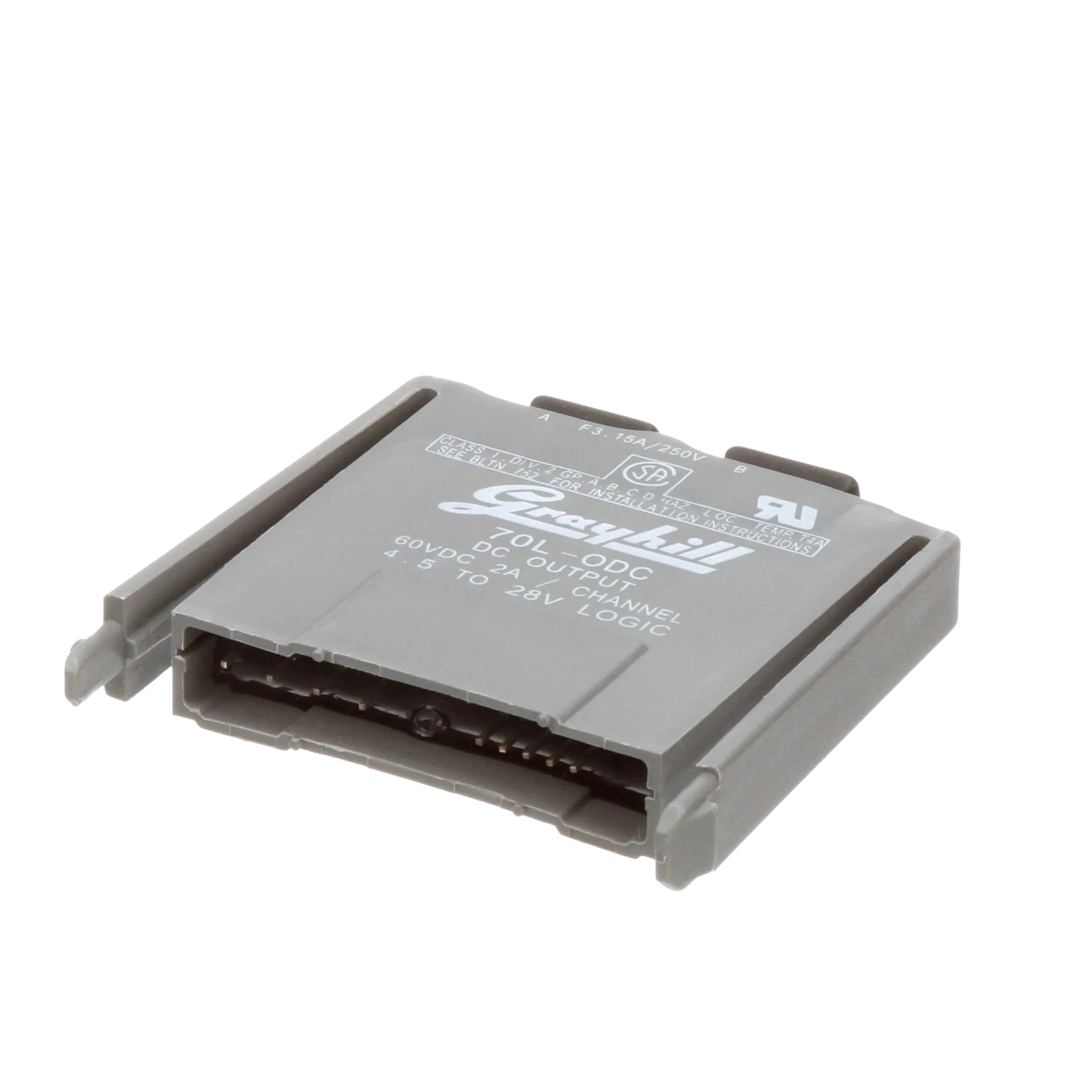

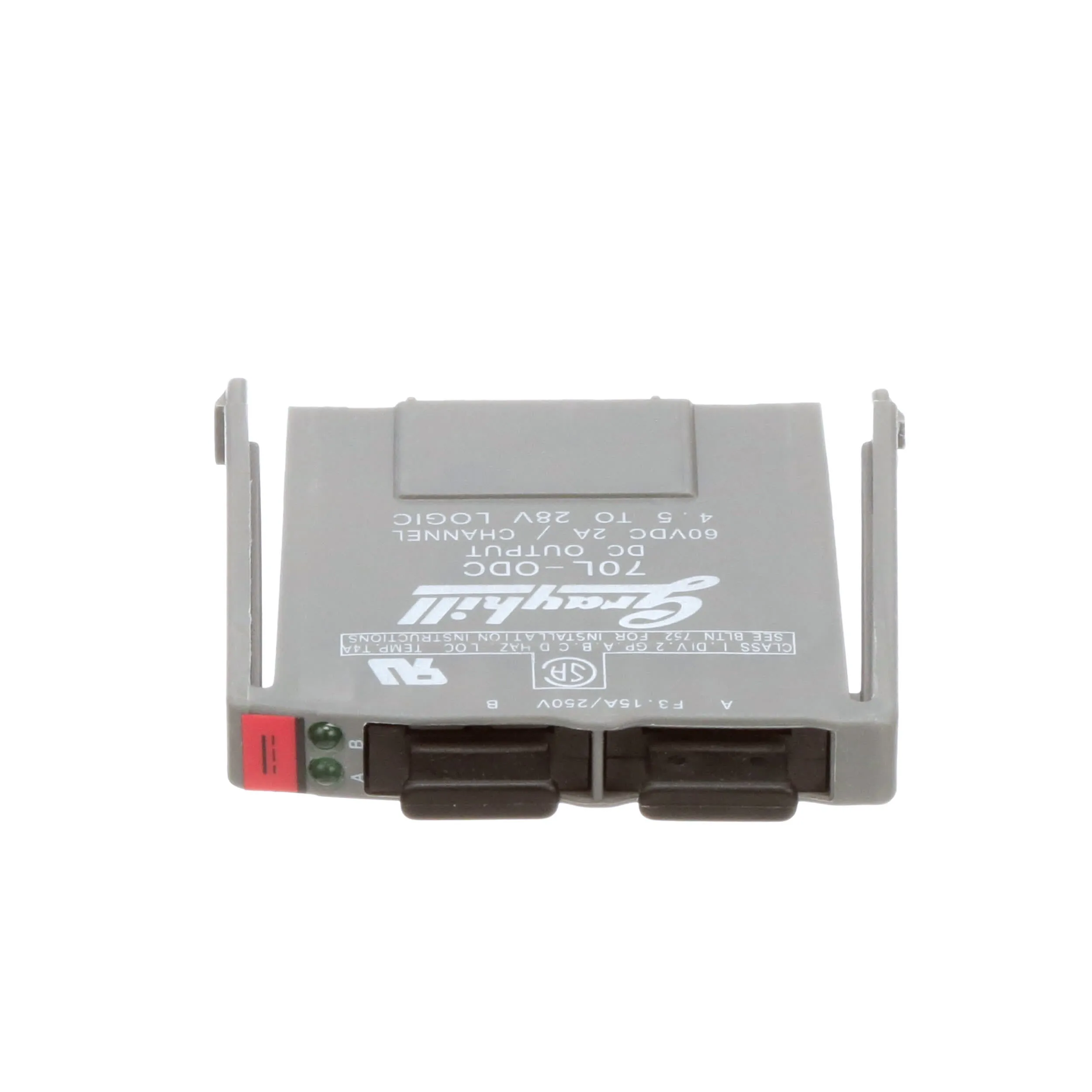

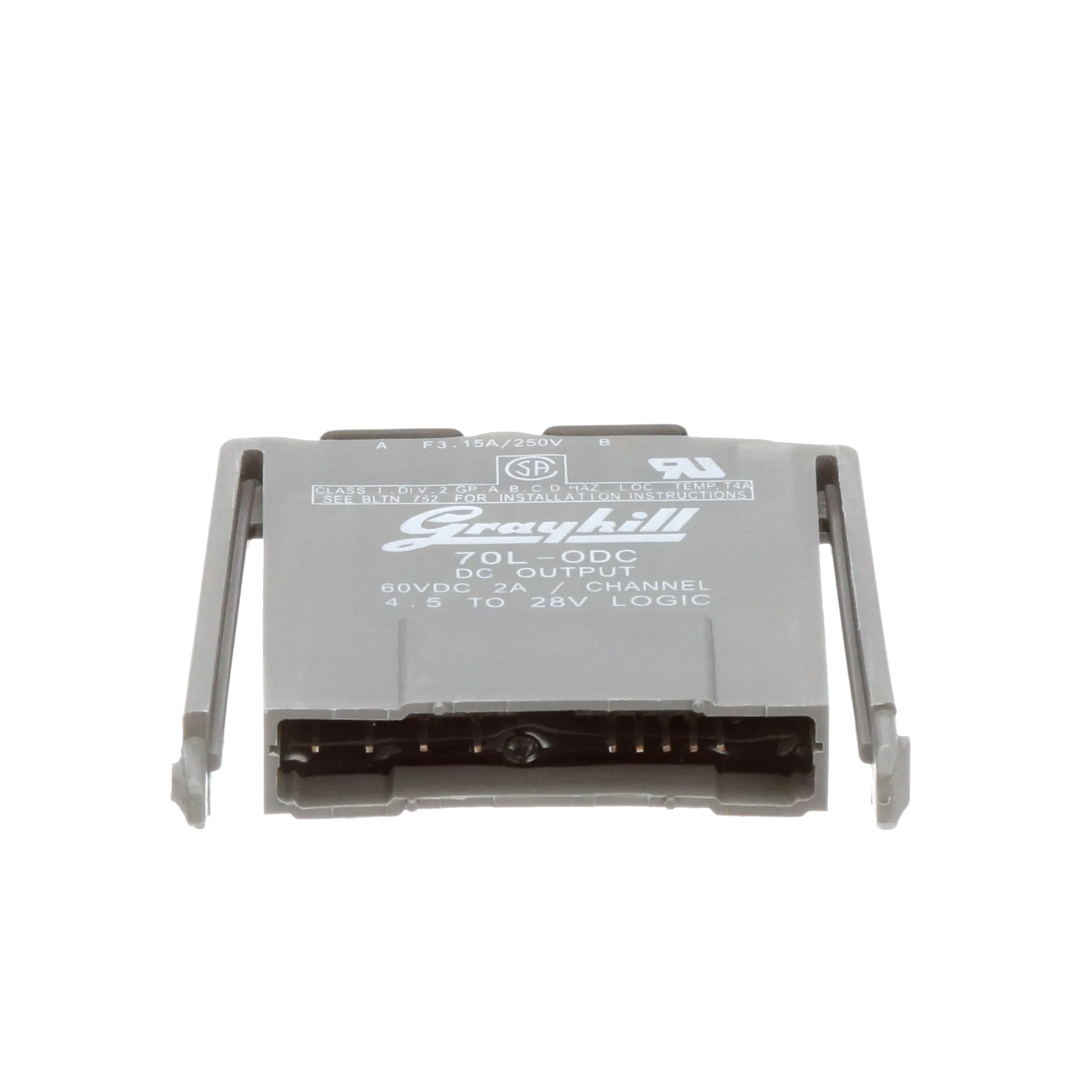

| Product Attribute | Attribute Value |
|---|---|
| Application | Control Systems ; Data Acquisition ; Monitoring |
| Clamping Voltage | 80 VDC |
| Color | Gray |
| Connection to Host | Board Mount |
| Contact Form | SPST-Normally Open |
| Current, Leakage | 1.5 mA |
| For Use With | Industrial Control & Data Acquisition Products |
| Input Current | 7 mA |
| Isolation Voltage | 4000 VAC |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Module Type | DC Output |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 2 |
| Number of I/O Ports | 2 |
| Operating Temperature | -40 to 100 °C |
| Output | 3 to 60 VDC |
| Output Type | Digital |
| Output, Range | 3 to 60 VDC |
| Power Dissipation | 1 WA (Typ.) |
| Primary Type | Control |
| Product Header | DC Output Module |
| Resistance, Input | 2.15 Kiloohms |
| Series | |
| Special Features | Built-In Status LED ; Normally Open ; Optical Isolation ; SPST ; Transient Protection |
| Standards | UL, CSA, CE, TUV Certified |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | -40 to 85 °C |
| Time, Turn-Off | 50 μS |
| Time, Turn-On | 20 μs |
| Type | Output |
| Voltage, Operating | 60 VDC (Max.) |
Overview
OpenLine® analog modules communicate serially with the controller. Each module has a separate transmit and receive line that operates at 115,200 baud with no parity bits, 8 data bits and 1 stop bit (115.2k, N, 8, 1). The command structure and responses for all modules are detailed in Bulletin No. 743. Each module has a microcontroller and non-volatile serial EEPROM memory. The calibration data is stored within the EEPROM, and may be changed using the appropriate commands and the 70L-PROG field calibration unit. The software provided with the calibration unit communicates with the modules through the serial port of a PC. Calibration equipment is not provided.
Digital Output Modules. AC output modules have zero voltage turn-on of the load to greatly reduce generated EMI and RFI. They are highly immune to electrical transients, and have built-in RC snubber networks for increased capability with inductive loads. DC output modules can operate DC loads over a wide voltage range and have built-in voltage spike protection.
Digital Input Modules. The output of these modules is a logic level signal which corresponds to the status of the device being monitored. A high level output signal indicates the load is off (the switch is open). A low level output signal indicates the load is on (the switch is closed). Input modules are designed to give fast, clean switching by providing filtering and hysteresis.
