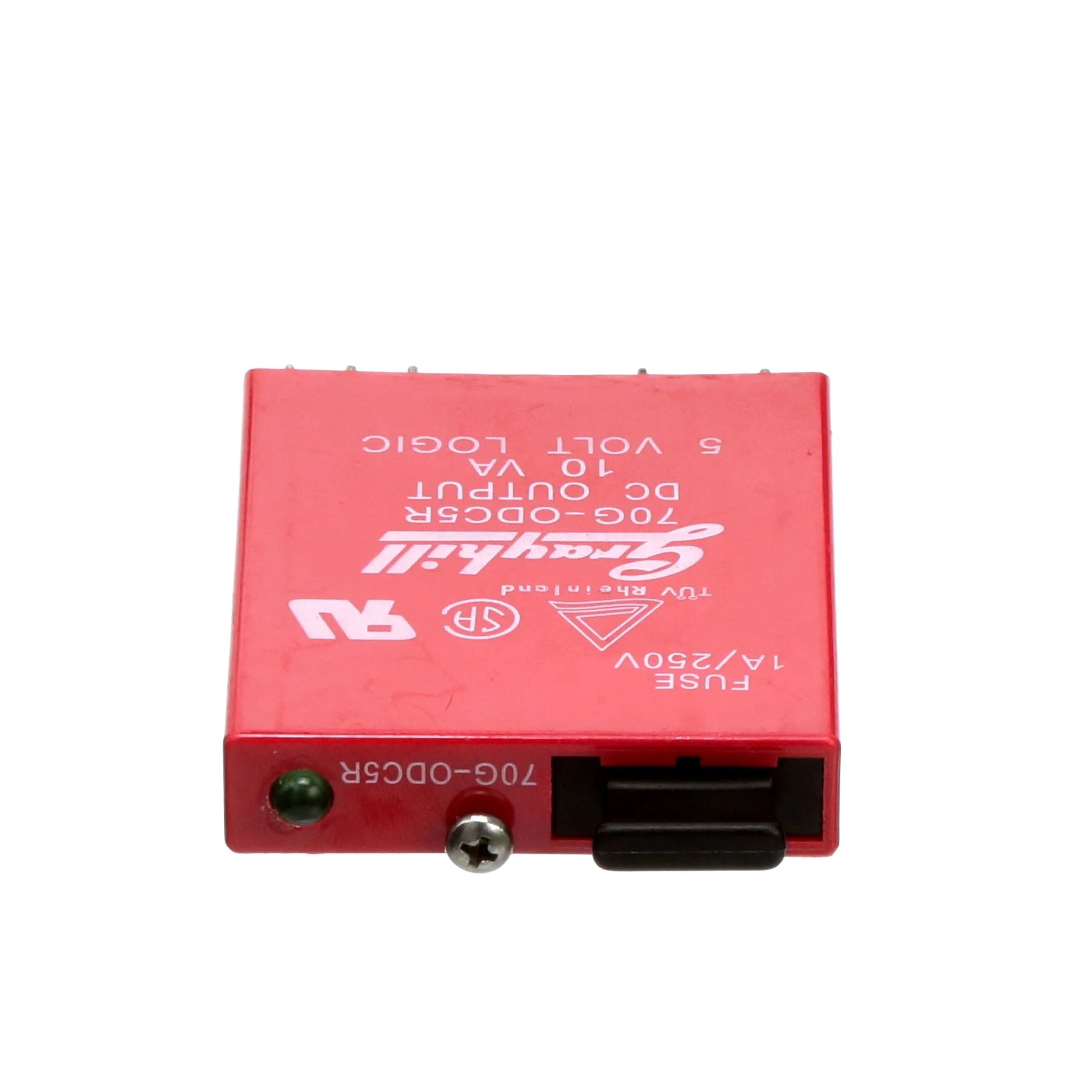

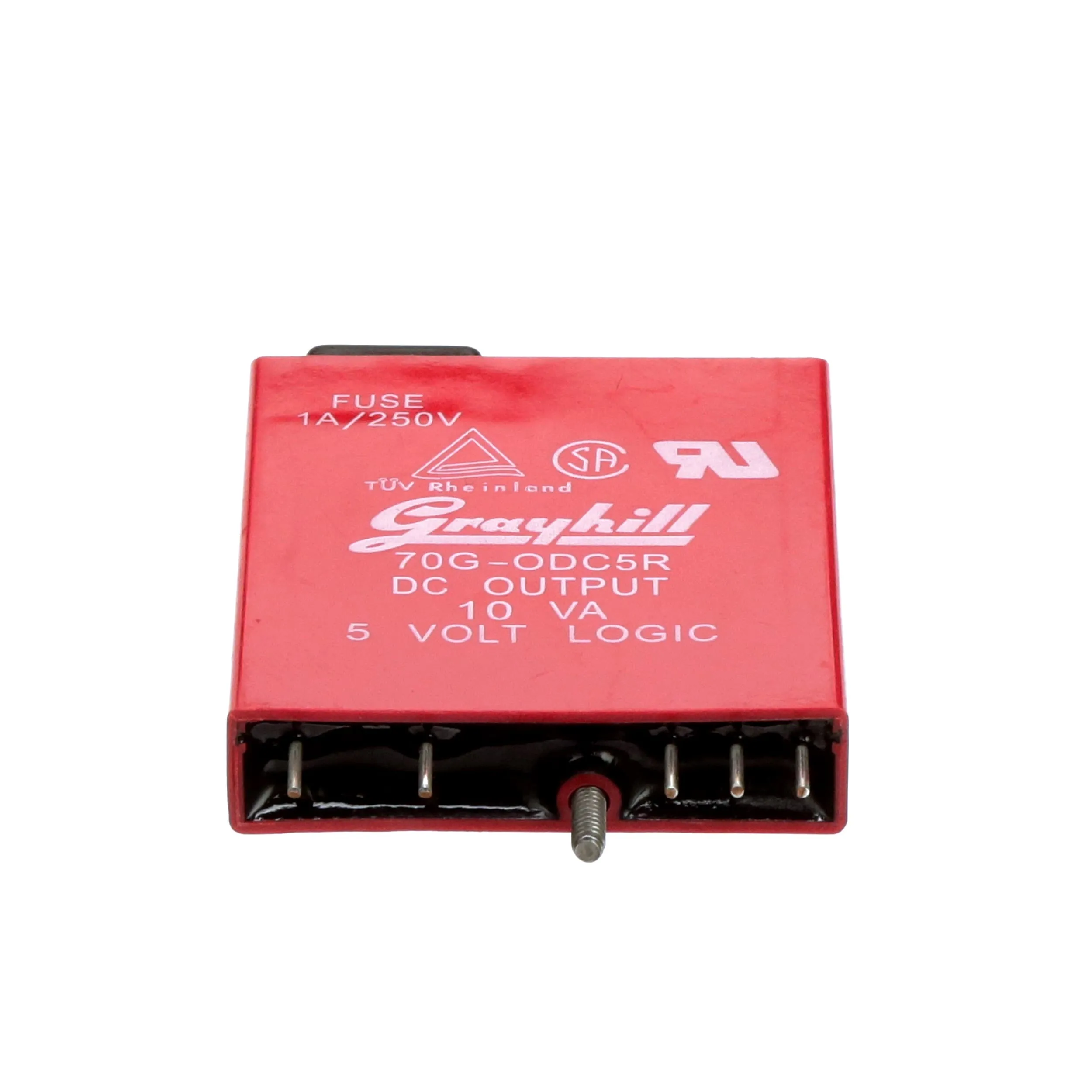

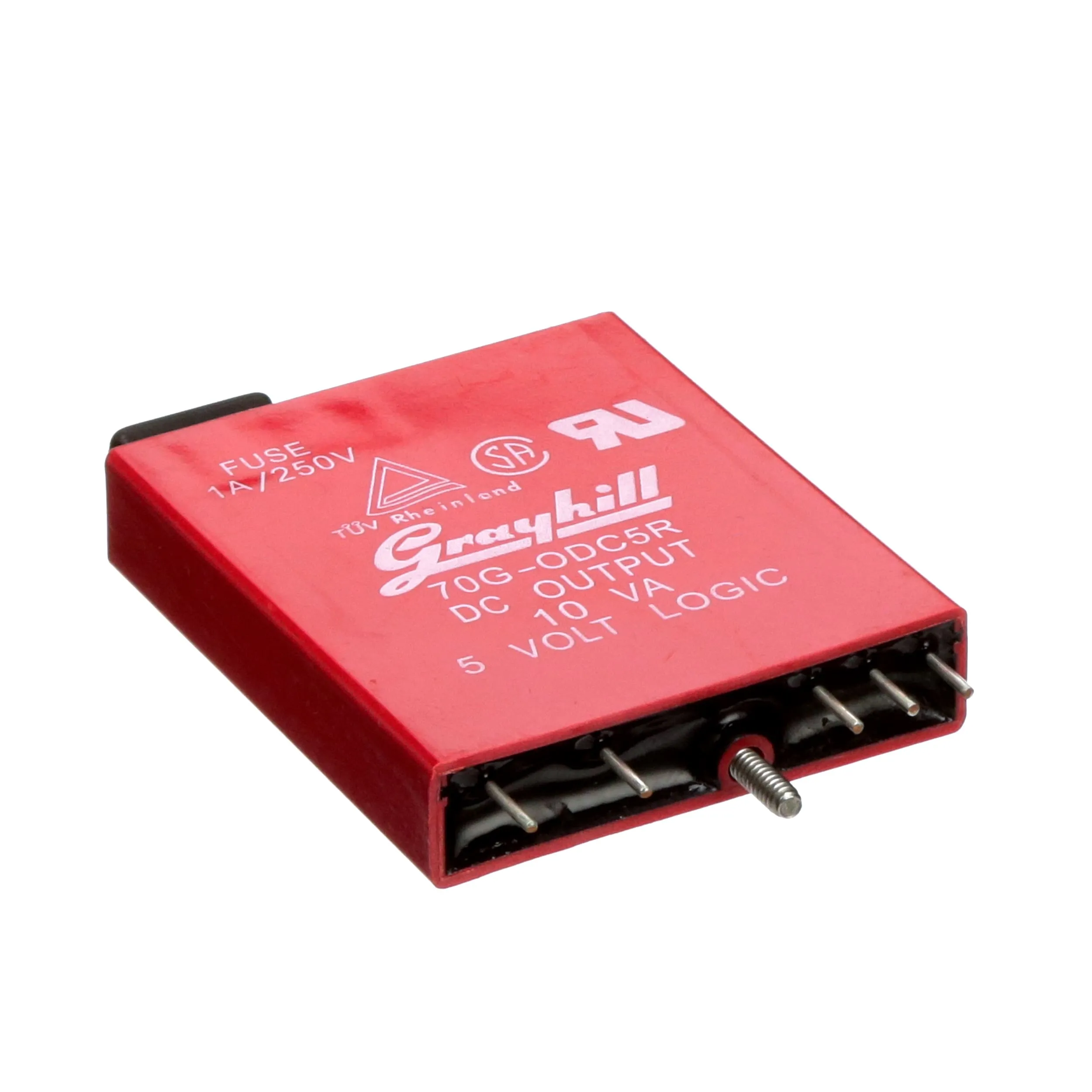

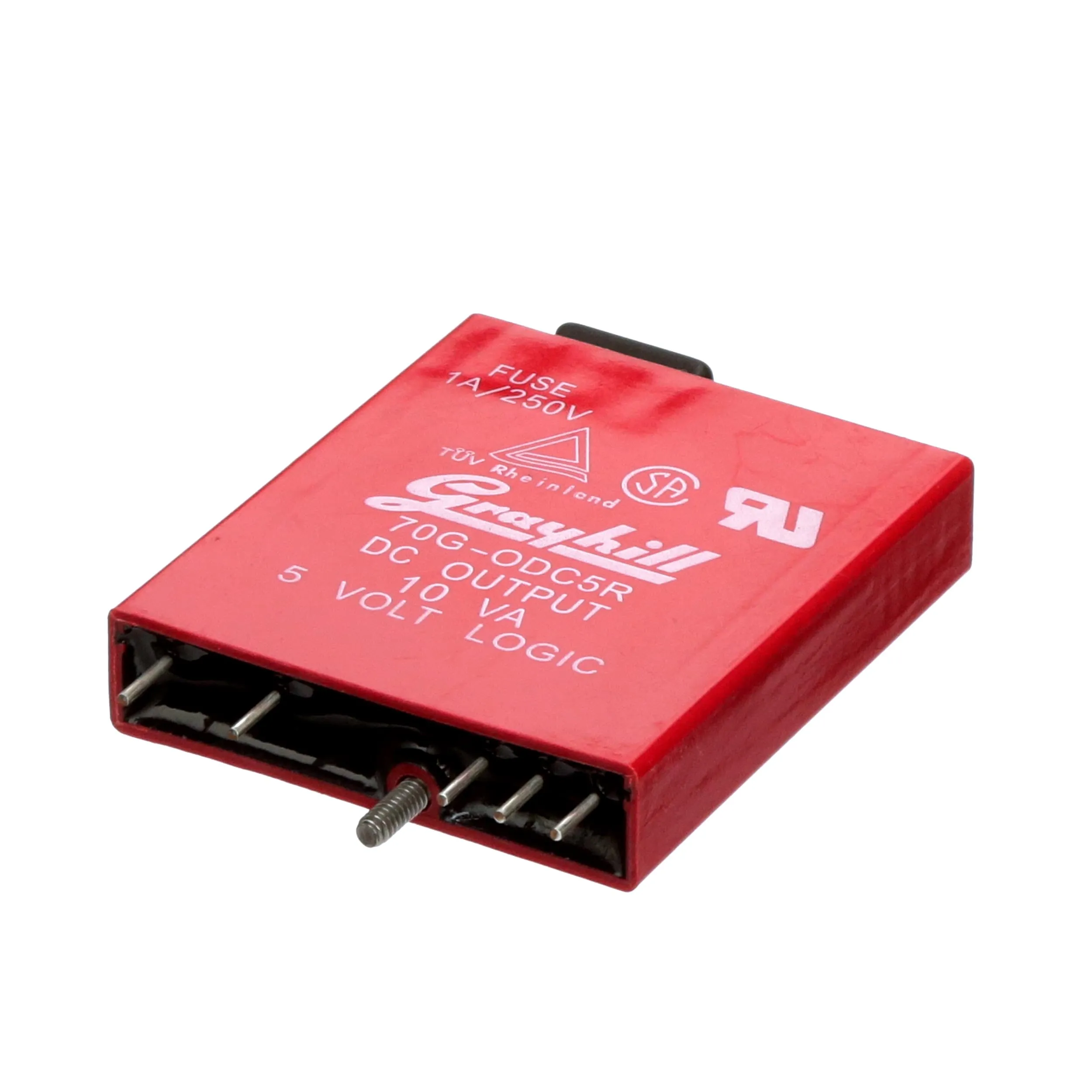

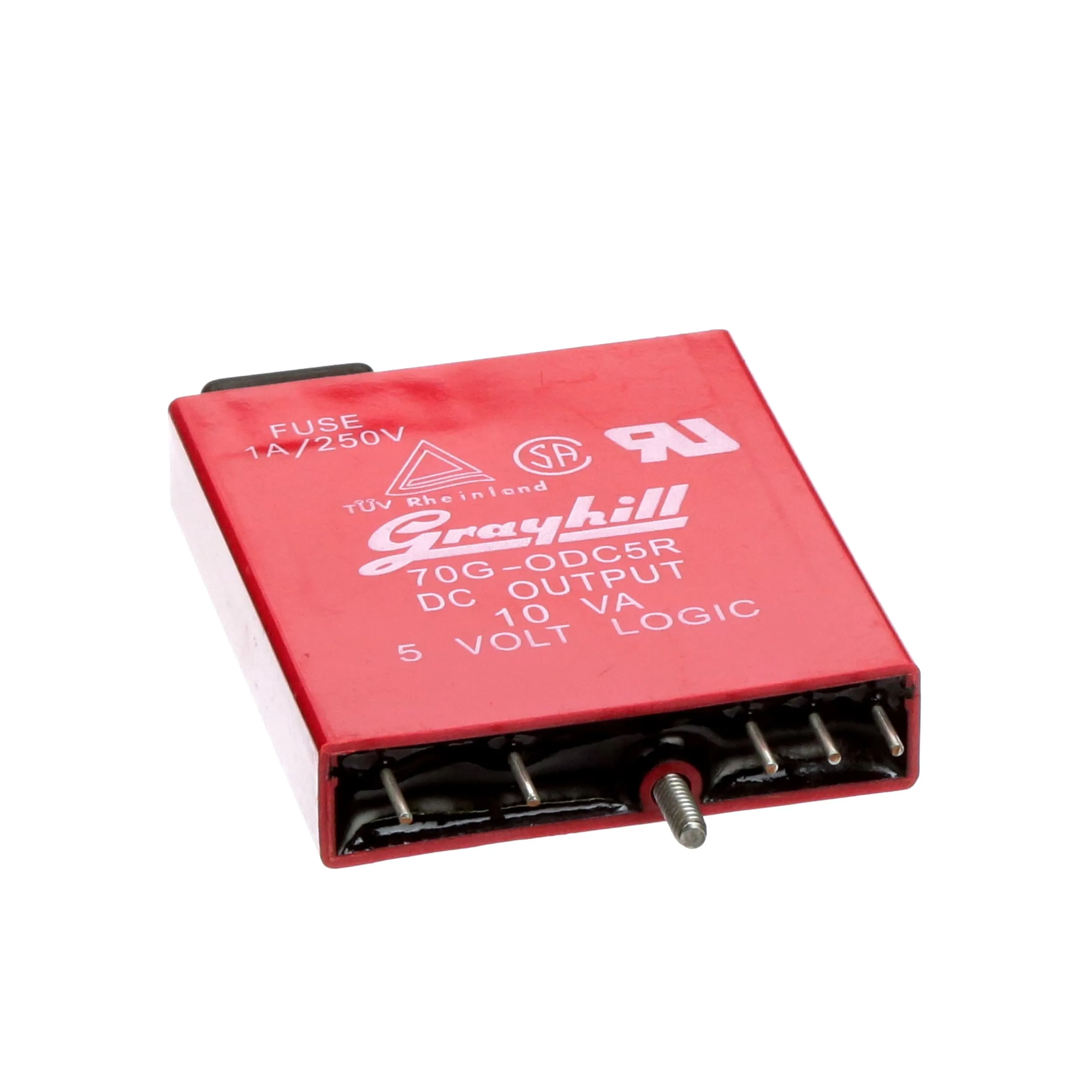

| Product Attribute | Attribute Value |
|---|---|
| Application | Control Systems ; Data Acquisition ; Monitoring |
| Clamping Voltage | 80 VDC |
| Color | Red |
| Connection to Host | Board Mount |
| Contact Form | SPST-Normally Open |
| Current, Leakage | 0.01 mA |
| Depth | 0.46" (11.7mm) |
| Dimensions | 1.9 x 2.2 x 0.46 In. |
| For Use With | Industrial Control & Data Acquisition Products |
| Input Current | 10 mA |
| Isolation Voltage | 1500 VAC |
| Length | 1.9" (48.26mm) |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -40 °C |
| Module Type | DC Output |
| Mounting Type | 5 Pin I/O Mounting Board |
| Number of Channels | 1 |
| Number of I/O Ports | 1 |
| Operating Temperature | -40 to 100 °C |
| Output | 0 to 100/0 to 120 VDC |
| Output Type | Digital |
| Output, Range | 0 to 100/0 to 120 VDC |
| Power Dissipation | 1 W⁄A (Typ.) |
| Primary Type | Control |
| Product Header | Dry Contact Output Module |
| Resistance, Input | 150 Ohms |
| Series | |
| Special Features | 1500 Vac Isolation ; Built-in Status LED ; No Off-State Leakage Current for DC Loads ; SPST Normally Open ; Switch AC or DC with the Same Module ; Very Low Off-State Leakage Current for AC Loads |
| Standards | UL, CSA, CE, TUV Certified |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | -40 to 70 °C |
| Time, Turn-Off | 500 μS |
| Time, Turn-On | 1 ms |
| Type | Output |
| Voltage, Operating | 60 VDC (Max.) |
| Width | 2.2" (55.9mm) |
Overview
Grayhill offers standard, mini, and G5 sized digital I/O modules, compatible with its industrial control and data acquisition products. Our line of pluggable input and output modules provide a versatile method for interconnecting real world digital signals to data acquisition, monitoring, or control systems. All modules provide an optically isolated barrier between sensitive microprocessor or digital logic circuits and field power devices. In the G5 and OpenLine® packages, I/O modules are available with the same pin-out. This gives the flexibility of mixing and matching module types on the same mounting rack or base; making them perfect in applications which require interface to a variety of different sensors and loads.
The case color of the single point modules identify their function. The industry standard for single point I/O module case colors is: Digital AC output module = black case; Digital DC output module = red case; Digital AC input module = yellow case; Digital DC input module = white case.
