Product Description
-

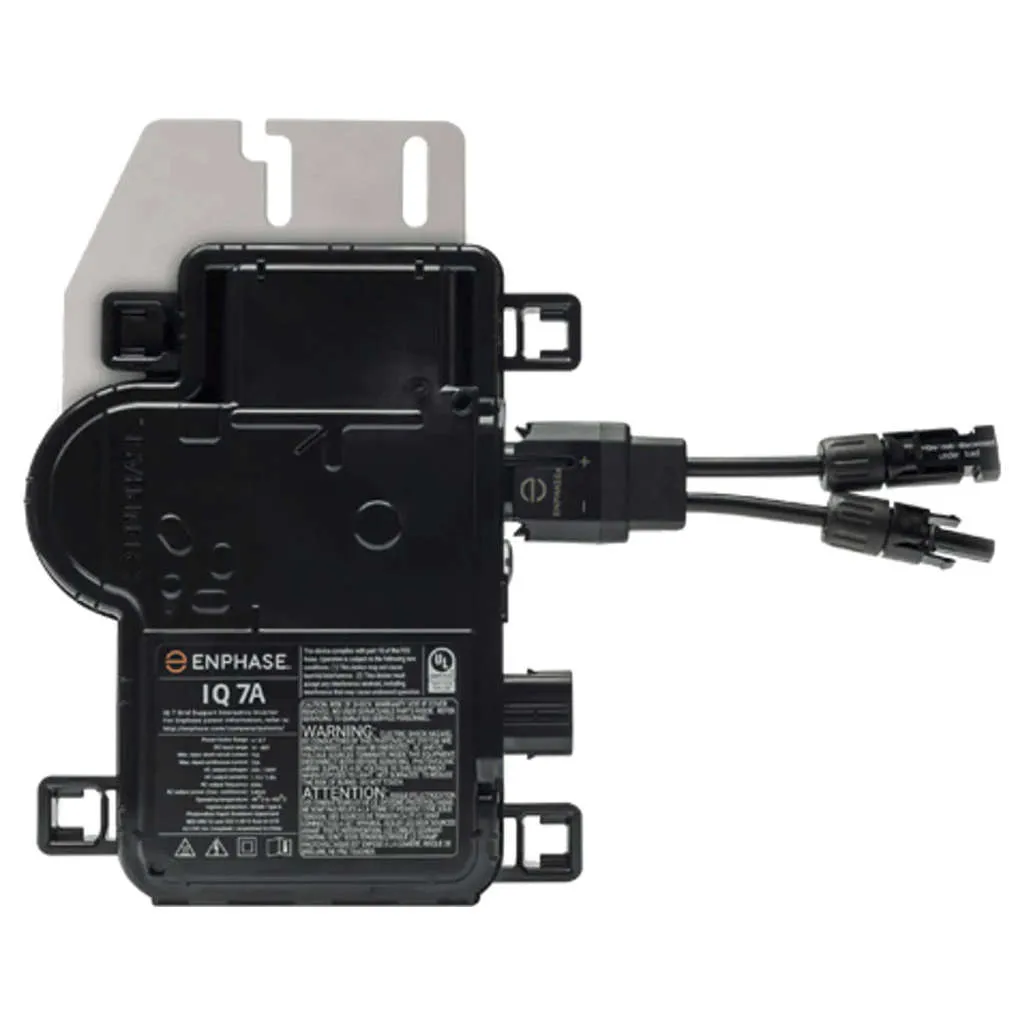

The high-powered smart grid-ready Enphase IQ 7A Micro dramatically simplifies the installation process while achieving the highest system efficiency for systems with 60-cell / 120-half-cell and 72-cell / 144-half-cell modules
-
Part of the Enphase IQ System, the IQ 7A Micro integrates with the Enphase Envoy-S, Enphase IQ
Battery, and the Enphase Enlighten monitoring and analysis software -
The IQ Series Microinverters extend the reliability standards set forth by previous generations and
undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading
warranty -
High Power
-
Peak output power 366 VA
-
Easy to Install
-
Lightweight and simple
-
Faster installation with improved, lighter two-wire cabling
-
Built-in rapid shutdown compliant
-
Efficient and Reliable
-
Optimized for high powered 60-cell / 120-half-cell and 72-cell / 144-half-cell modules
-
Highest EU efficiency of 96.5%
-
More than a million hours of testing
-
Class II double-insulated IP67 enclosure
-
Smart Grid Ready
-
Complies with advanced grid support, voltage and frequency ride-through requirements
-
Envoy and Internet connection required
-
Configurable for varying grid profiles
Product Specification
|
Brand |
Enphase |
|
Product Type |
Solar Microinverter |
|
Product Model |
IQ 7A |
|
Product Code |
ENPIQ7AIND |
|
Input (DC) |
IQ7A-72-2-INT |
|
Commonly Used Module Pairings |
295 W–460 W |
|
Module Compatibility |
60-cell / 120-half-cell and 72-cell / 144-half-cell modules |
|
Maximum Input DC Voltage |
58 V |
|
Pv Input Operating Voltage Range |
18 V–58 V |
|
Min/Max Start Voltage |
33 V / 58 V |
|
Max DC Short Circuit Current (Module Isc) |
15 A |
|
Overvoltage Class DC Port |
II |
|
DC Port Backfeed Current |
0 A |
|
Output (AC) |
|
|
Peak Output Power |
366 VA |
|
Maximum Continuous Output Power |
349 VA |
|
Nominal (L-N) Voltage/Range |
230 V / 219–264 V |
|
Maximum Continuous Output Current |
1.52 A |
|
Nominal Frequency |
50 Hz |
|
Extended Frequency Range |
45–55 Hz |
|
AC Short Circuit Fault Current Over 3 Cycles |
5.8 Arms |
|
Maximum Units Per 20 A (L-N) Branch Circuit |
11 (single-phase) |
|
Overvoltage Class AC Port |
III |
|
AC Port Backfeed Current |
18 mA |
|
Power Factor Setting |
1.0 |
|
Power Factor (Adjustable) |
0.8 leading ... 0.8 lagging |
|
Efficiency |
|
|
En 50530 (EU) Weighted Efficiency |
96.5 % |
|
Mechanical |
|
|
Ambient Temperature Range |
-40ºC to 60ºC |
|
Relative Humidity Range |
Enphase Solar Microinveter IQ 7A ENPIQ7AIND$ 59.19 $ 45.53 Please select combo product attributes
