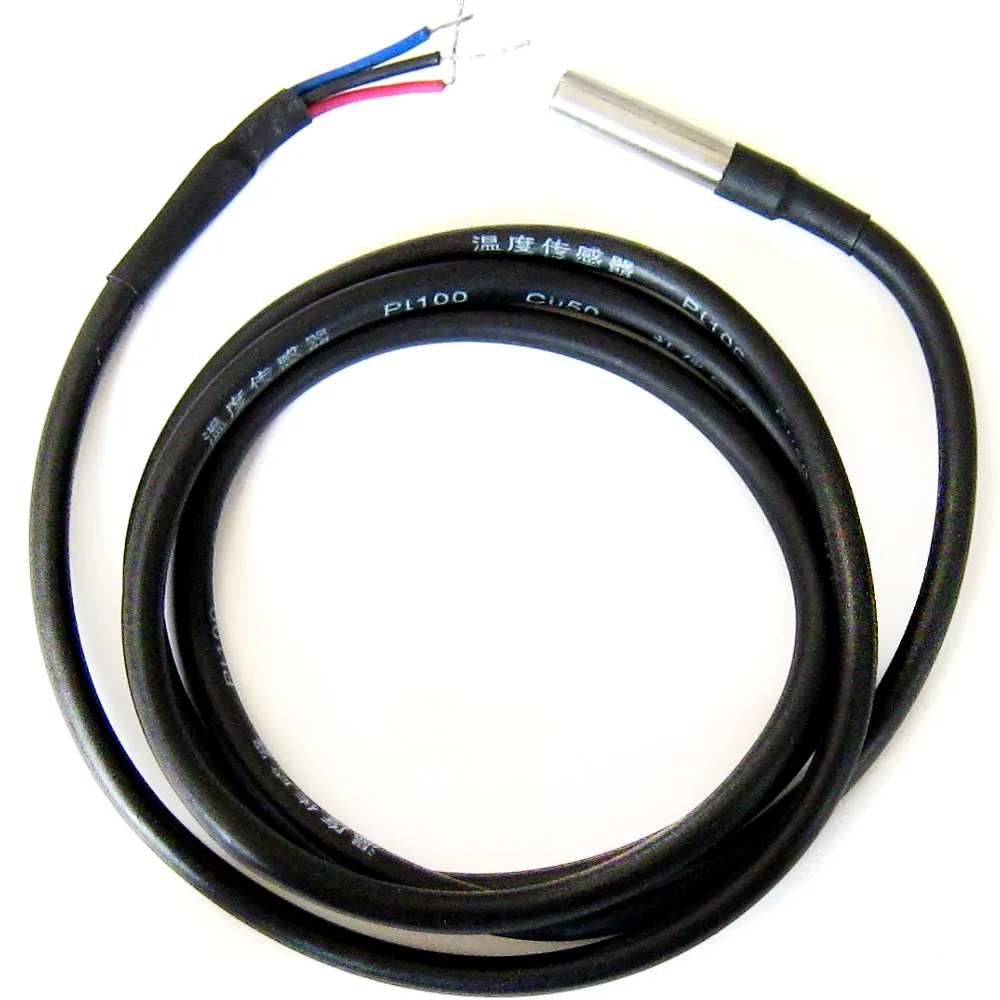

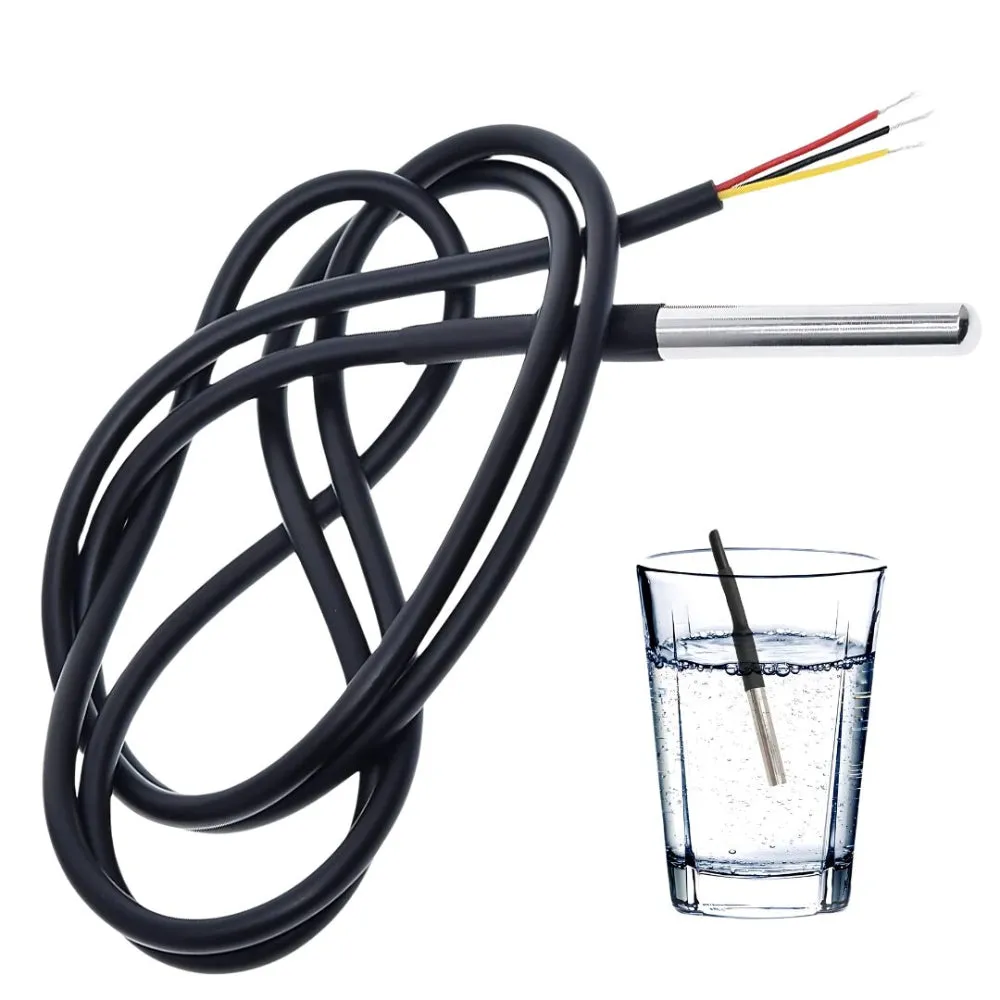

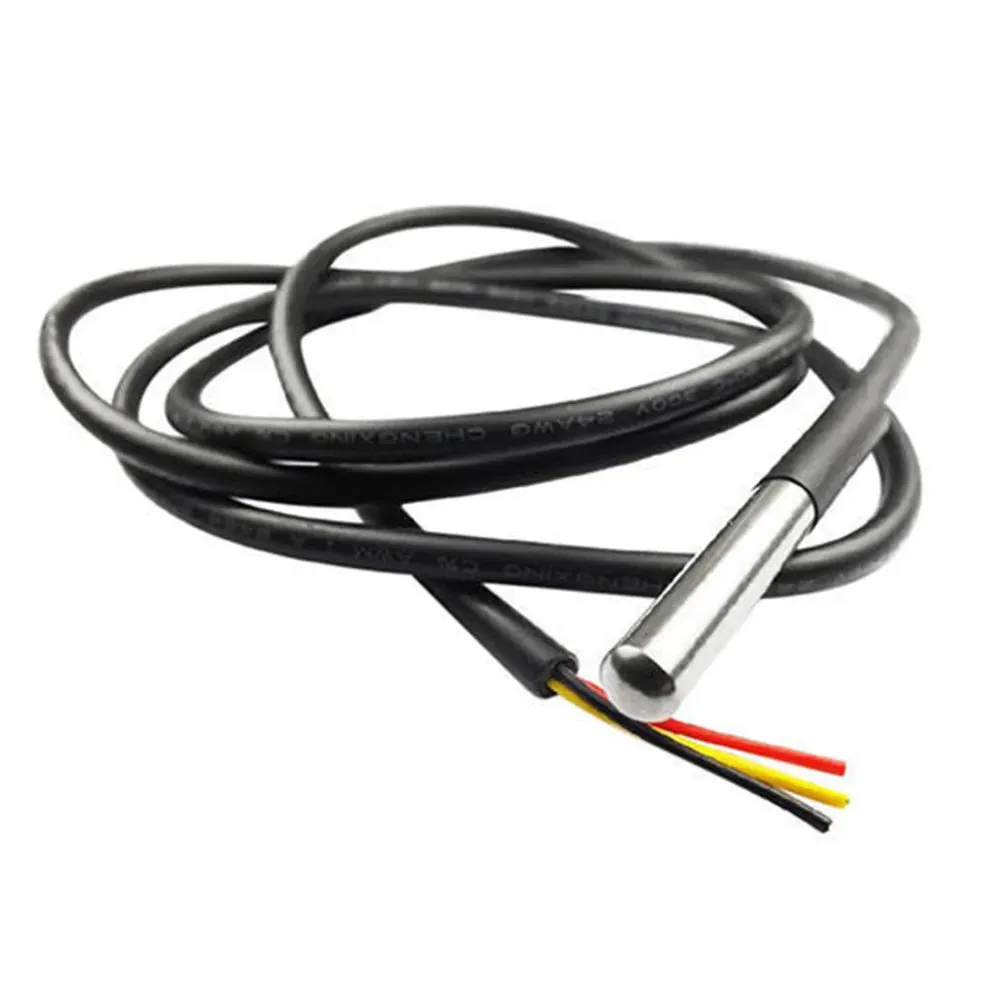

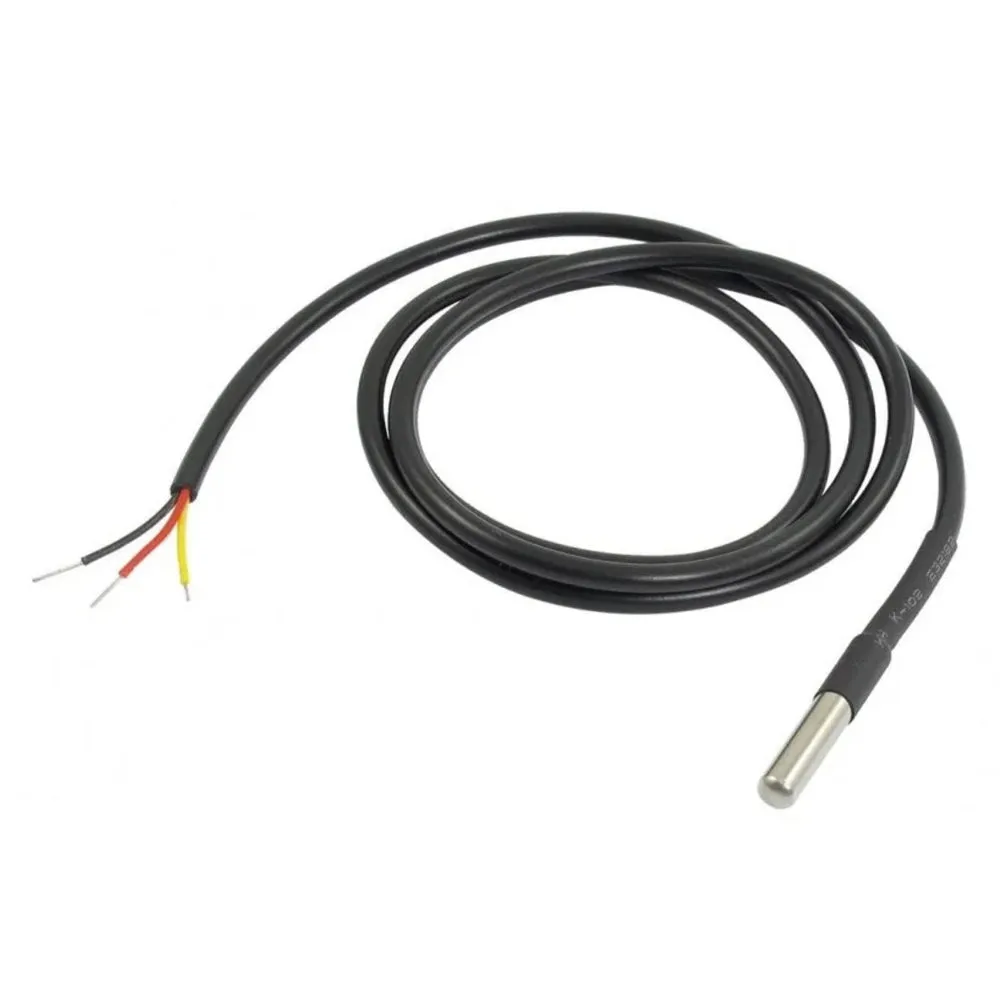

DS18B20 Waterproof Digital Temperature Sensor

The DS18B20 Waterproof Temperature Sensor Probe is based on the DS18B20 sensor, making it ideal for measuring temperatures in remote or wet conditions. Its digital design ensures no signal degradation over long distances.

These 1-Wire digital temperature sensors offer good accuracy (±0.5°C over a wide range) and provide up to 12 bits of resolution from the onboard digital-to-analog converter.

They work well with any microcontroller using a single digital pin, and you can connect multiple sensors to the same pin, as each one has a unique 64-bit ID programmed at the factory for easy identification. Compatible with 3.0-5.0V systems, the sensor requires a 4.7k resistor as a pull-up from the DATA pin to the VCC line when used with a microcontroller.

Technical Details

Model: DS18B20
Item Type: Probe
Model Type: Waterproof Temperature Probe
Rated Voltage: 3V to 5.5V
Temperature Range: -55°C to 125°C
Probe Diameter: 6mm
Probe Length: 50mm
Resolution: 9 ~ 12 bit
Query Time: 750ms
Cable Length: 1m

Features

Heat-Shrinkable Tube on Each Pin to Prevent Short Circuits
Internal Sealing Glue for Waterproof and Moisture-Proof Protection
Stainless Steel Tube Encapsulation for Rust Prevention
Probe Dimensions: 6mm Diameter, 30mm Length
Equipped with Original DS18B20 Temperature Sensor Chip
Stainless Steel Shell (6 x 45mm), Lead Length 100cm (Shielding Wire)
No External Components Required, Unique Single Bus

Pin Description:

Red: VCC/VDD
Yellow/White: DATA
Black: GND

Applications :

Aquarium Temperature Monitoring: Monitors water temperature for fish tanks.
Weather Stations: Measures outdoor temperatures for weather data collection.
Home Automation: Integrates into smart home systems for temperature control.
Industrial Applications: Monitors temperature in machinery, pipes, and equipment.
Agriculture: Tracks soil or greenhouse temperatures for plant growth.
HVAC Systems: Used for monitoring and regulating heating, ventilation, and air conditioning.
Automotive: Monitors engine or battery temperature in vehicles.
Food and Beverage: Ensures proper temperature in refrigerators, freezers, and ovens.
Laboratories: Used in experiments or processes requiring temperature control.
IoT Projects: Integrated into custom temperature-monitoring systems for remote sensing.
