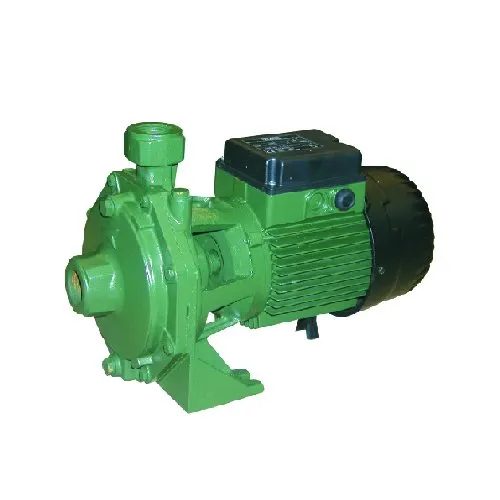

DAB K Series Single Stage Twin Impeller Pumps

Twin stage pumps for high head applications. Ideal for rivers, tanks and dams. Ideal for irrigation and lawn watering applications. Constructed from high quality Cast iron for corrosion resistance.

Stainless steel driving shaft. Carbon/ceramic mechanical seal. Asynchronous, closed motor, cooled by external ventilation. Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version. For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force.

Aplications

•  Designed for use in pressurisation units for water supply systems
•  Designed for supplying pressurised tanks
• Suitable also for sprinkling irrigation and other water supply applications.

Features

• Cast iron pump body and motor support
• Technopolymer or cast iron impeller
• Carbon/ceramic mechanical seal
• Induction motor, closed and cooled with external ventilation
• Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life
• Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version
• Three-phase motors should be protected with a suitable overload protection complying with the regulations in force
