Description

Key V-SYSTEM Benefits: This system has several benefits such as direct nutrient distribution, maximum oxygen saturation, no need for an air pump, and no heat transferred, amongst others. Additionally, it provides a vortex fluid motion, is naturally aspirated, supports large plants, and allows pots and system to completely drain. Also, it aims at preventing root clogging and it's entirely made in Britain.

Key V-SYSTEM Features: This V-SYSTEM comprises a 15 gallon (58L) V-POT, a water fill line, total-drainage bases, venturi injectors, and inspection covers. Also, it includes 5" spiral tubing, dual-flow fittings, and integrated filtration. To ensure a secure connection and durability, it is equipped with T304 stainless clamps, heavy-duty components, and push-fit feed connections. Lastly, it includes a JET-STREAM Vortex pump for efficient performance.

Specifications

Manufacturer: V-SYSTEM

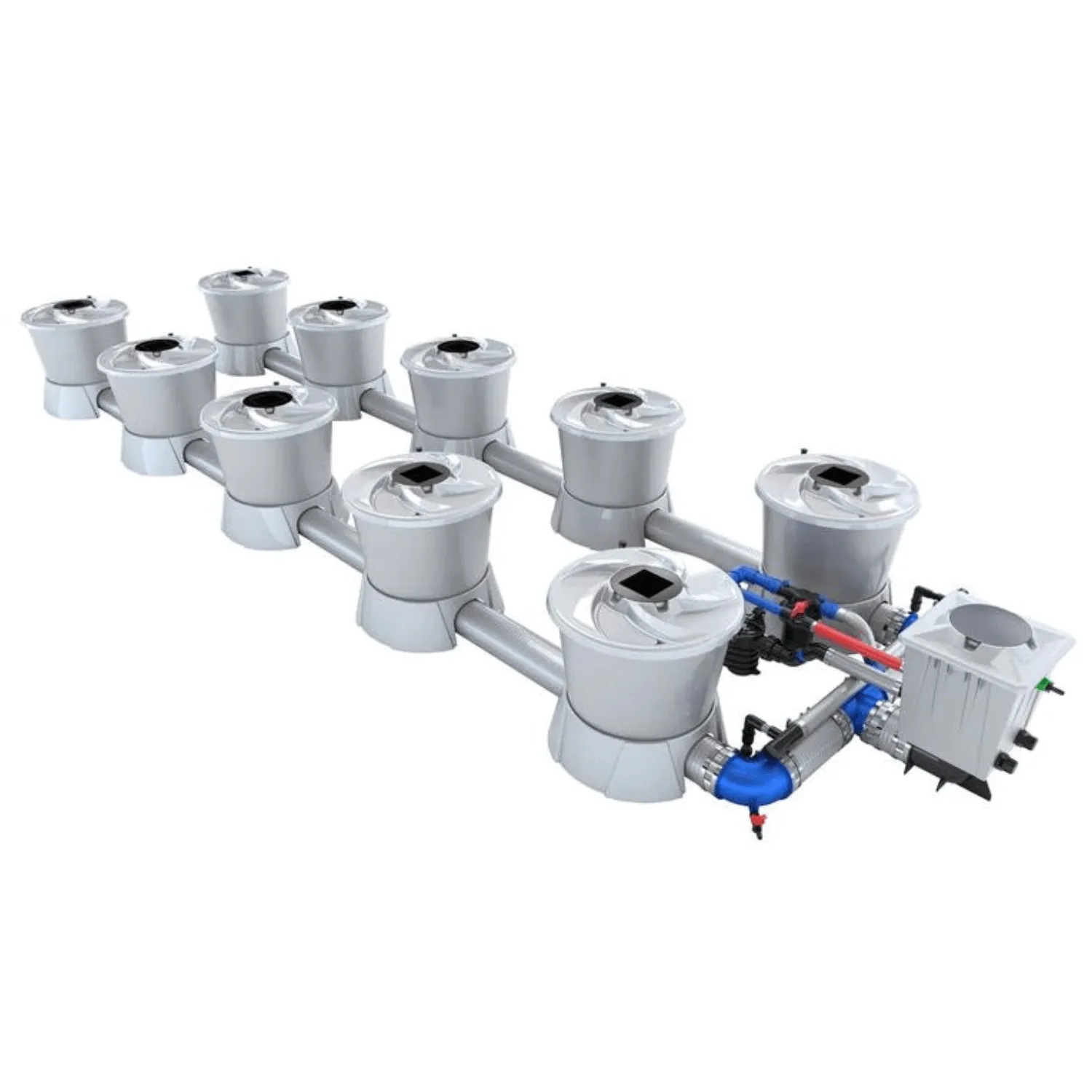

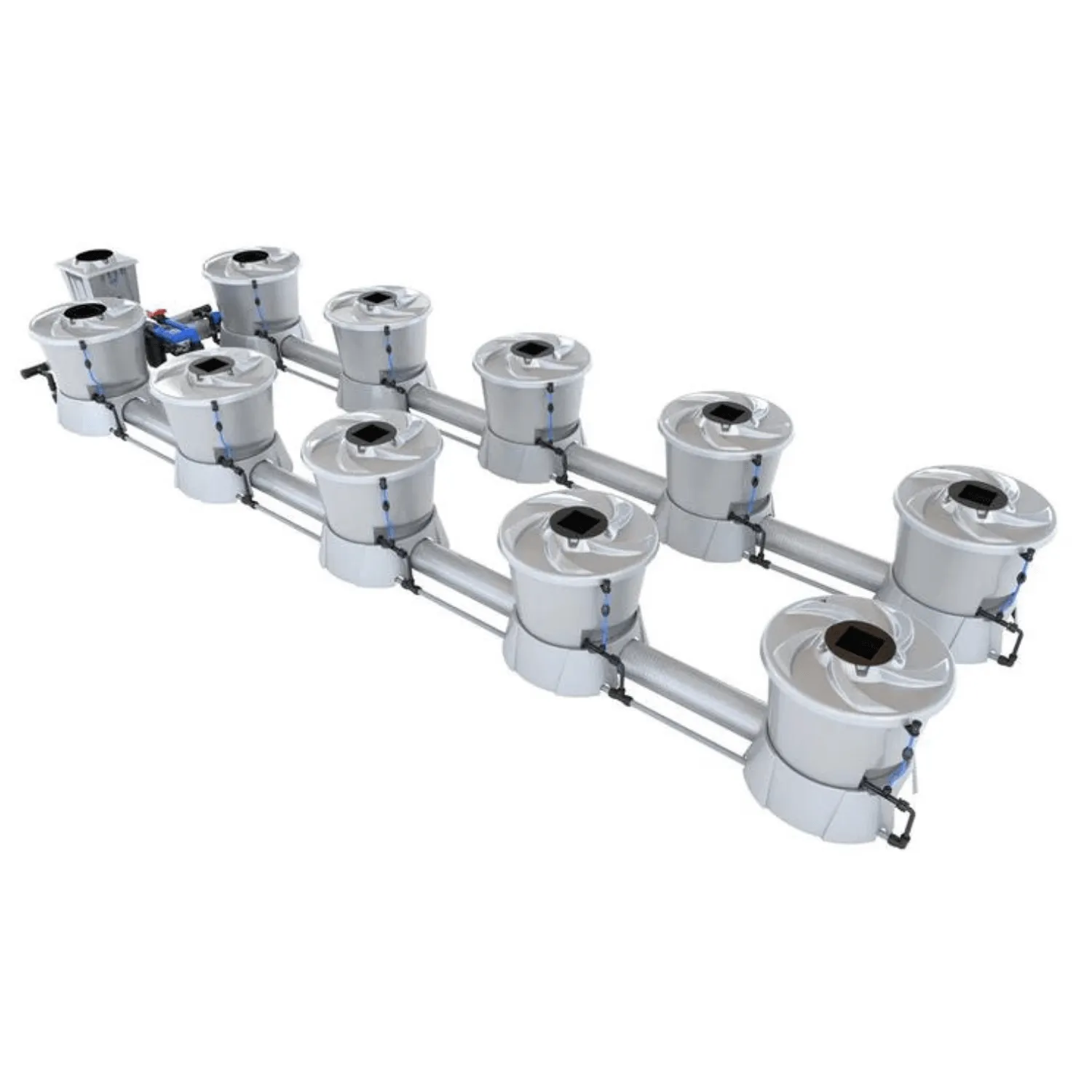

Product Name: 10 Pot 2 Row Kit

Technical Information

Number of pots: 10

Number of rows: 2

Kit total fluid volume: 161.9 gallons (613 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 10' 2.4" (122.4 inches / 3110 mm)

Width: 3' 11.2" (47.2 inches / 1200 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

Wattage: 370 watts

Flow Rate: 3487 gal/hr (13200 L/hr)

Recommended water chiller minimum capacity: 264 gallons (1000 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 10 Pot 2 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

10 x V-Pot 58L

10 x V-Pot Base

10 x V-Pot Lid

10 x V-Pot Lid Inspection Cover

10 x Square Net Pot

10 x V-Pot Clip

10 x Air Filter for V-SYSTEM Venturi, 6mm

10 x Silencer for Venturi

10 x Venturi Fitting

10 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

10 x Venturi Inlet Fitting for 22mm Pipe

11 x Nut 5"

11 x Washer 5" Green Silicone

26 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

2 x DM Push-Fit Elbow 22-15mm V-SYSTEM

2 x DM Push-Fit Elbow 22mm V-SYSTEM

8 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

3 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

10 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

3 x Pipe 40mm Silver 1 Meter Spiral

11 x Pipe 5" Silver Spiral 80cm

1 x Tee 5" Barbed

8 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Long

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Right 40mm

24 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

8 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

3 x Silicone Grease - Food Grade
